Compact Tracked Loader

A compact tracked loader featured powered tread, raised and tilted bucket with dual pivot boom in very small volume. With building instructions.

Direct purchase of the instructions

Compact Tracked Loader
5,00  -Excl. Tax
A LEGO Technic compact tracked loader, with motorized tracks, raised / tilted bucket with dual pivot boom, in very small volume. Three supply controls available : Lego Power Functions, Sbricks or buwizz.

Preview of the instructions at the end of the article.


After making my last creation (Leaning Tricycle) using Buwizz, I wanted to re-test sbrick, as it never worked for me and my google phone since I have. And I was surprised that the dev team have made a update and it finally works on my asus phone ! So I would like to make a little creation to test it.


The idea was at first to build a small 4 motors creations to be controlled by the buwizz. But I do not want to make an other crawler or wheeled loader, so I add the challenge to make the smallest crawler loader I can.

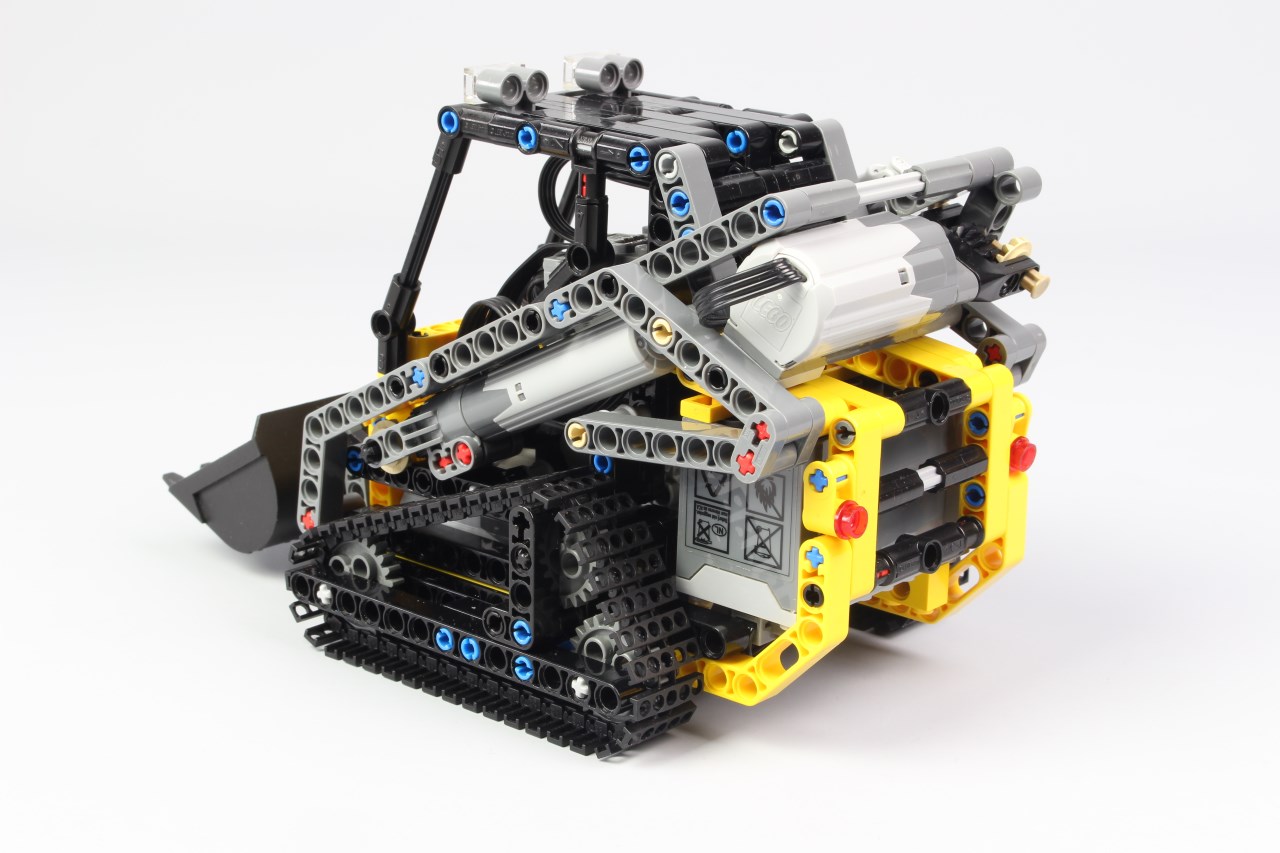

The tracked loaded is build using only M motor for the small size. 2 Of them are located in the chassis underneath the cabin and drive each track with 12/20t and 8/24 gearing ensuring a good speed with accurate control. Note on this picture that I have placed the battery box upside down in order to fit the wire.


The lifting of the boom is powered by a M-motor placed behind the drivetrain. It operates two linear actuators. Note that the model of inspiration was the John Deere 323 who has a interesting boom mechanism, composed of 2 links which differs from the classic Bobcat mechanism wich long rod. This mechanism enables here to have better travel for the bucket but also a better force repartition. In deed the load tends to pull the connecting rod in steel instead of the actuators. Here is in lego enables to have compact solutions and high travel.


The tilting of the bucket is at least powered by a M-Motor which drives a small linear actuator on the righ side. Then a system of lever and connecting rod ensuring the tilting of the bucket. At the begining I use worm screw and 8t gearing for tilting the bucket which was a more compact solution but was too fast and not accurate. Therefore this solution is a bit less compact but still have a better accuracy of position which is better for playbility.


To conclude, this moc is very compact and playable, with 4 functions in it, this is one of the smallest tracked loader in lego. I use lipo battery with sbrick, but this is also compatible with classic IR receiver (need 2 and there is enough room in the cab) or the buwizz instead of sbrick plus lego battery box. This model is not equipped with light but you can easily add it.

Buy this creation

You can purchase either the whole creation on the website Buildamoc including the Lego genuine parts + Buwizz and building instructions in PDF, or just the building instructions on

buildamoclogoWant to buy this creation ? The Compact Tracked Loader has been indexed to Buildamoc and is for sale. The whole package included the Lego genuine parts, Buwizz bricks to operated at distance (you will need a compatible smartphone), and the Pro rendering PDF building instructions.


Building Instructions

After making this small moc, I wanted to make the instructions in order to enable you to rebuild it because this is a good moc to play, one of the smallest loader and can be equipped with sbrick or buwizz or lego Ipower functions solutions. I have created consequently two building instructions. One for sale at 5€ with pro looking (like the official lego one), and one for free based on detail photo sequence. Therefore, you can buy it to support me, or just watch it for free, as you want.

Here is the complete bill of material in picture file :


But you can also checked it on rebrickable :

Want to know if you can build the Compact Tracked Loader ? The Compact Tracked Loader  has been indexed to rebrickable, check it !

Pro Instructions

You can buy the instructions with the following button for 5€. You can also buy other building instructions and get an automated discount. You will get 15% off for 2 PDF, and 20% off for 3 PDF on the total), available for all the instructions for sale on

See it on the shop :

Compact Tracked Loader
5,00  -Excl. Tax
A LEGO Technic compact tracked loader, with motorized tracks, raised / tilted bucket with dual pivot boom, in very small volume. Three supply controls available : Lego Power Functions, Sbricks or buwizz.

After your payment, you will be redirected to a page for downloading your instructions, and will receive also the link to download by email. Please check the spam box and be patient to receive it. If you have trouble to download your copy of the PDF after payment or open the document, do not make a paypal dispute, please contact me using the contact form. The link to download the instructions expires within 24h. Contact me if you have lost your instructions. Note that you can print it, but not copy or distribute. Thank you for supporting my work 🙂

Here is some preview of the building instructions :

Important note : the wires are not represented in this instruction. You can help you by watching the free photo sequence but the main point is to connect the motor on the receiver and put the rest of wire in the cab, nothing more complex.

Free Photo Sequence

Here is the photo sequence of dismanlting. You can download the Zip file here : lego-instructions-crawler-loader.pdf (13mo)
