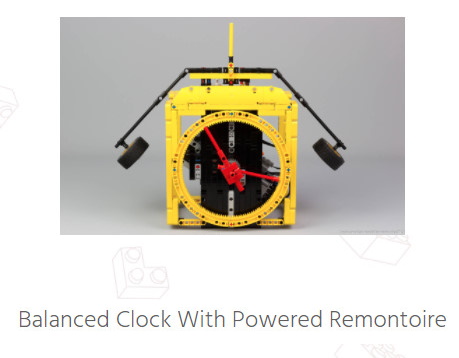

Balance Clock With Remontoire

A Lego Technic Balance Clock with Korfhage differential powered remontoire, with building instructions.


If you have already the parts : you can purchase the PDF instructions only on this page and build it with your LEGO parts. The instruction contains the partlist at the end, and you can check individually on Rebrickable, or in the instructions previews below.

If you do not have the parts, you can purchase the complete kit from two different retailers :

Direct purchase of the instructions


After building many clocks, I wanted to make a simple, reliable and with big autonomy clock, that is why I built the Galileo Clock. But after some years, I wanted to build a new clock, not simple and with a big autonomy, but with an interesting escapement and weight system. After some researches, and building many prototypes, here is the final result.


How does it work

I wanted from beginning to not use regular pendulum in order to display easily on a desk. I started study the flying pendulum clock but it was to hard to have a correct time keeping with only Lego (maybe for a next clock). Therefore I moved to a classic balance arm on a knife edge suspension (same as on my Galileo clock) with anchor escapement. As I wanted to keep simple the set up of the clock, I only made one setting per pallet, which is simpler than my Galileo clock but less efficient (and took many time to develop).


The other interesting system is weight system. I wanted first to use pullback motor, but despite the fact I have found a way to wind it without stopping the clock, the provided torque was so inconstant that the clock did not work properly. That is why I wanted after to use the battery box as the weight, I have put it on a rotary arm as the clock has to run on a desk (not room underneath). After some researches, I came to the differential idea to make the remontoire which has been patented by Edward Korfhage in 1952. You can see the principle in this gif :

Therefore, the weight (which is the battery box) is attached to the cage of the differential and give the main movement. Then, a planetary is connected to the clock drivetrain and the other planetary to the remontoire drivetrain. As the drivetrain is connected to the M-Motor with a worm gear, it is standstill. Therefore the torque is given to the clock when the weight fall.


The remontoire is operated by a switch mounted on the battery box. A lever is connected to the switch, and when the battery box falls, the lever gets in contact with a white end stop which activates the switch. The motor is then powered and the differential rotated in order to lift the battery box. The stop of this movement is made by an other white end stop which put the switch to its neutral position.

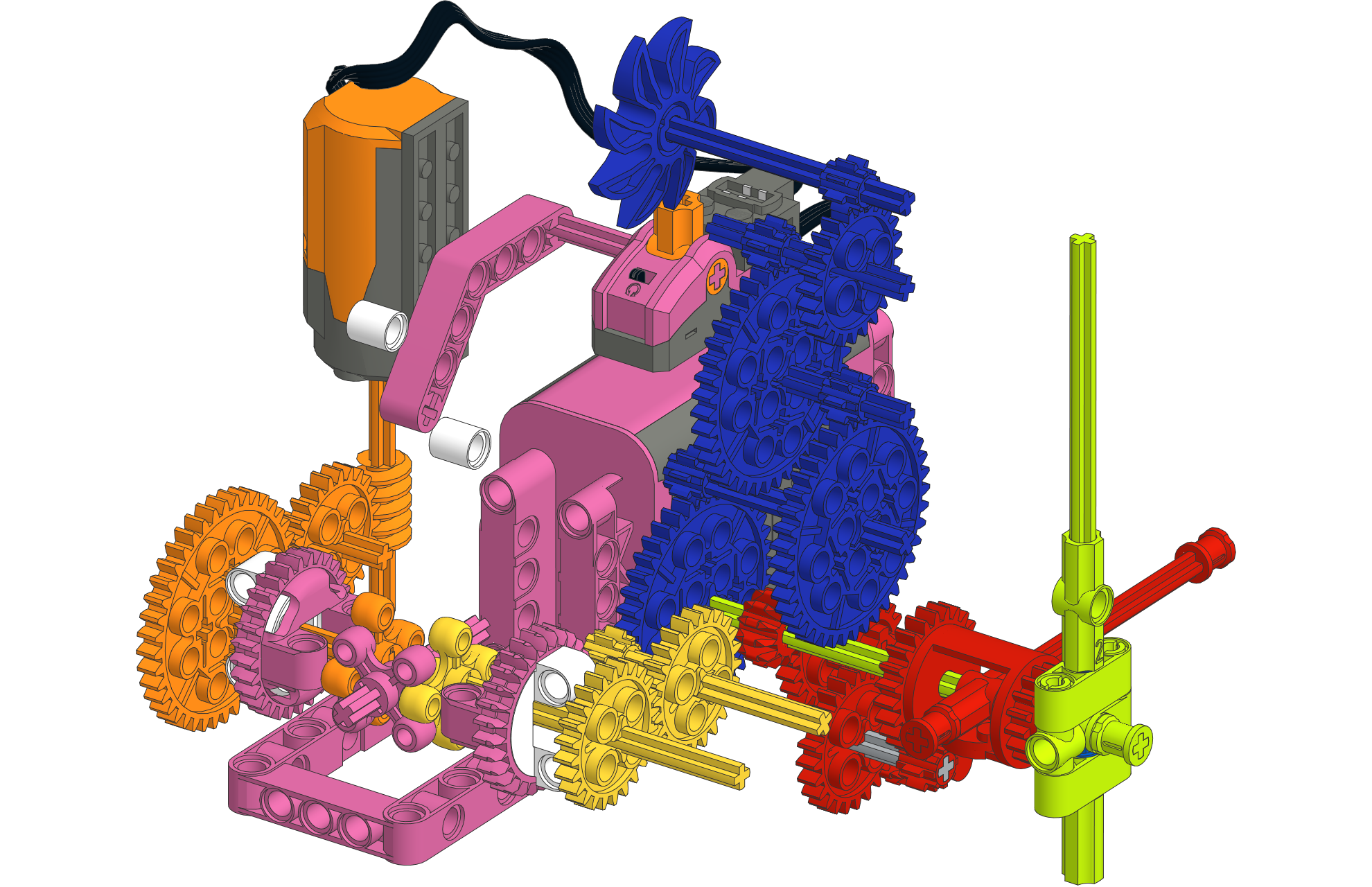

You can see below some simplifed colored view of the mecanism :


Talking with performance, there are good, but not very good.  The remontoire is operated every 5 minutes which may seem low but the angular displacement of the weight is also low comparing to a classic weight and drum system (with meters of rope).  I have used the highest gear ratio I can for having the maximum autonomy and enough torque to operate the escapement. The ratio between the escapement wheel and the minute hand is 5:1 x 5:1 x 5:1 x 3:1 = 375:1. The escapement wheel has 8 teeth, and the tic-tac duration is 1.2sec, therefore for each second which passes, the minute hand moves about : 1 / ( 375 * 8 teeth * 1.2 sec) = 1 : 3600 which is correct. The two wheels on the extremities on the balance arm can be moved to find the correct time of tic-tac. Of course the ratio between minute hand and hours hand is 1:12 made with 12:24 x 12:24 x 8:24 = 12:1


As I mentioned before, the pallet of the escapement has only one setting by pallet which is easy to setting, but of course not so efficient as a Galileo Escapement. Combining with the fact that the clock tends to speed up a little when the remontoire is powered, give a global accuracy in time keeping of about  1-5 minutes / 24h. I think the clock will run out battery before having many minutes of difference in some day.
