Manual Braiding Machine
Price range: 5,00 € through 59,00 € -Excl. Tax
A LEGO Technic braiding machine, with three counter-rotating reels and a pulling system to create a braided bracelets, powered by a manual crank.
Description
Video Presentation
How it works

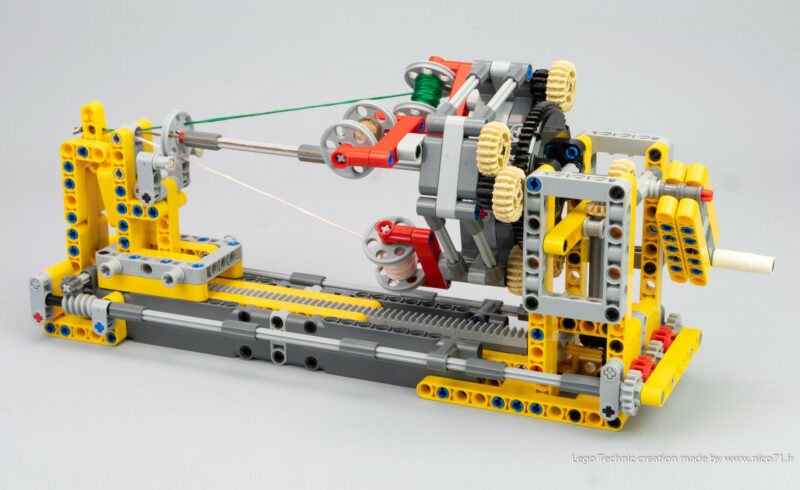

The machine is composed of three important elements : the counter rotative reels, the spinning spinneret and the main pull system. The counter rotative reel is made with a fixed turntable gear, where a 20t gear rolls and transmits motion to the reels with a 12/20 gearing reduction. It enables to not use chain links and change the gearing depending of the used raw material.

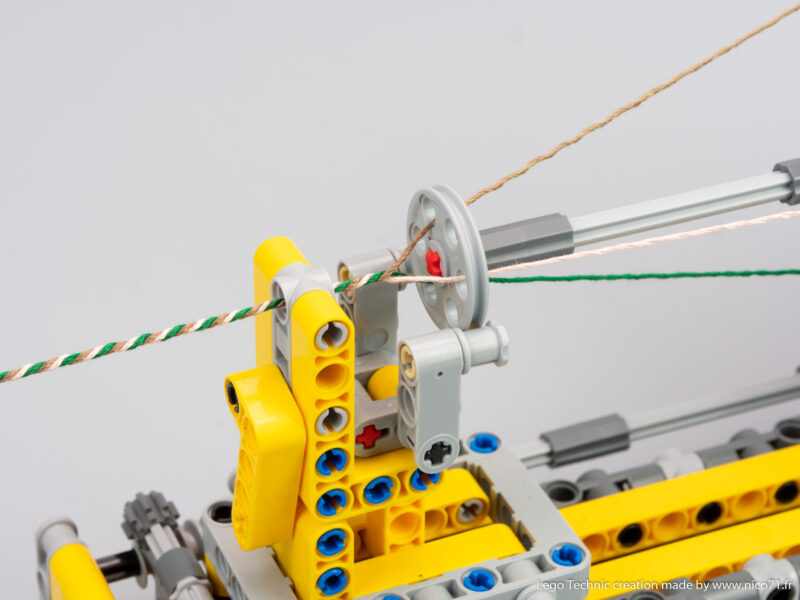

The spinning spinneret is a 6-holes pulley which rolls on two bushes for bracing it. It forces the three reels to match together in one weaved braid. As the reels turn in another direction, they tend to unwind tightly on the braid so that it does not come apart.

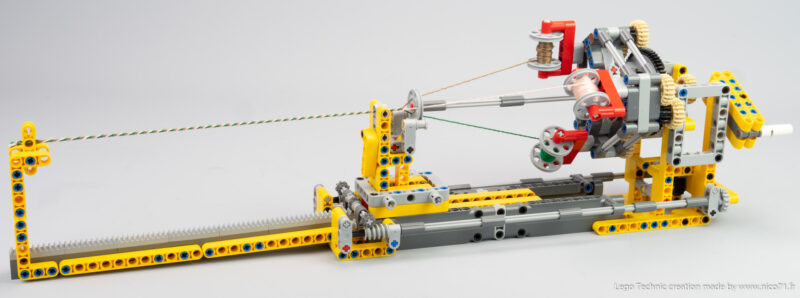

The pulling system is made with gearing and a sliding worm screw on each side, which operates a 8t gear on racks. It enables to shift the moment when the pulling system starts relative to the rotation of the reels and avoid unbraided start on the final braid.
You can read the full review of this model on my blog, or watch the Design Secret video on YouTube to know more about the design process.
How to build ?
📕 You only need the parts and the instructions. You can purchase the PDF instructions on this shop and build with your own parts.
🎁 If you want to purchase the LEGO parts + PDF instructions, have a look to my creator page or request a quote from :
- Using Genuine LEGO Parts : Available at Buildamoc
- Using non-Genuine LEGO Parts : See it if available on LesDIY Store
The instruction contains the partlist at the end, but you can check individually on Rebrickable, or in the instructions previews below.
I recommended to use milled embroidery threads like DMC but you can test with any other raw material. You only need to change the gearing accordingly (spare parts included in the bill of material).
About this product

Instructions preview
Additional information
| Model Size | 33cm (L) (52cm unfold) x 16cm (H) x 12cm (W) |
|---|---|
| Color | Gray, Yellow |
| Categories | All, Machine |
| Motorized | No |
| Building Difficulty | Easy |
| Piece Count | 420 |
| Bill Of Material | https://rebrickable.com/mocs/MOC-66908/Nico71/manual-braiding-machine/#parts |
| Purchased File | PDF Instructions (76 pages / 22 mo) |
