5,00 € -Excl. Tax
A LEGO Technic helicopter, features rotating and swiveling main rotor with joystick in the cockpit, and connected rotating tail rotor.
The frame supports all the components. The handle on the left is used to rotate the rotors. The mechanism of swiveling is composed of two main parts. The first is the part used for swivel on the right/left directions. It’s composed of a axle which pushes or pulls a 9L connecting rod connected to the main rotor. The second part is used to swivel on the forward/backward directions. It’s composed of a connecting rod 6L which pushes or pulls the slide system, and with a 45°-oriented liftarm transforms the movement to the main rotor.
You can read the full review of this model on the blogpost.
How to build ?

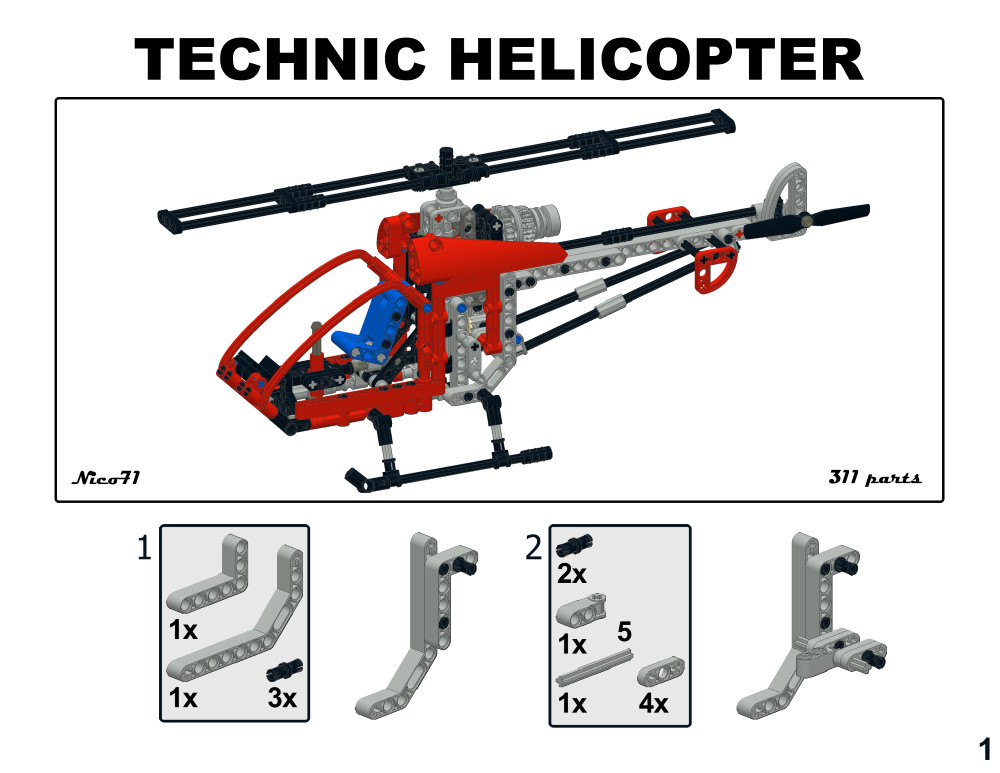

You can purchase the PDF instructions on this shop and build it with your LEGO parts. The instruction contains the partlist at the end, but you can check individually on Rebrickable or in the instructions preview below.
About this product
All, Construction Equipment
|Bill Of Material|
PDF instructions for the CVT truck (17 pages / 9mo)
