Remoted Lunar Roving Vehicle

A lego remoted moon rover, features drives, 2 axle steering, control with joystick and folding deployment system.

Direct purchase of the instructions

Lunar Rover
10,00  -Excl. Tax
A LEGO Technic remote controlled Lunar Rover, features 4x4 drives, 2 axle steering, controls with 2-axis joystick and folding deployment system.

 Preview of the instructions at the end of the article. Presentation Video (YouTube).


I wanted for a while to build a replica of the Lunar Roving Vehicle, I have tried many time with big scale, small scale, remoted or not, with the folding deployment system or not. And now I figure out to build a small scaling replica of the LRV. Features drives and steering connected to a joystick, many details and a deployment system.

IMG_5260

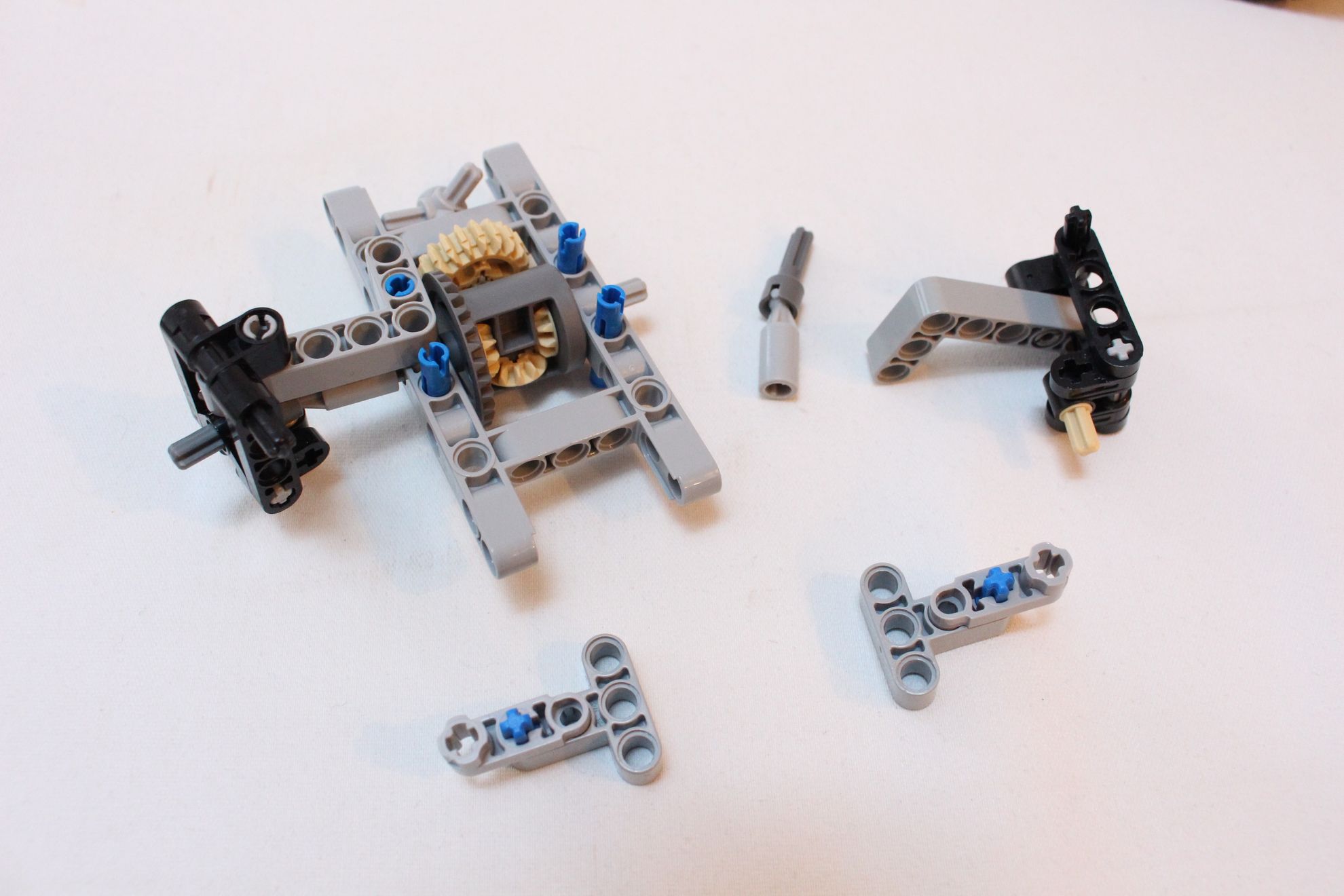

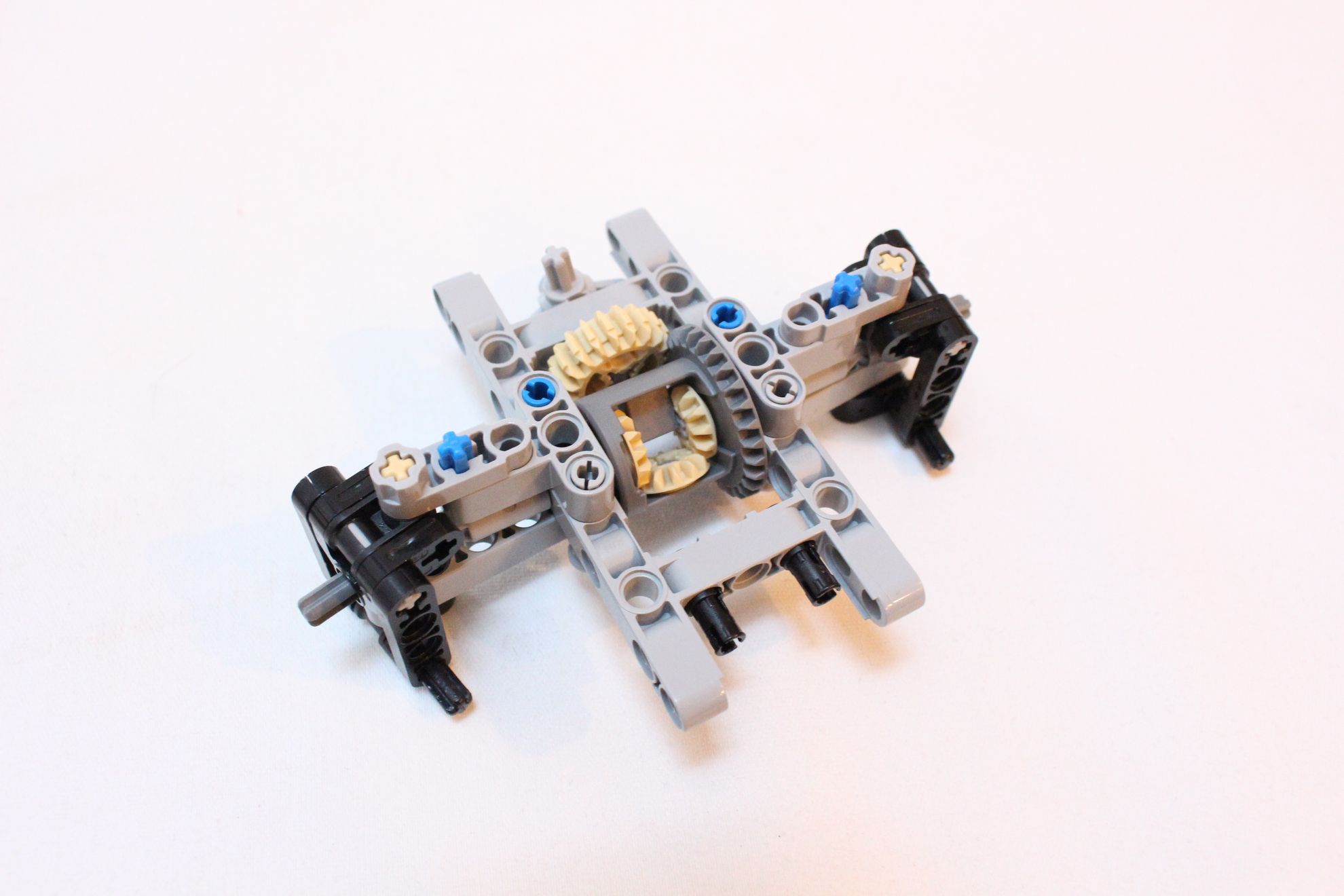

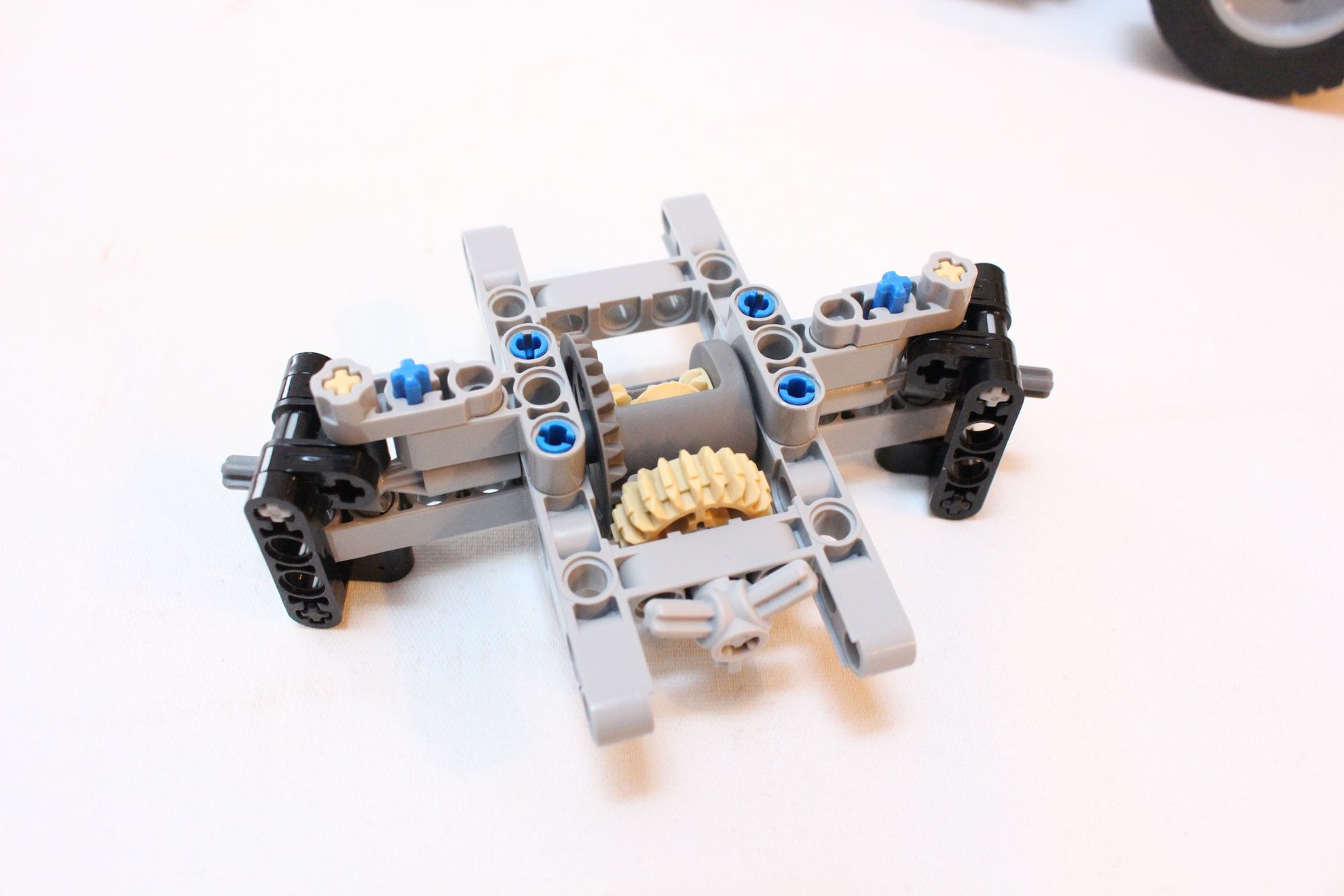

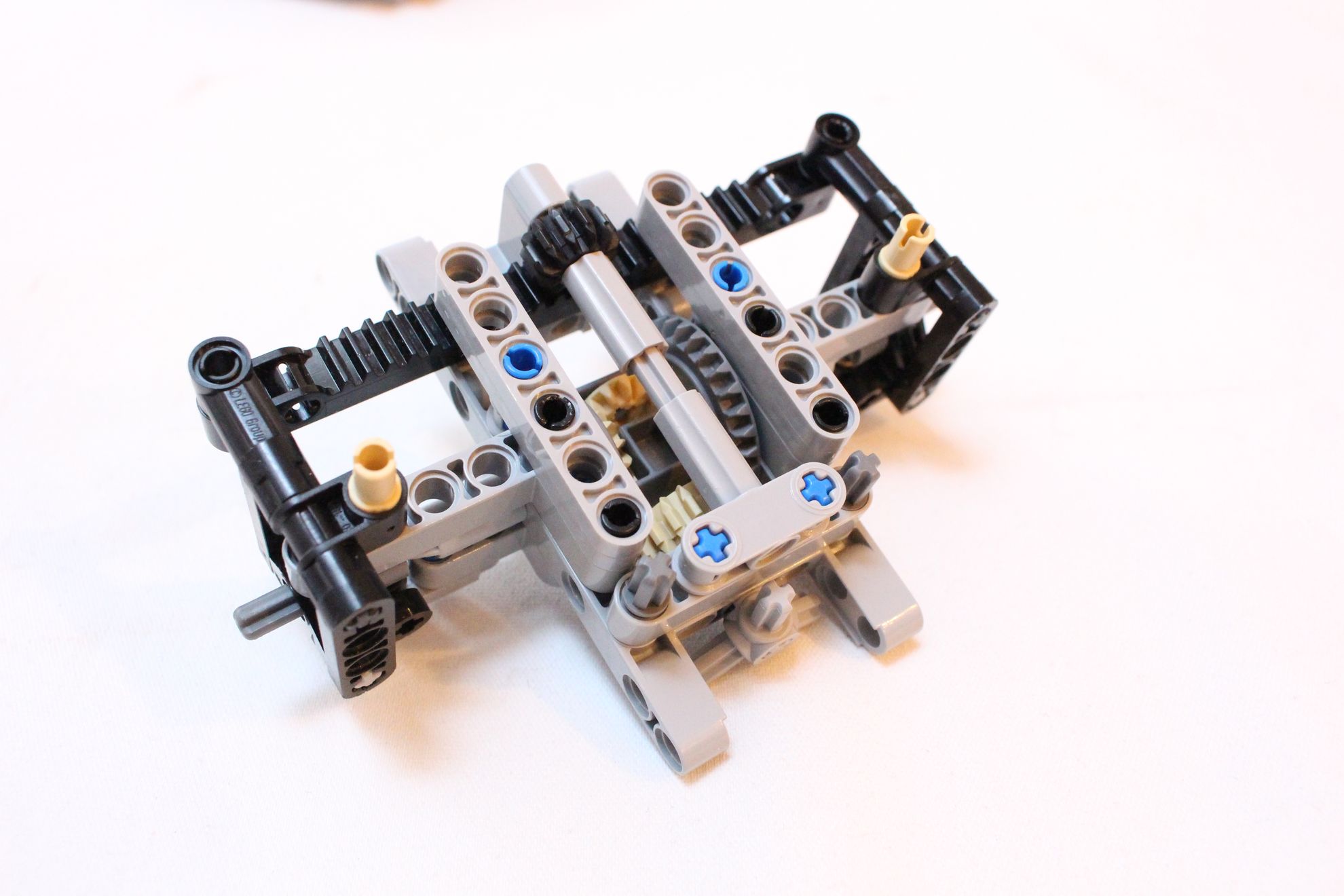

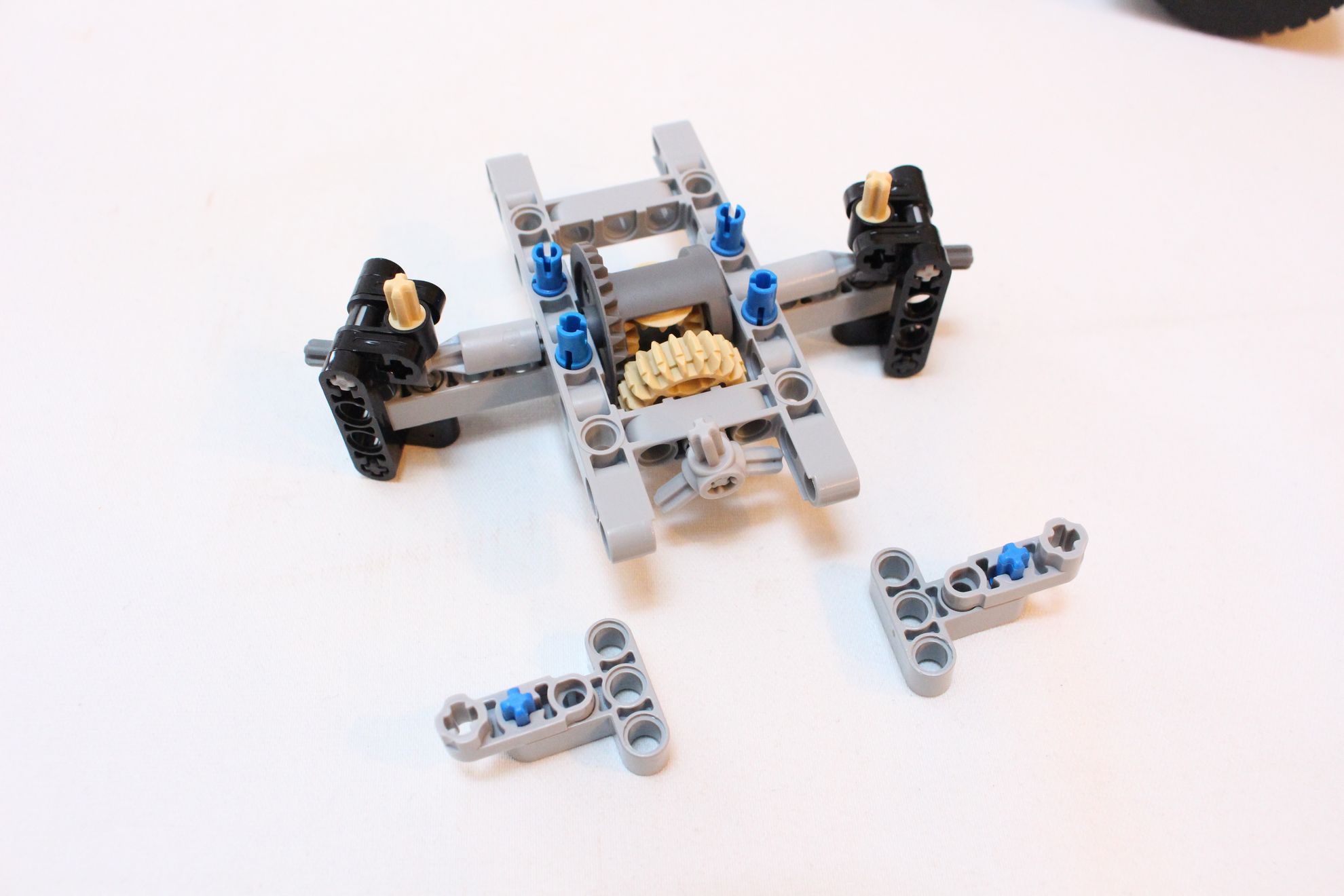

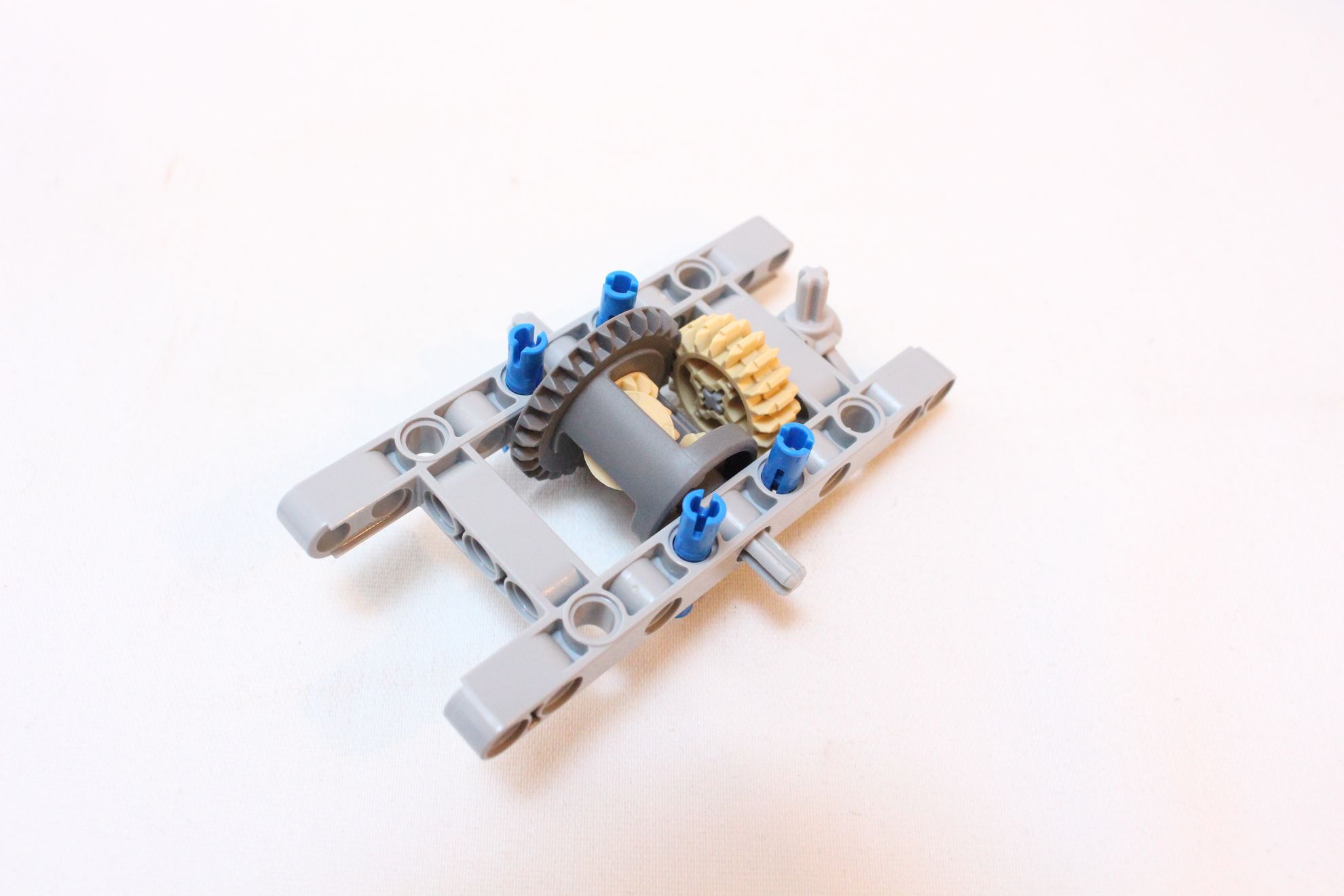

The LRV is powered by a L motor connected to two axle with no central differential as the both axle steer. There are a differential on each axle but no suspension due to the scale.

IMG_5261

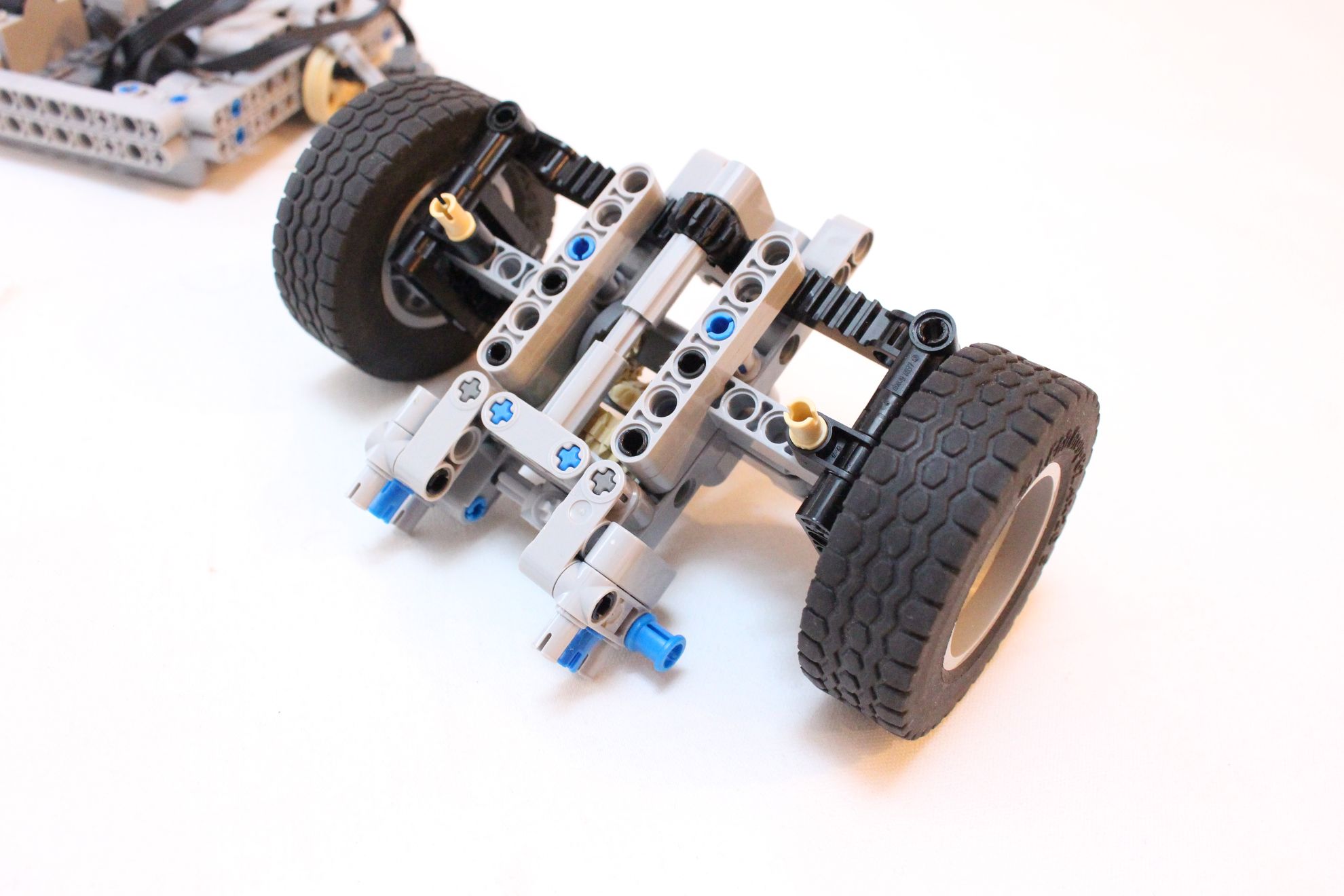

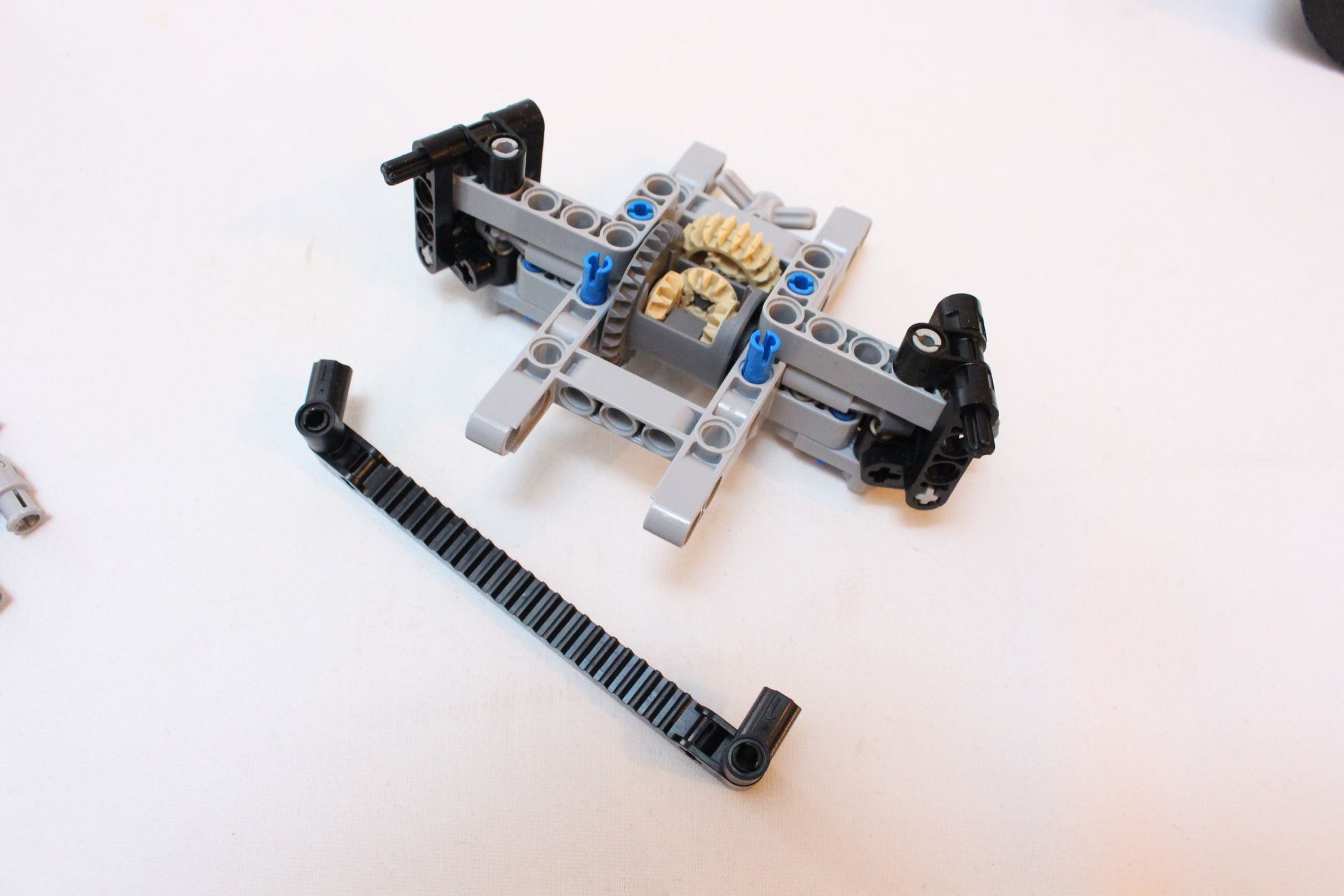

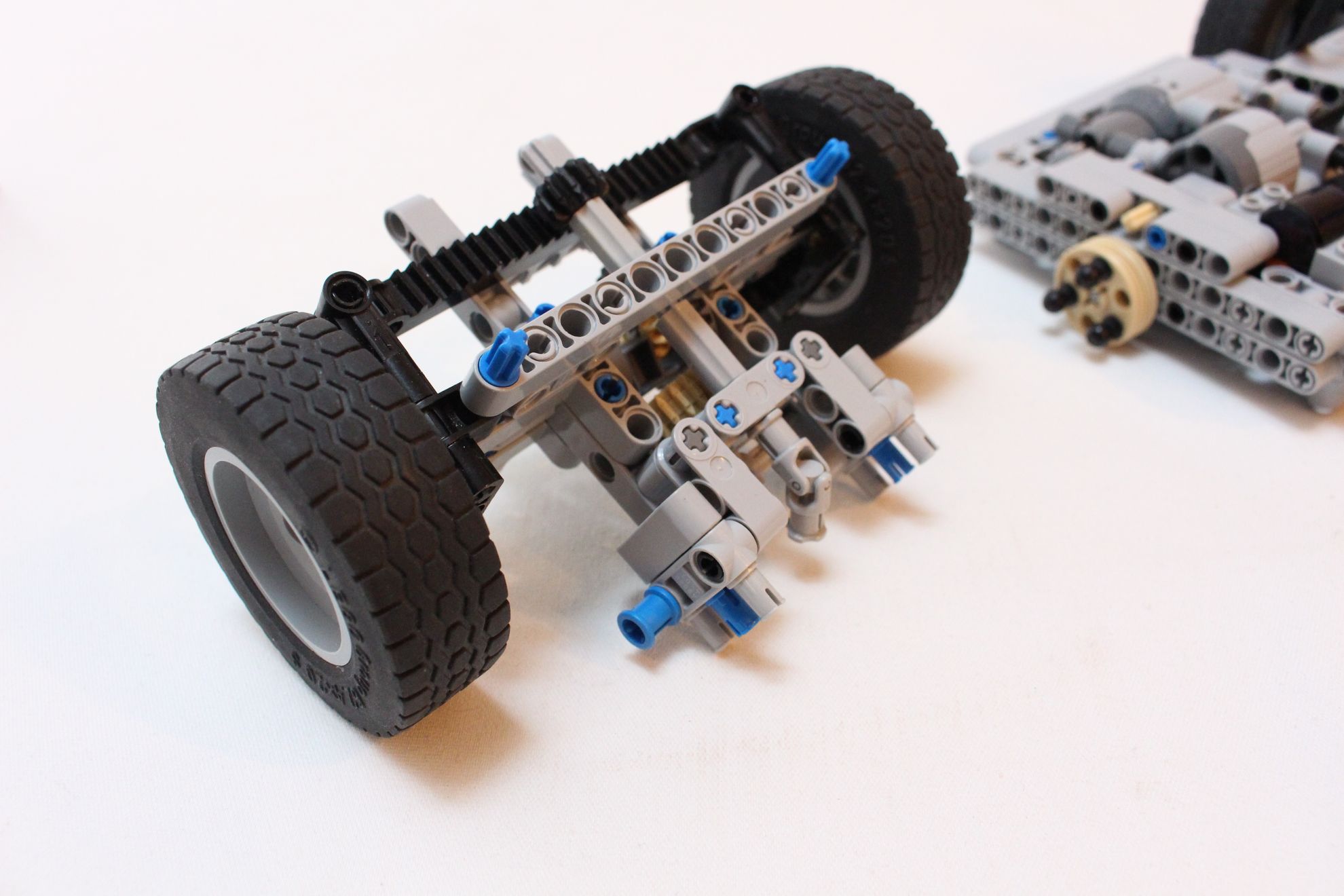

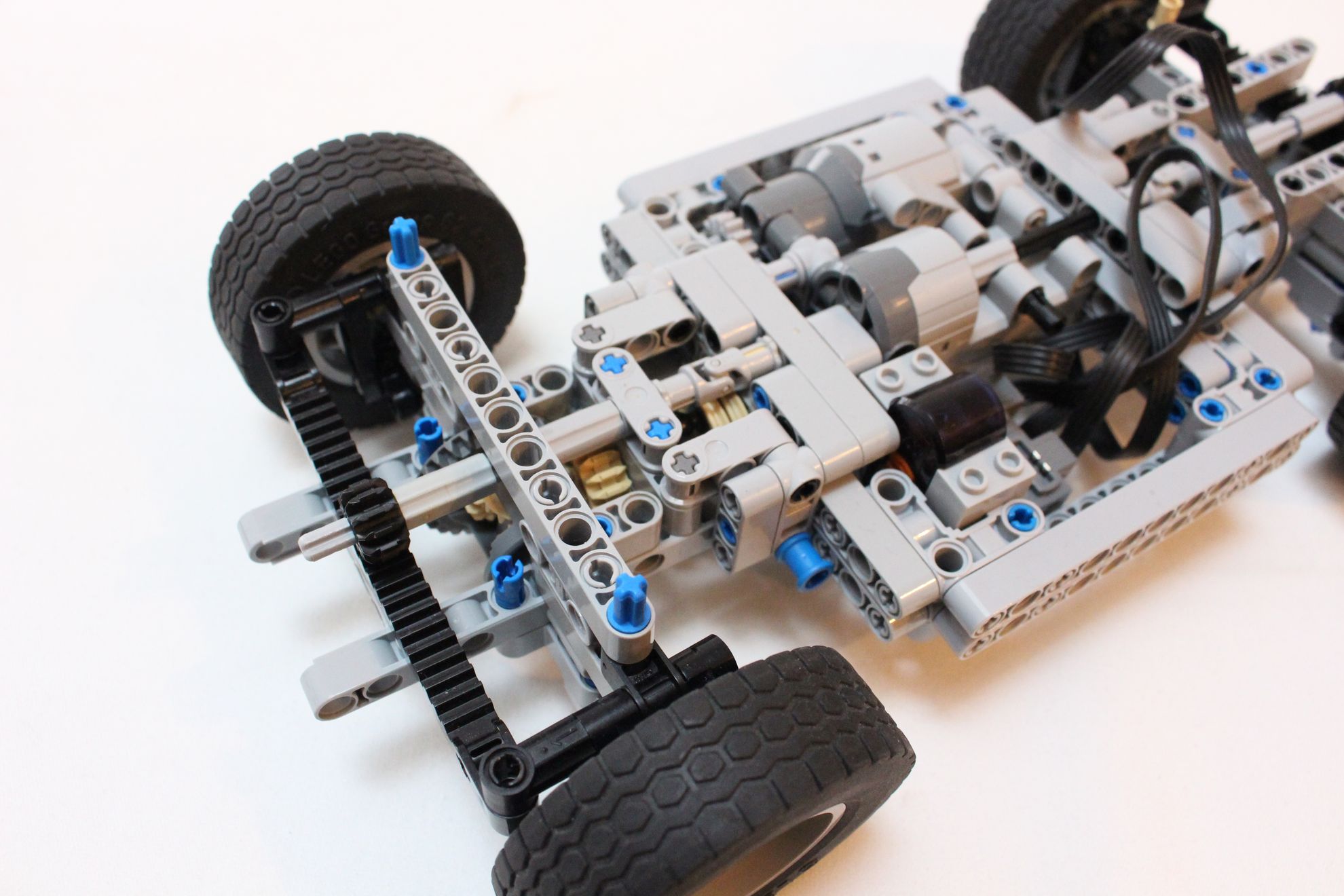

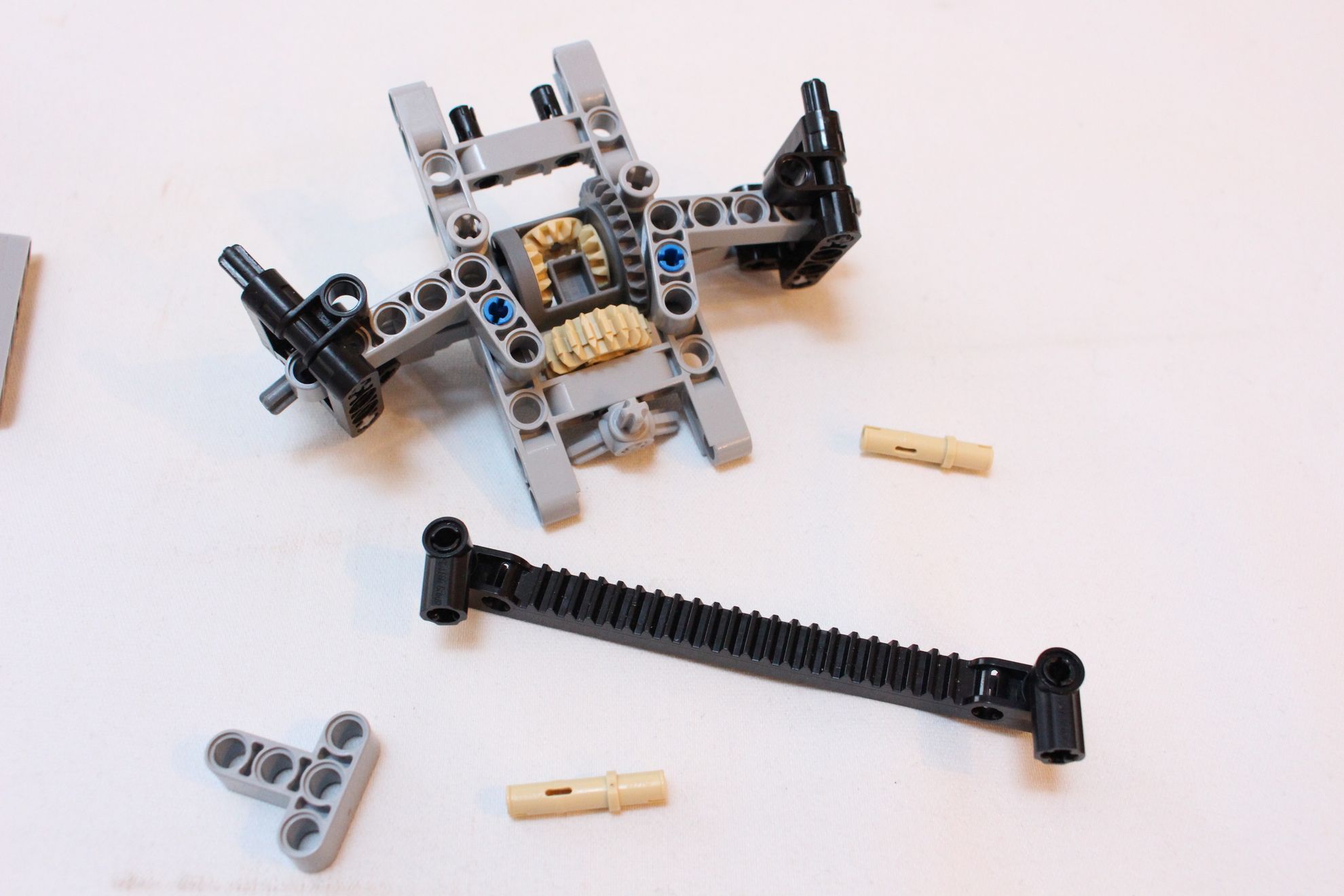

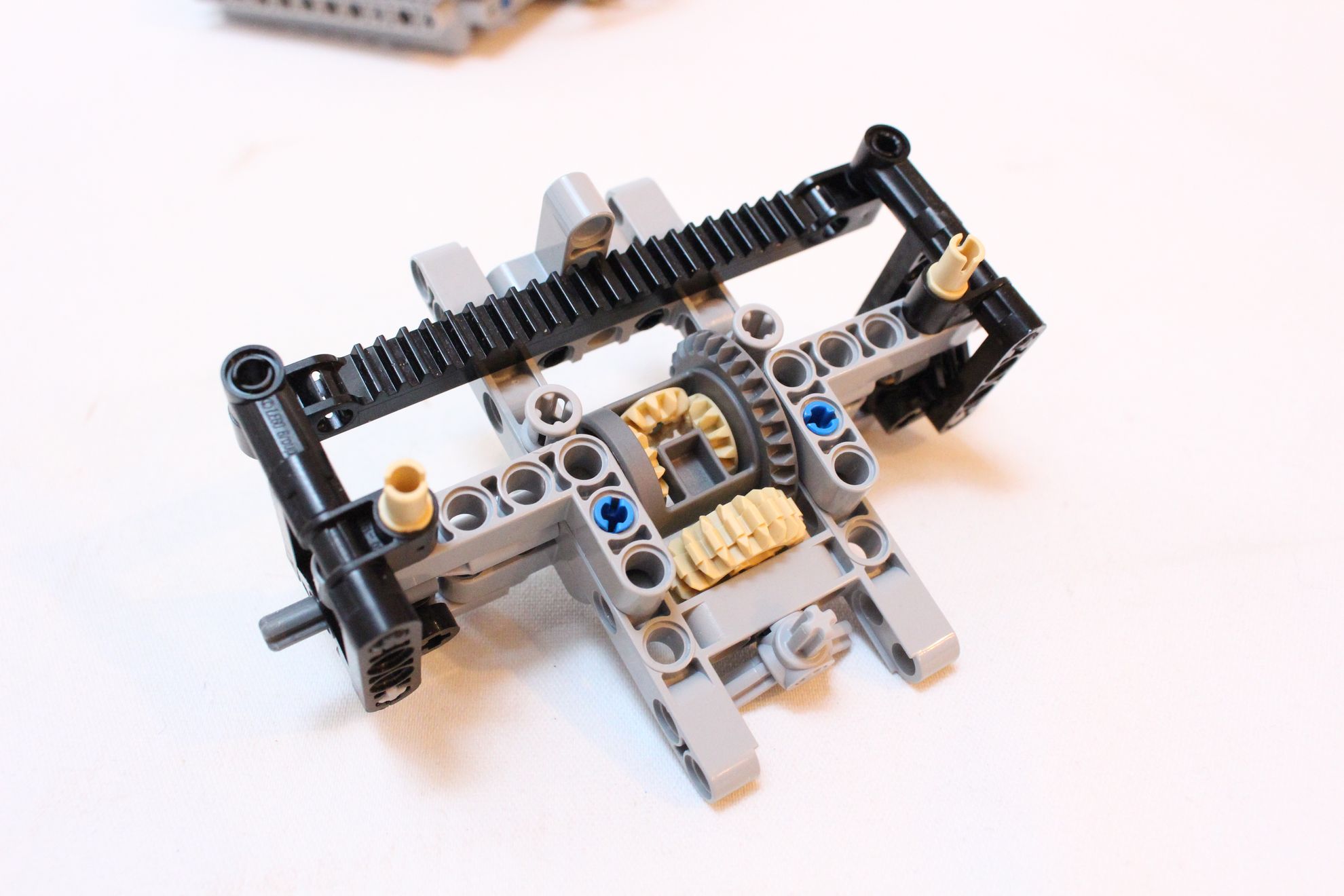

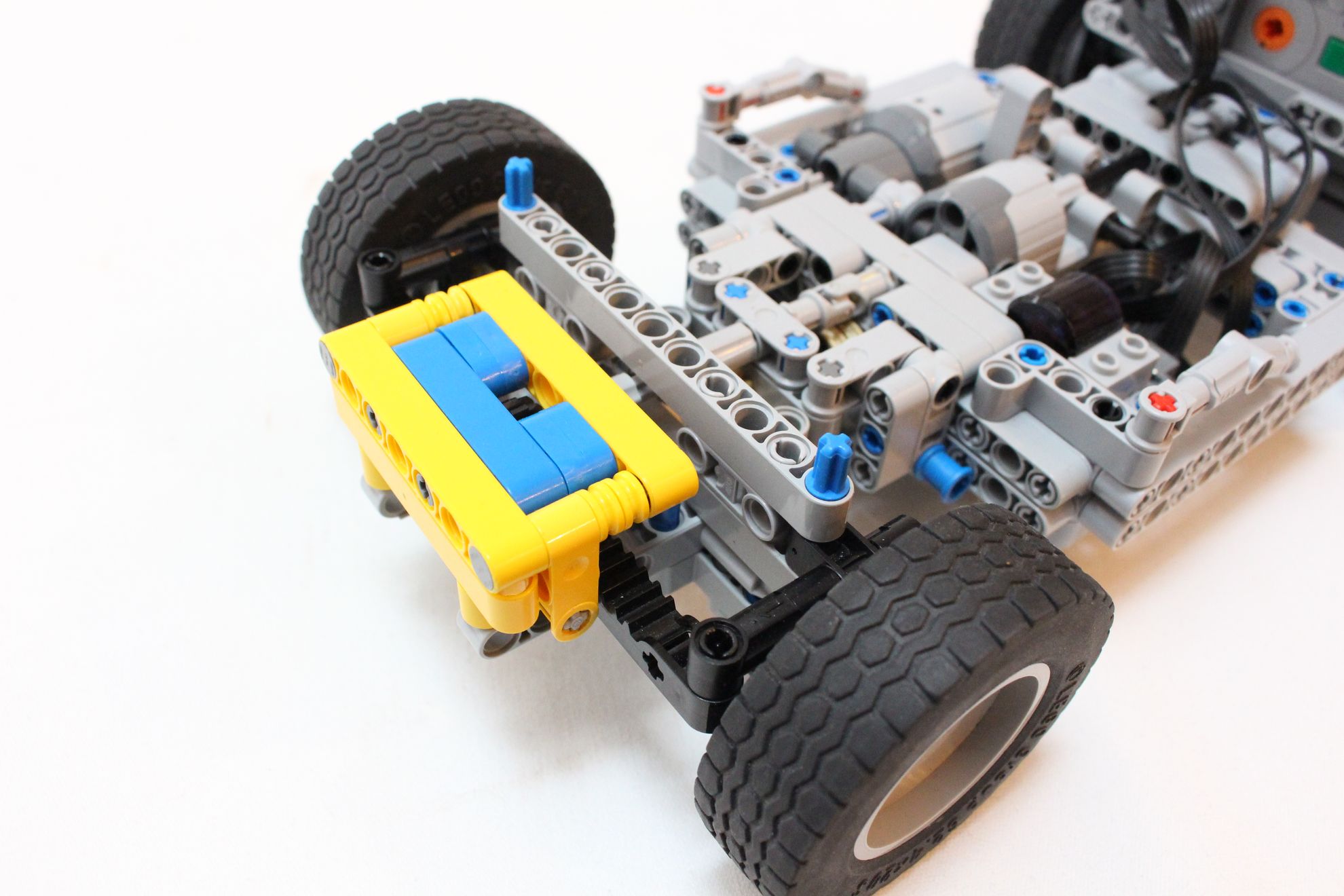

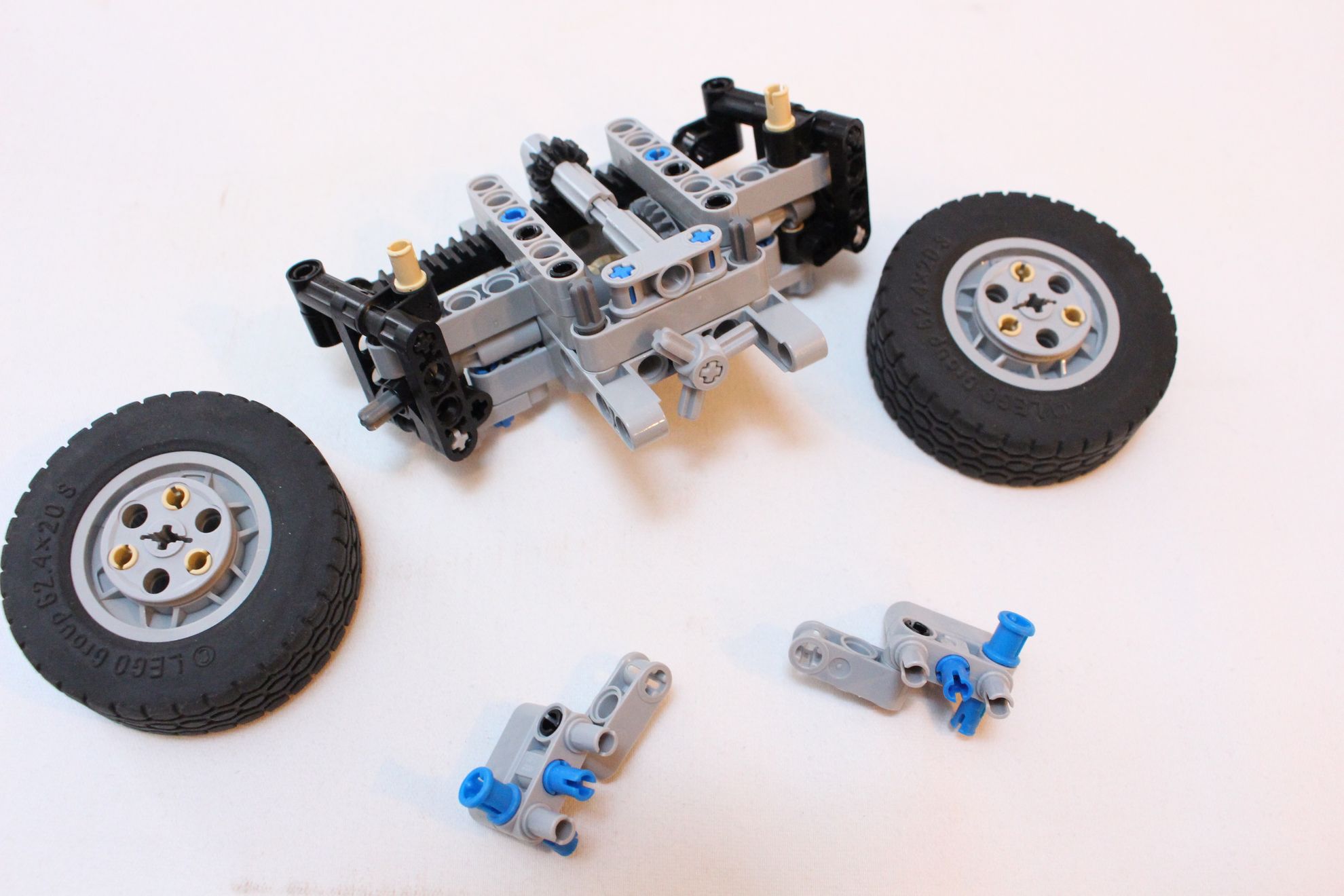

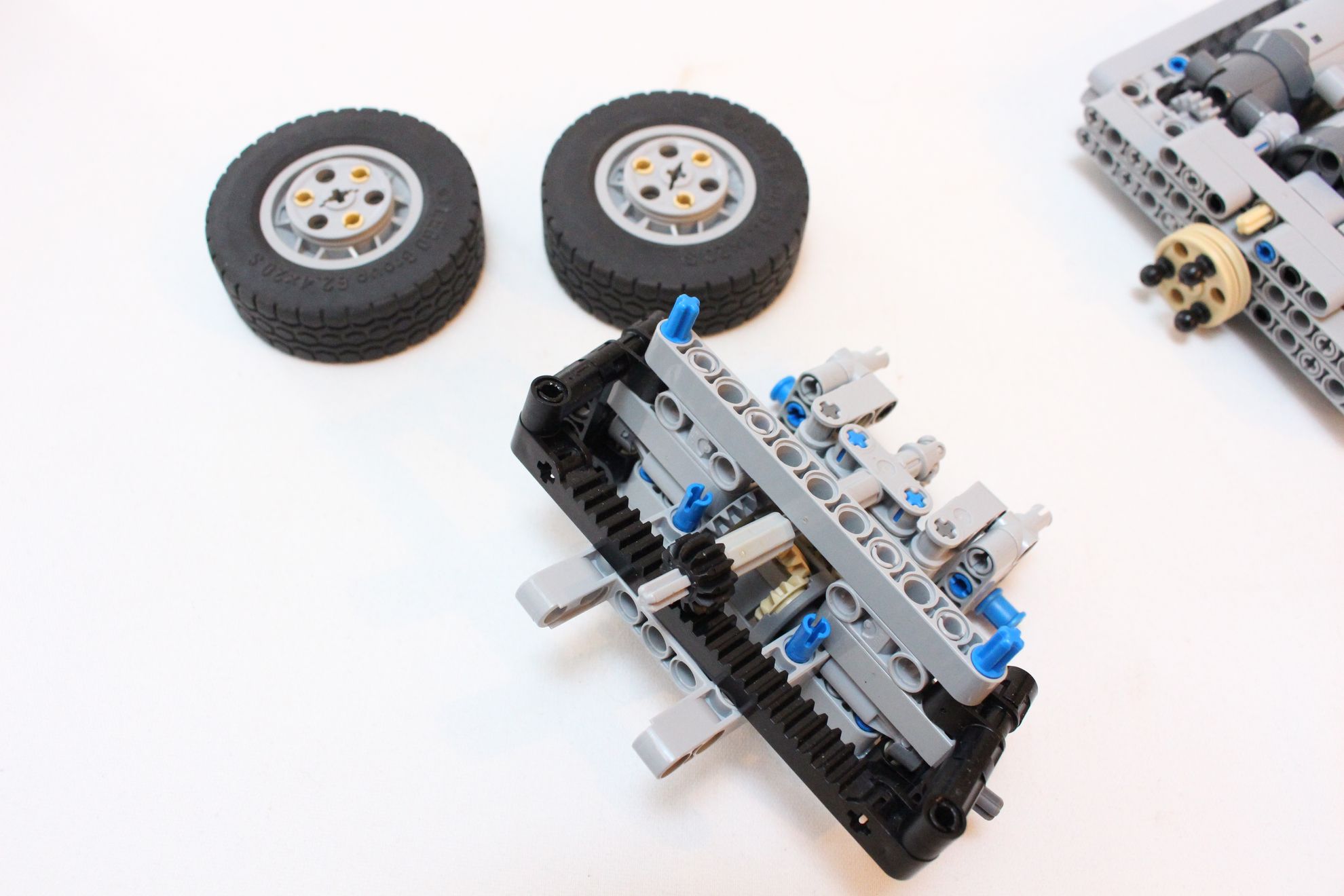

The steering is operated by a servo motor located in the chassis and operates both axle for a result of a small turning radius. There is also a ackermann steering geometry enable a better turning abilities.

IMG_5272

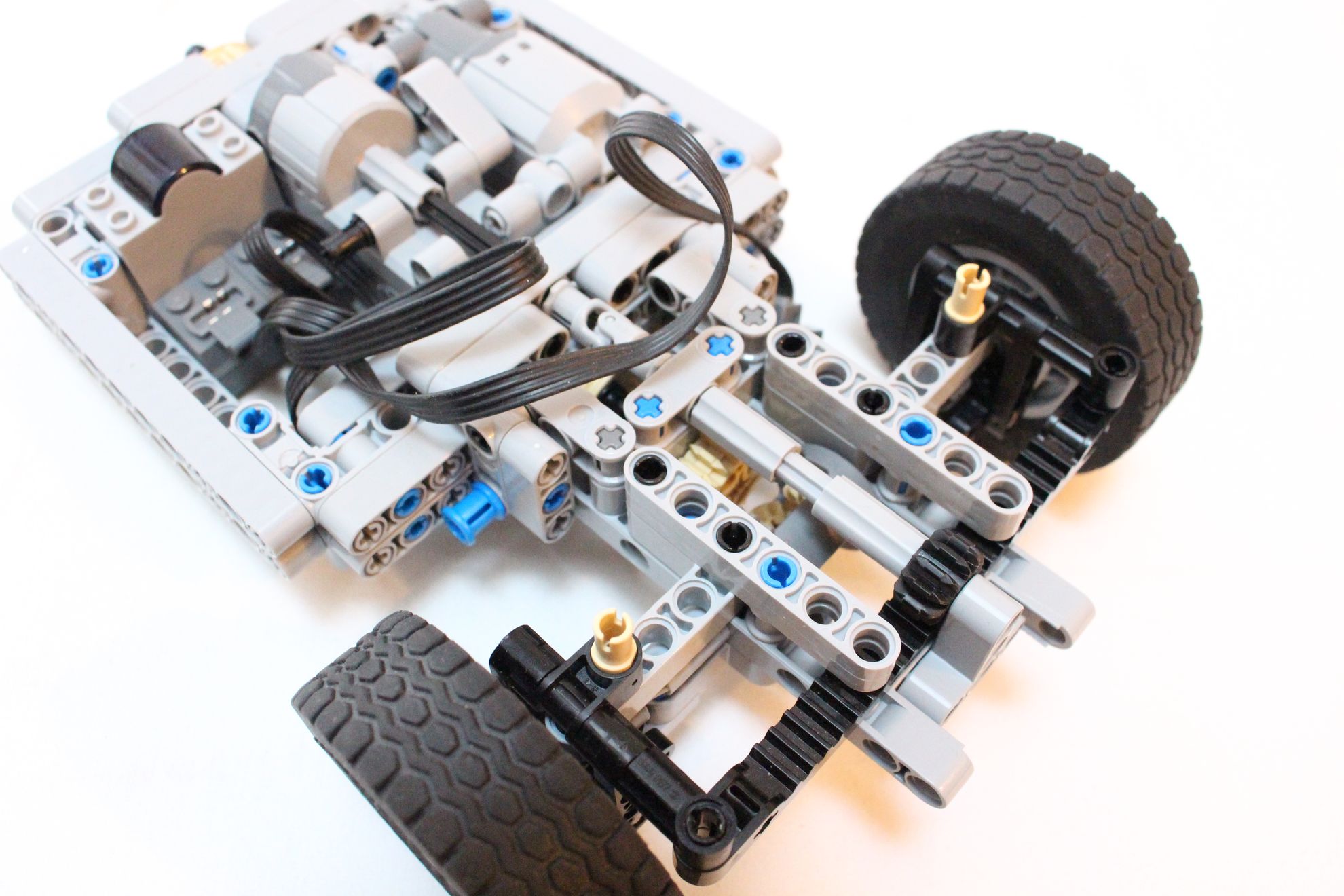

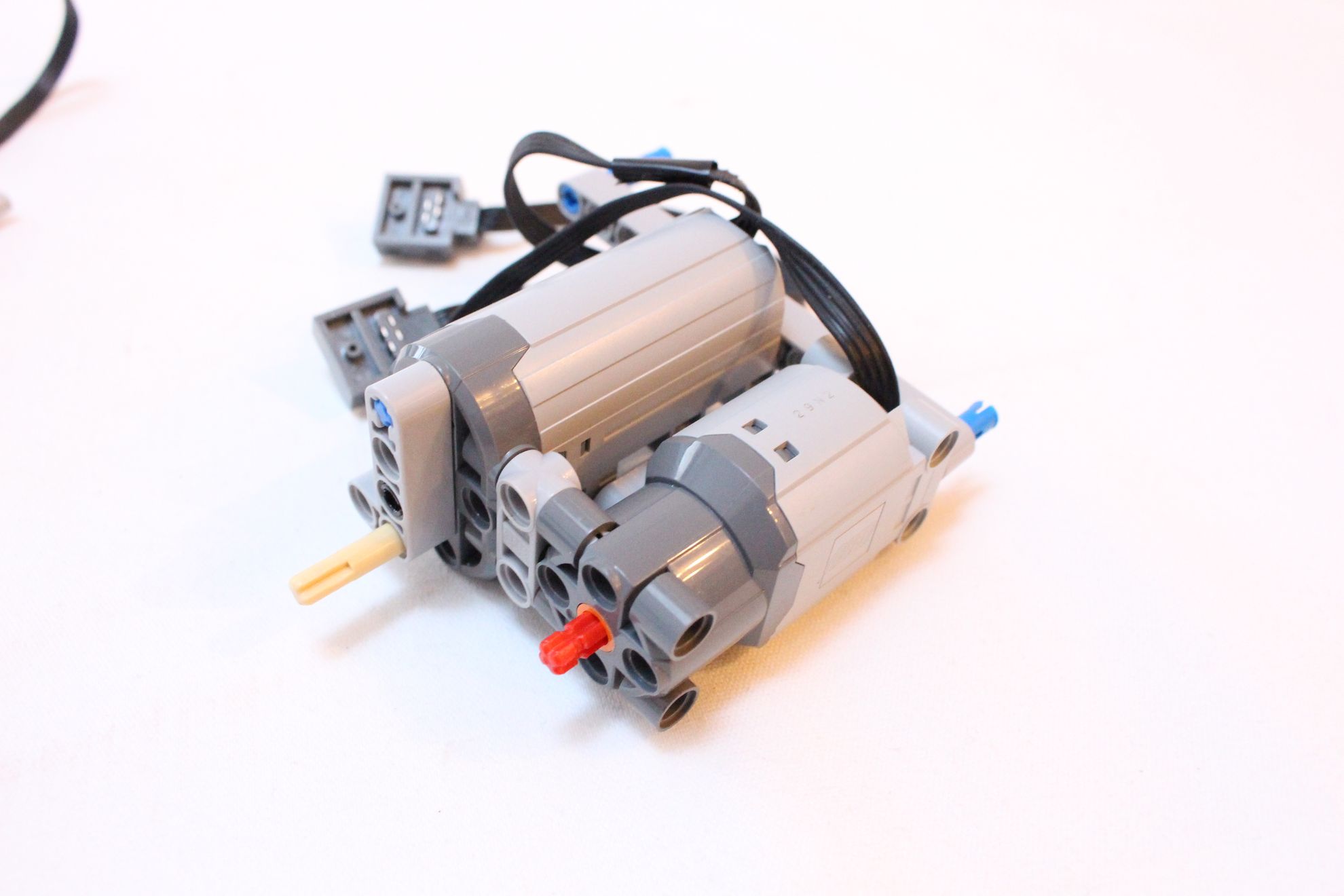

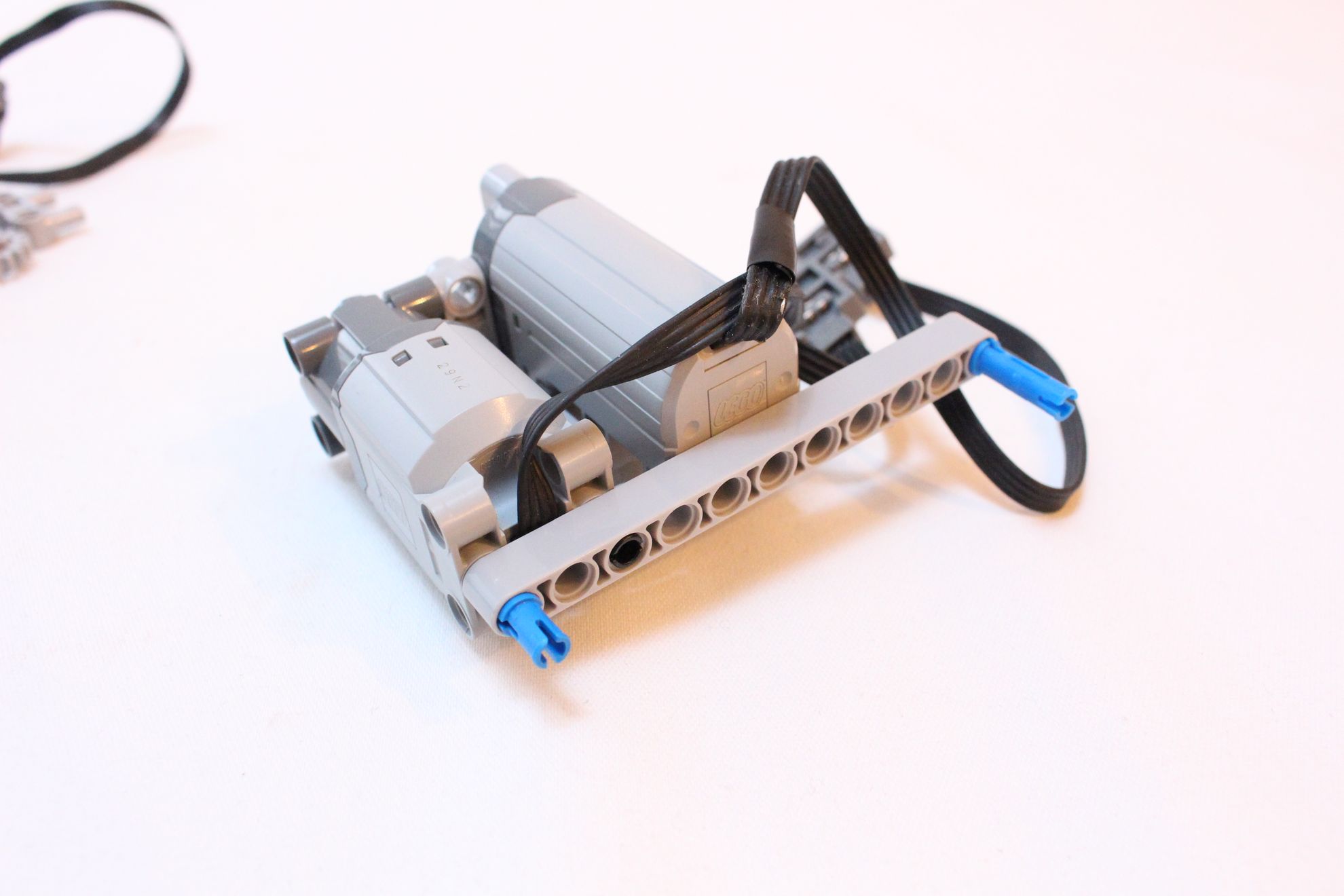

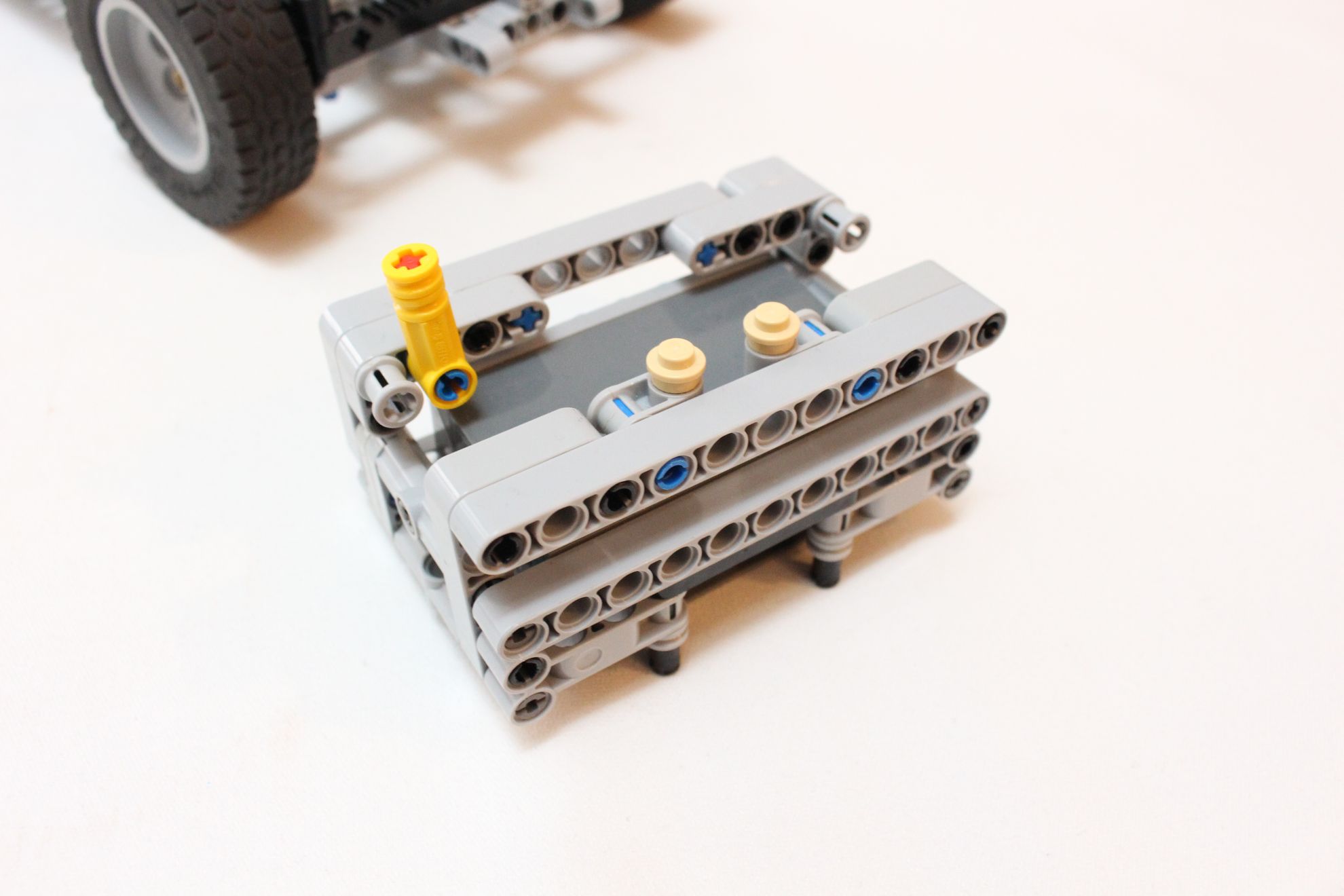

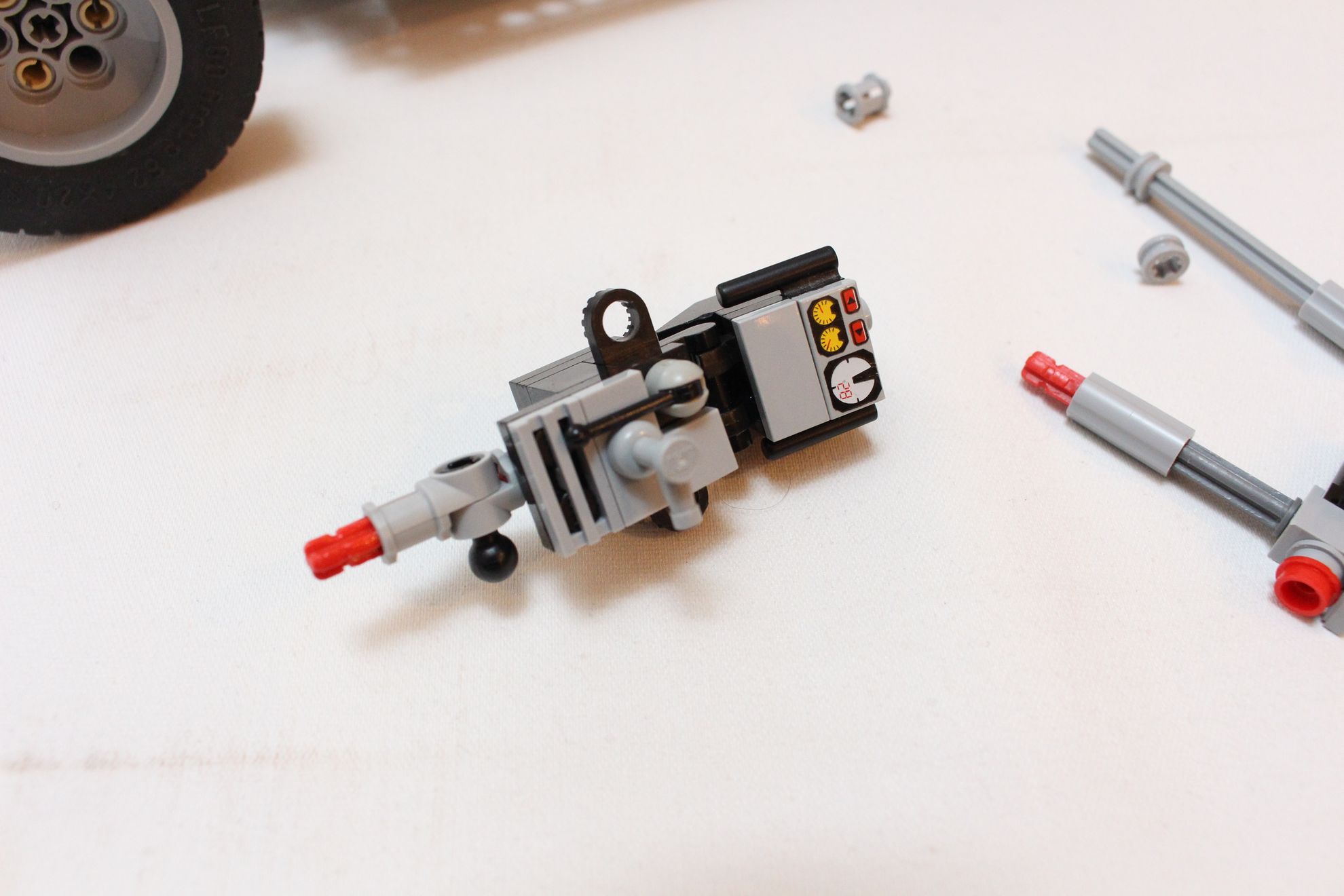

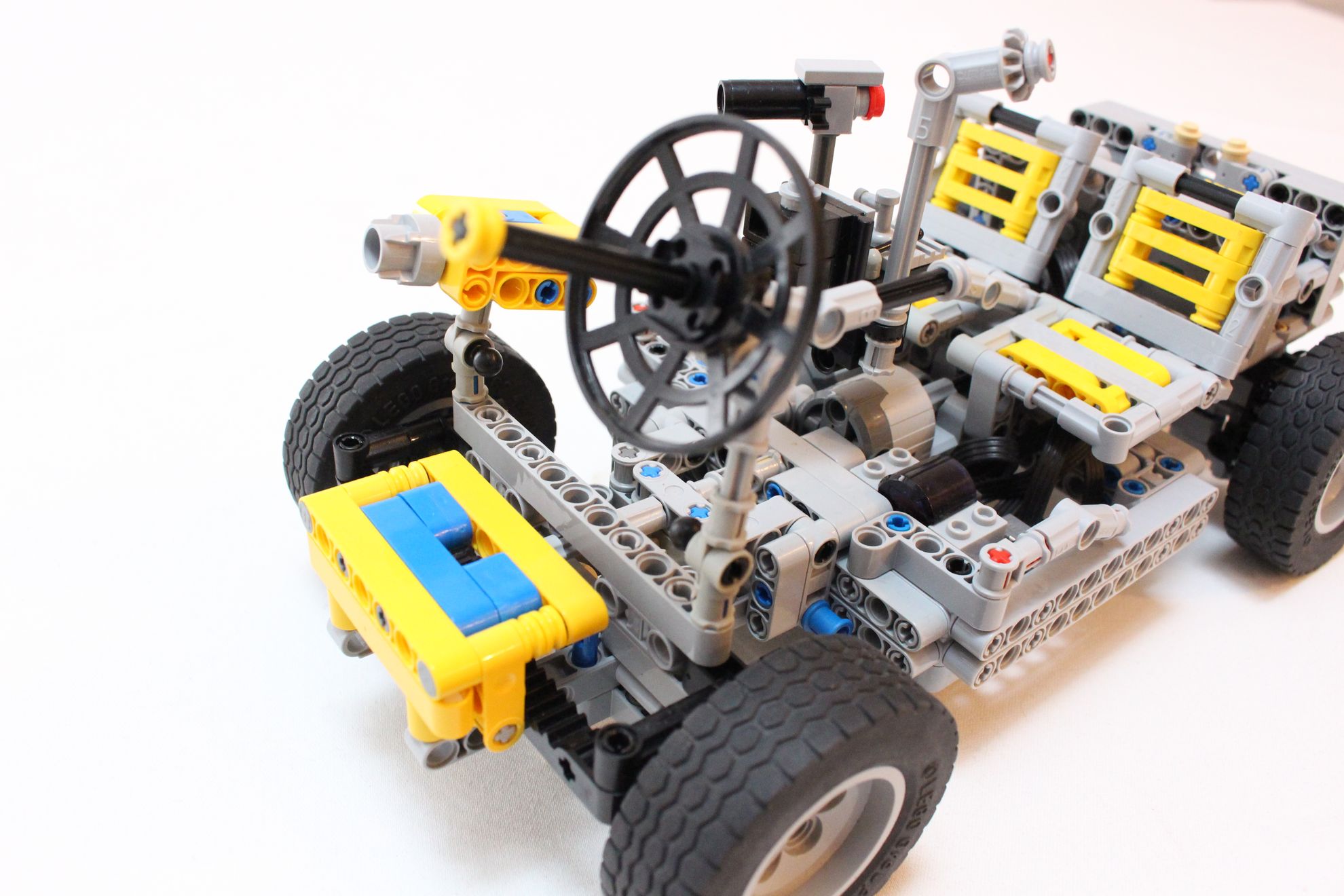

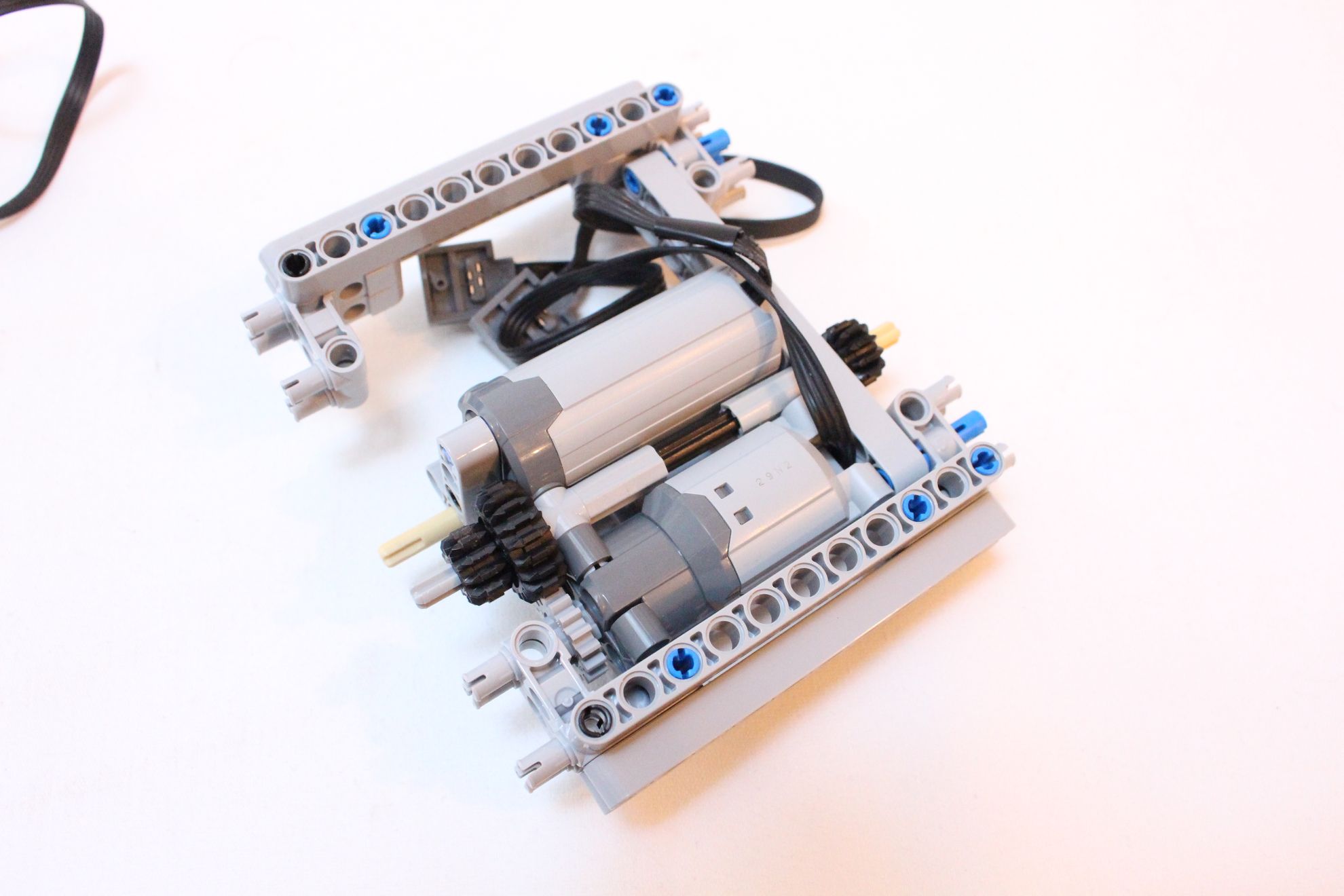

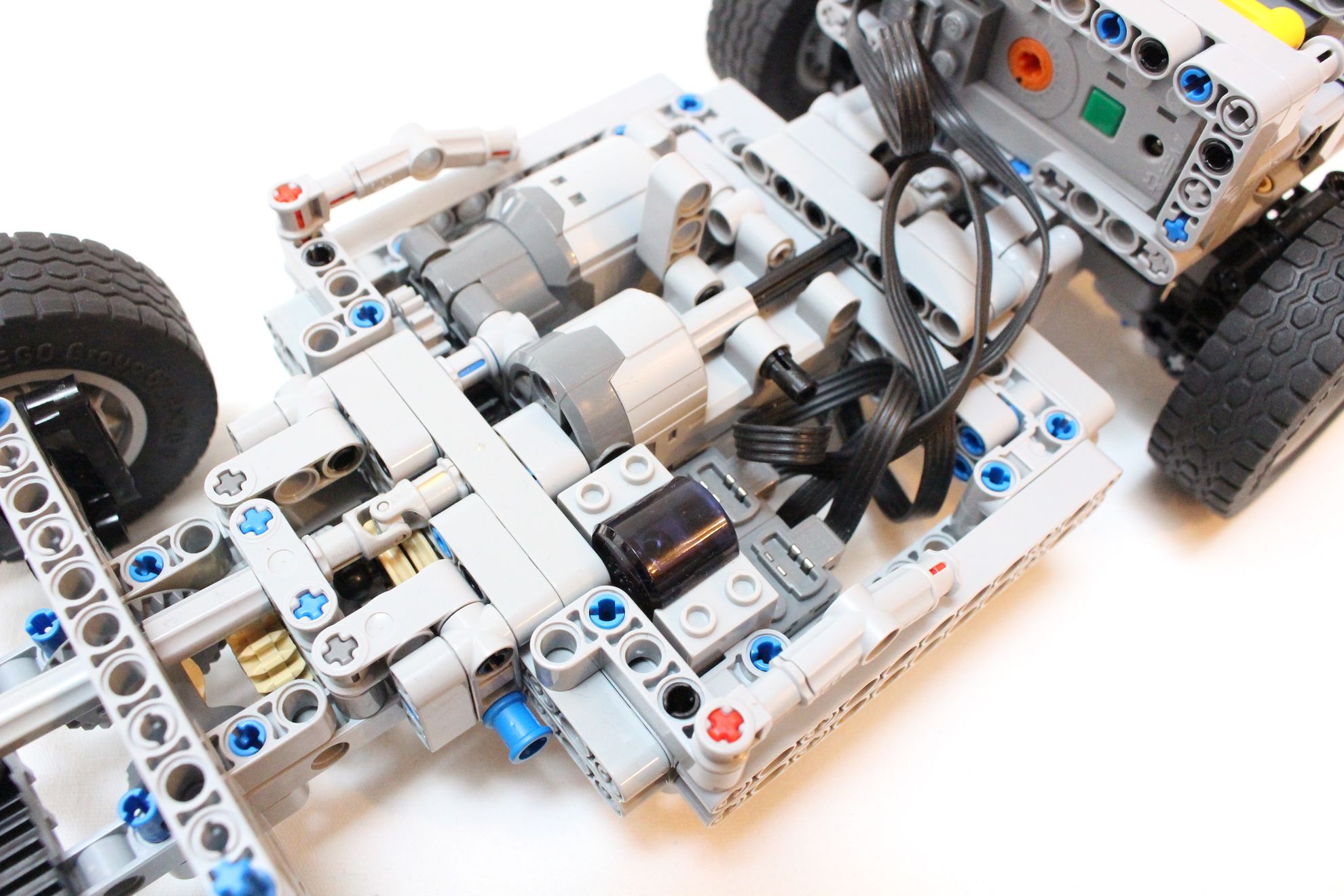

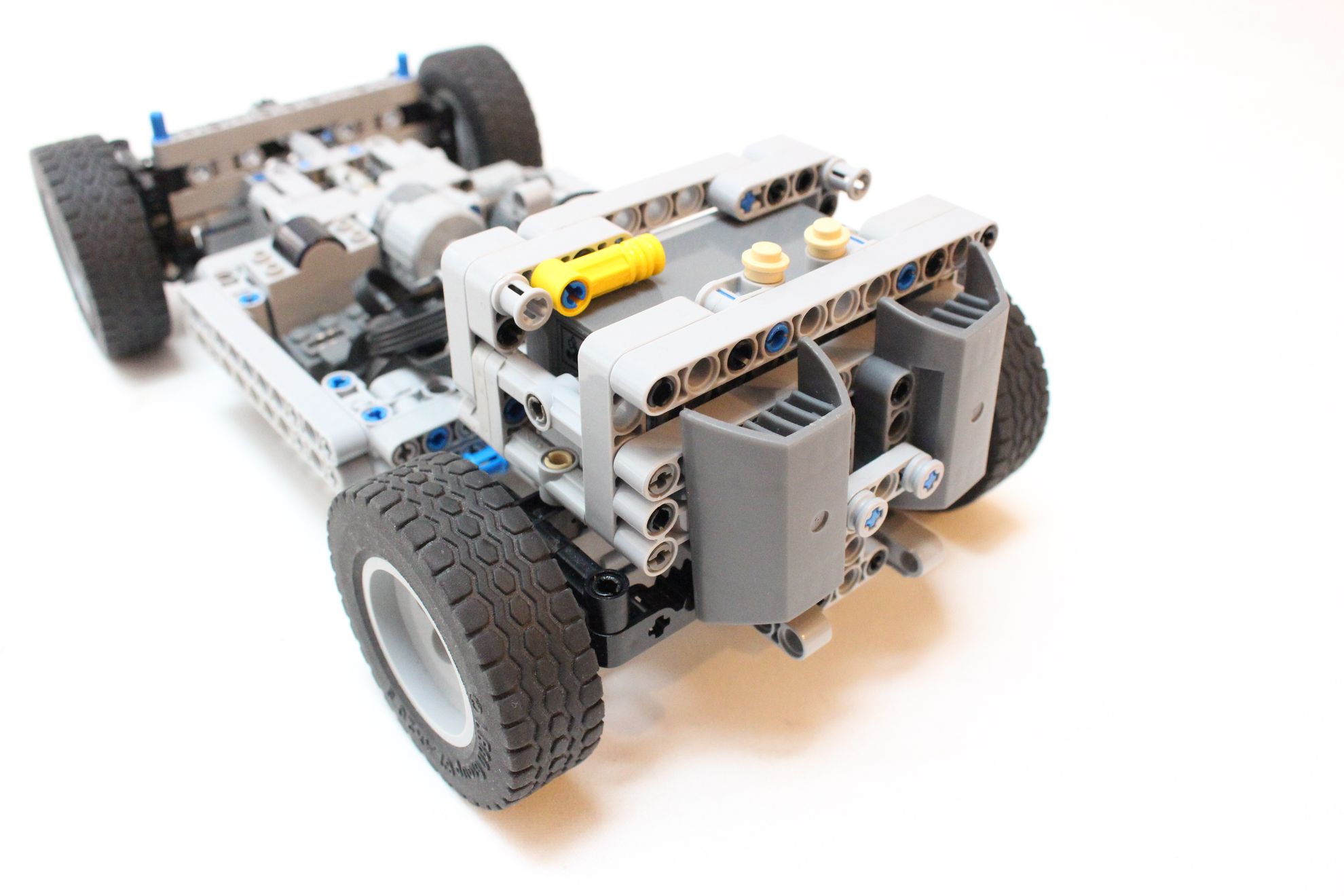

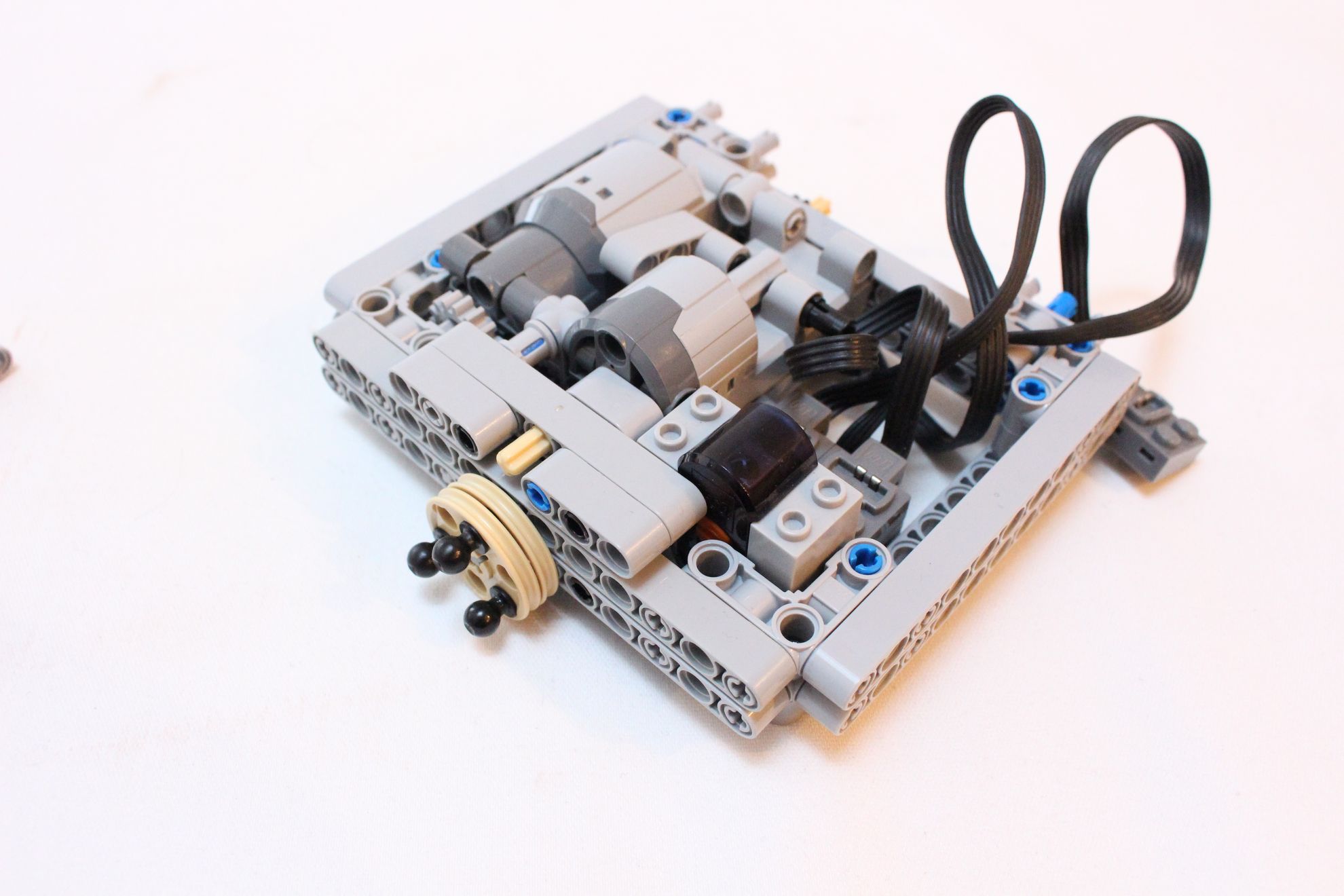

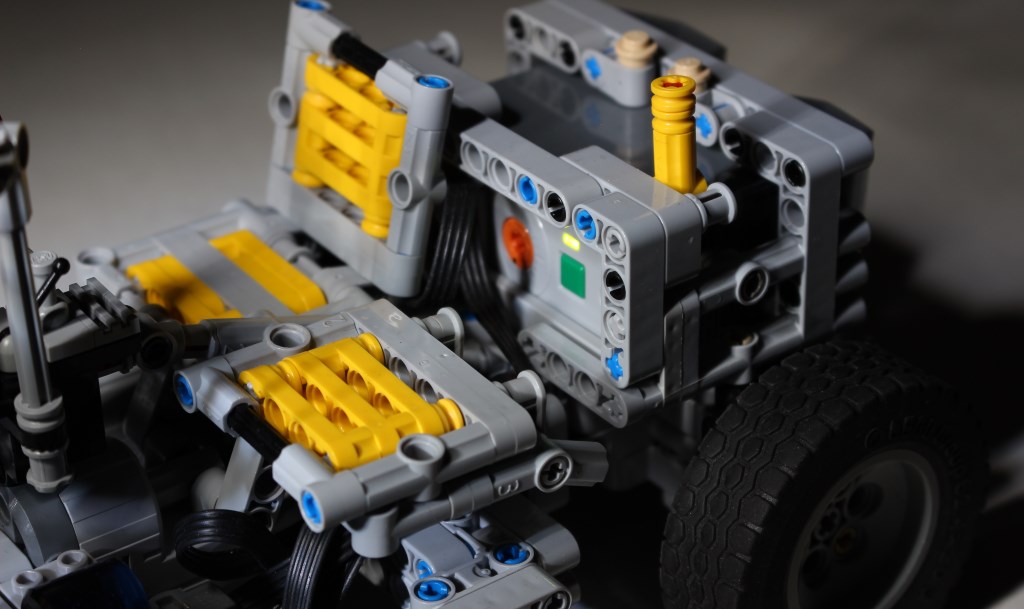

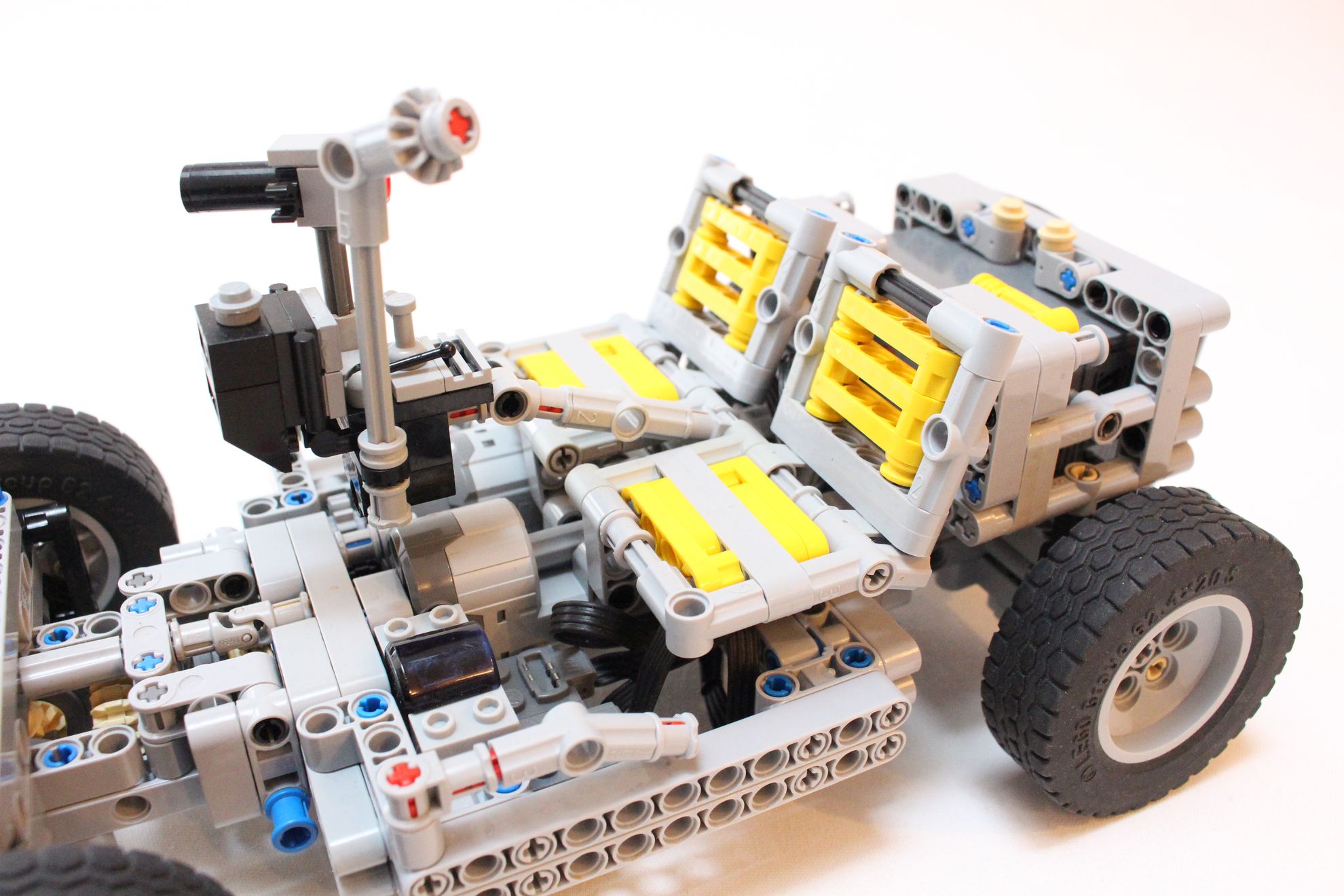

There are many details on-board, including seats, high and low gain antenna, cameras, tool carrier, dashboard computer and solar panel. But the important thing here is the integration of the mechanical components. As you can see, the motor is located with the IR receiver in the central frame, and the battery box located on the bottom. It was very important because of the respect of the original design and also for enabling the deployment system.

RowerLanding

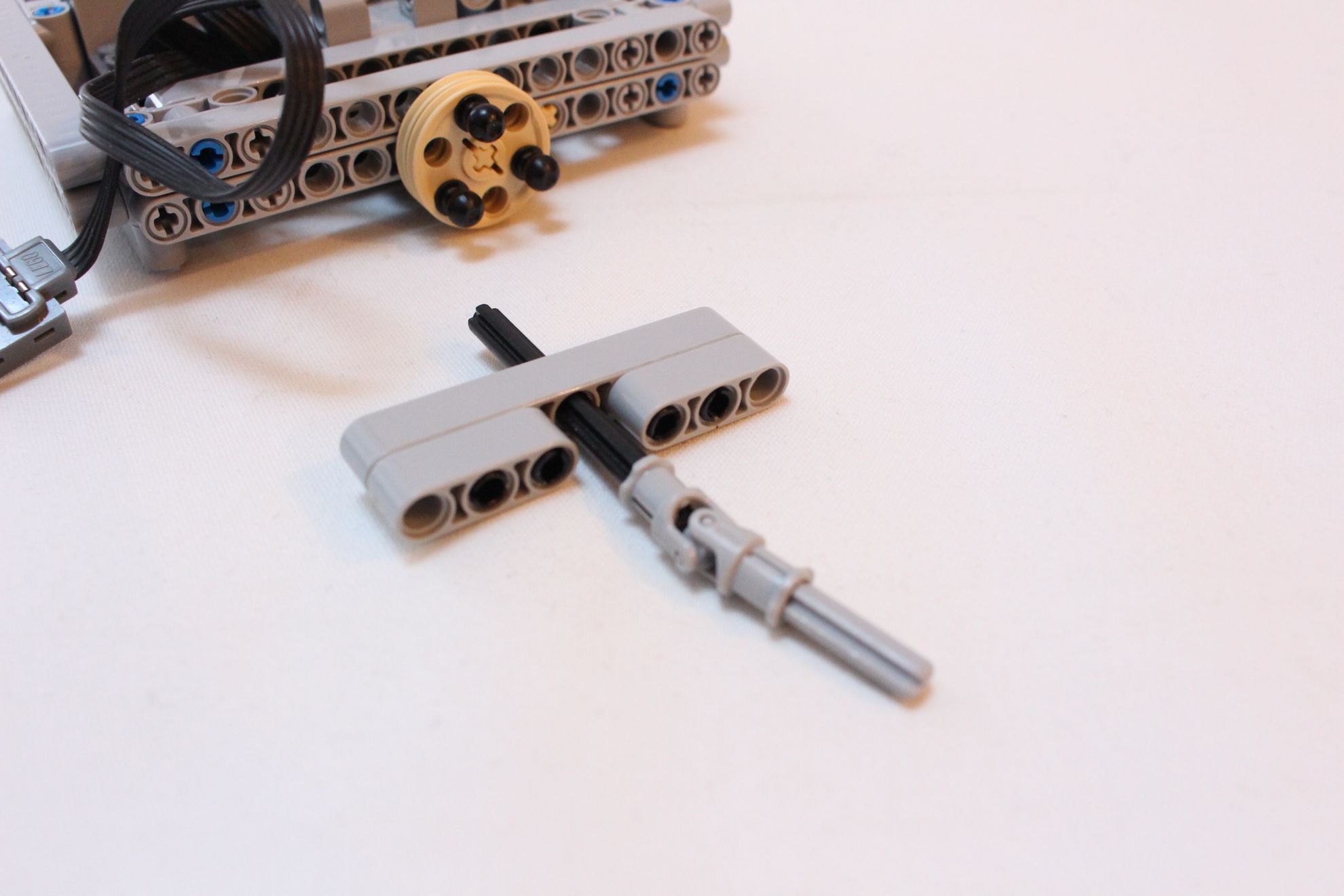

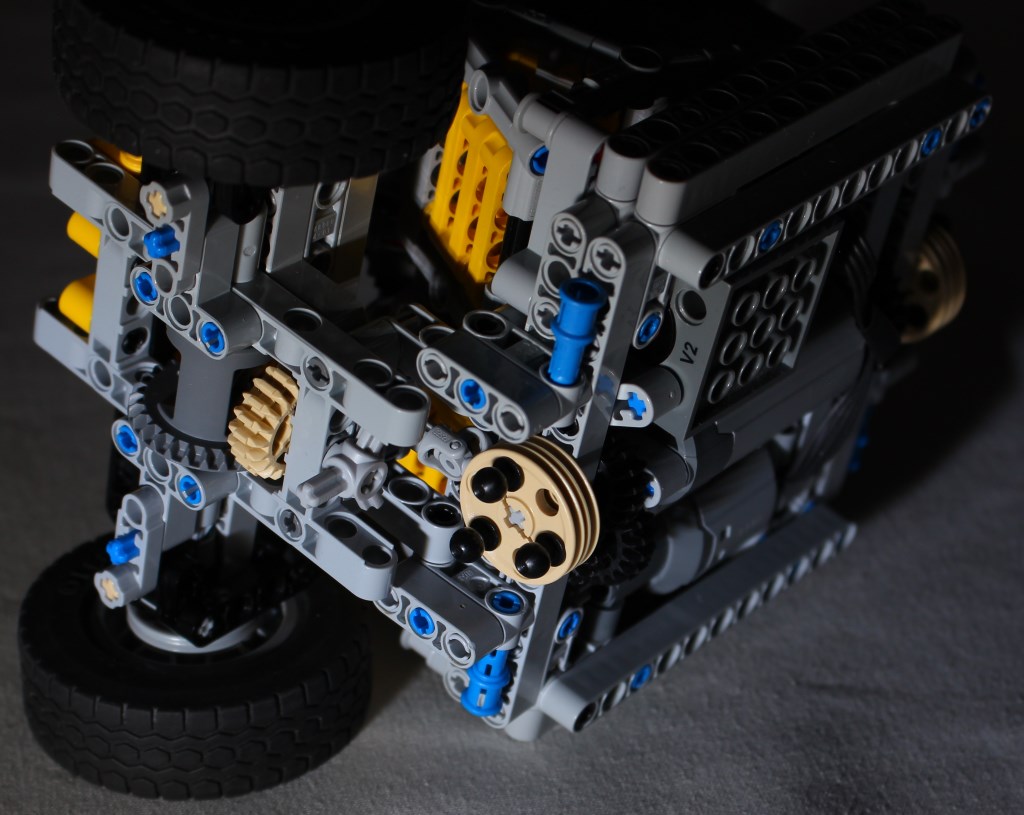

By folding the seat, bend the antenna, camera and dashboard, the axles can be unlocked by removing the blue axle pins, then, the LRV can be folded as its landing configuration as real (ok still an approximation, in real, wheels are taken apart). Of course it doesn’t need to remove mechanical parts. The steering passes through a U-join which enables the articulation, and a quick 3 pins coupling as shown on the next picture enable the connecting of the drive.

IMG_5300

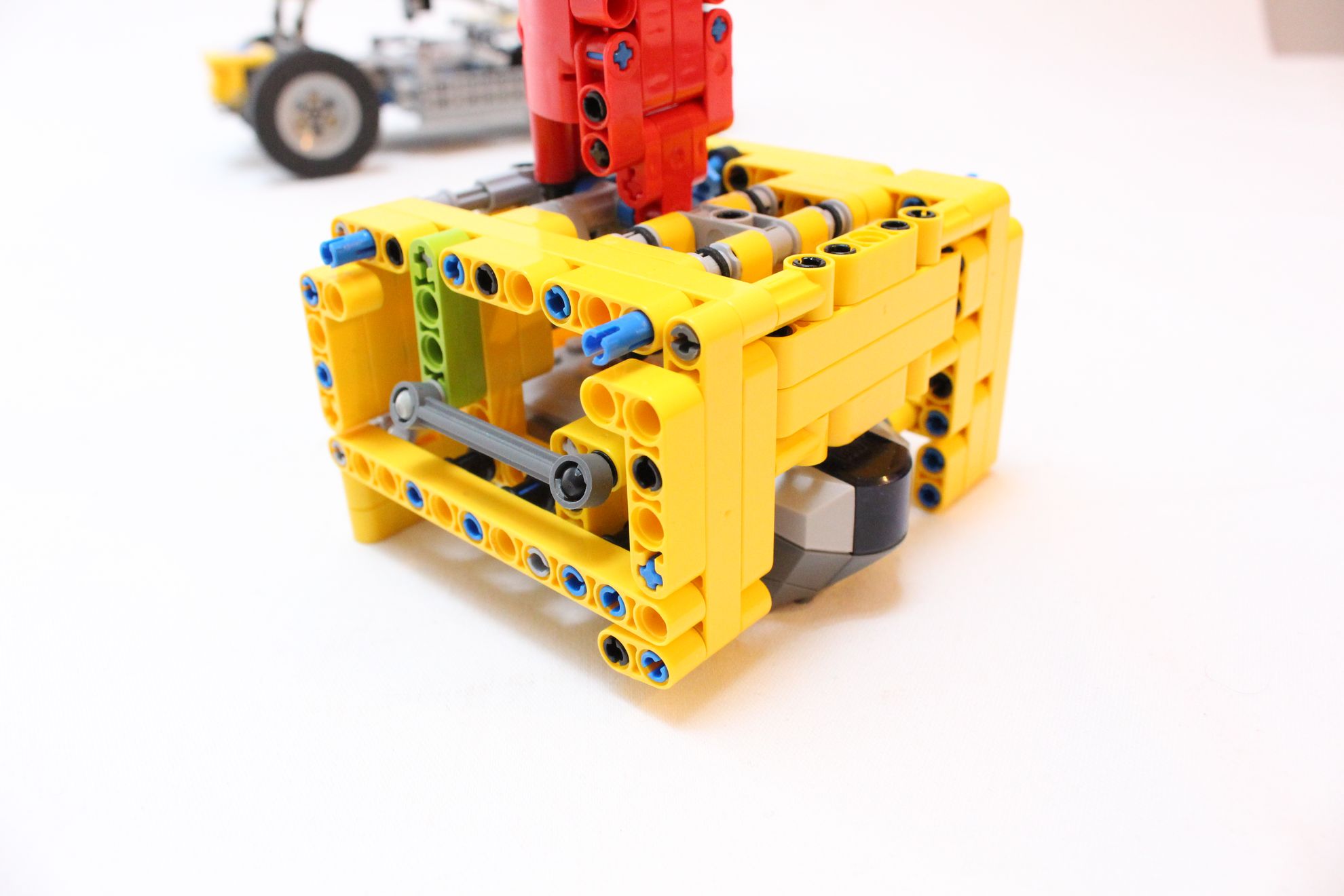

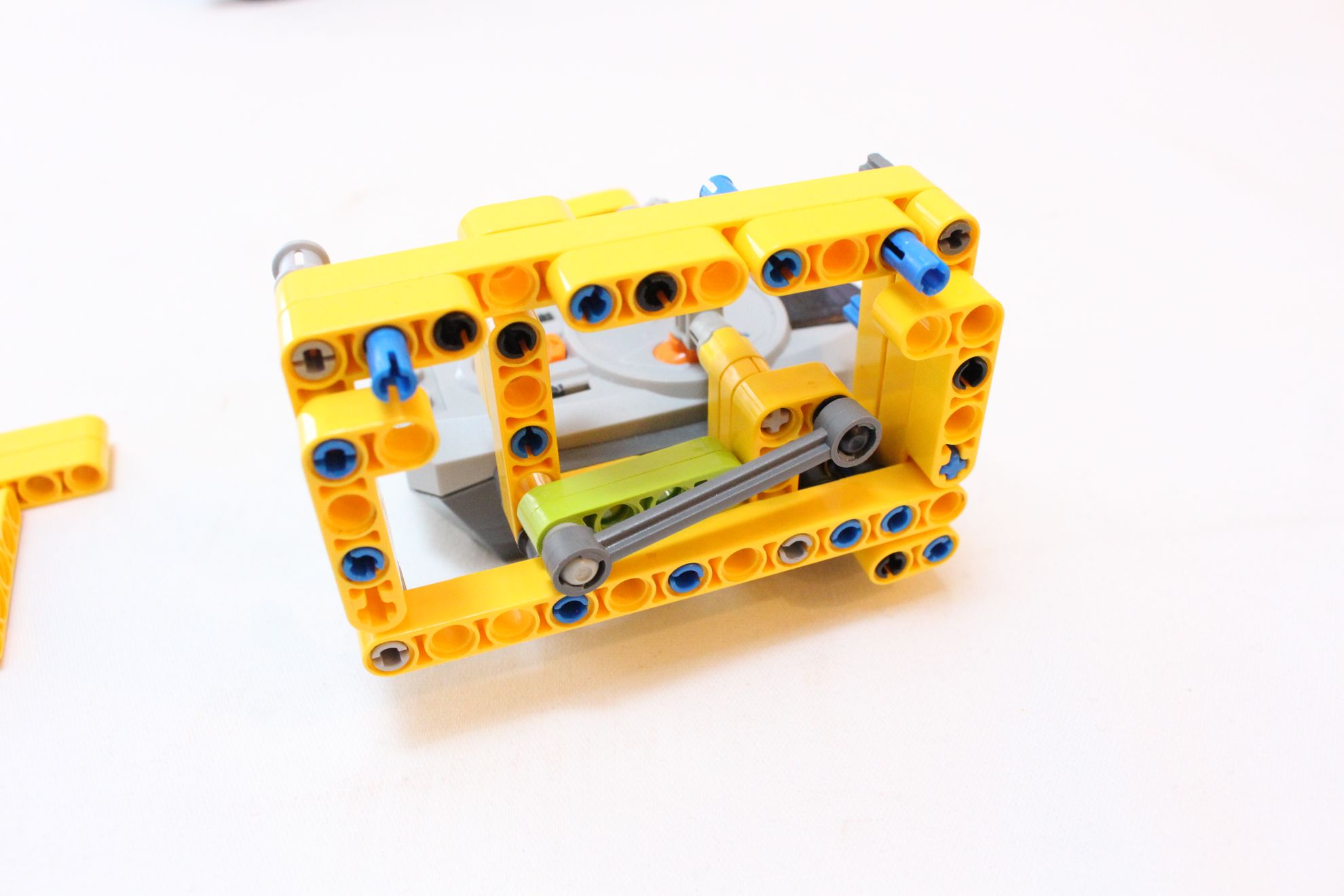

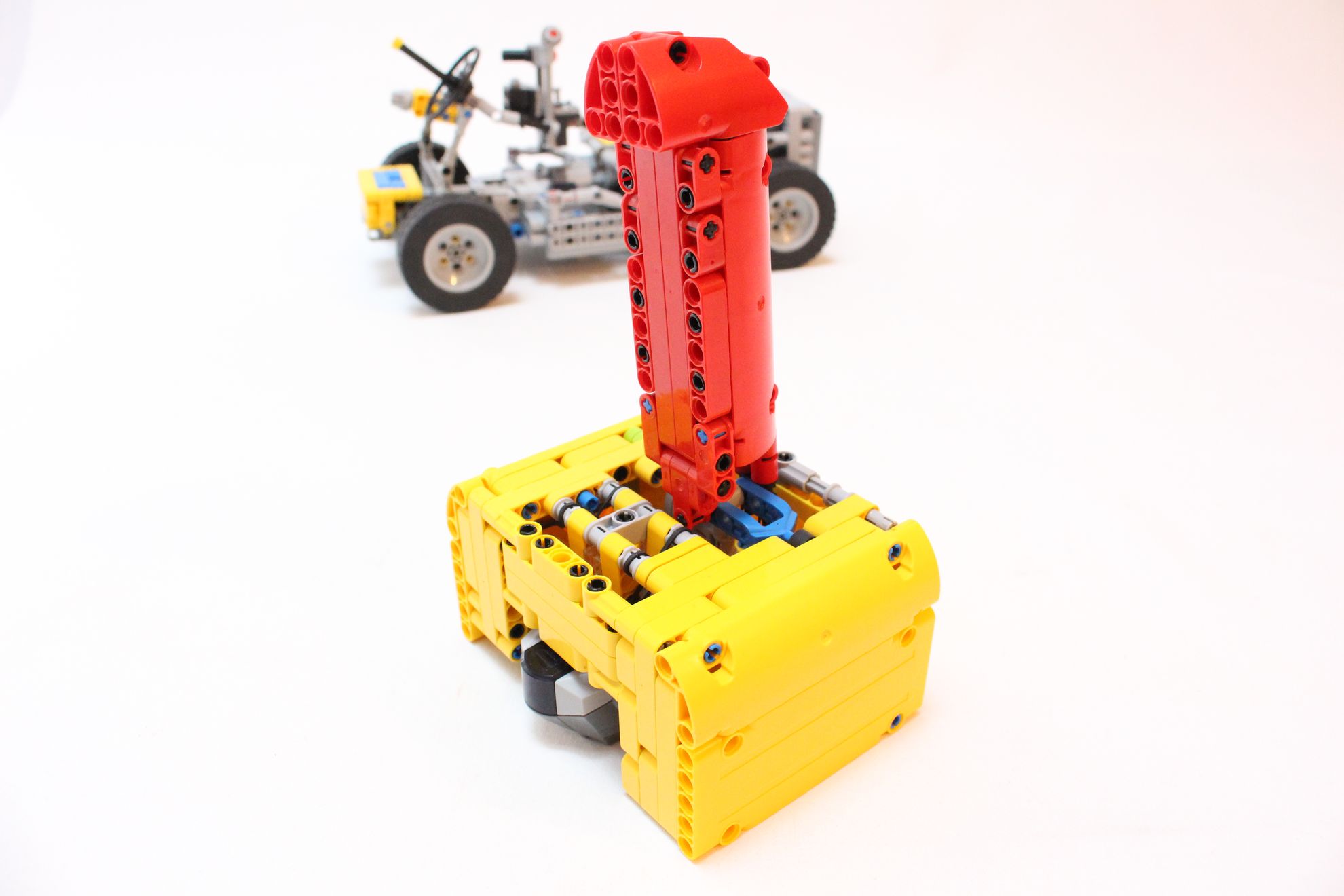

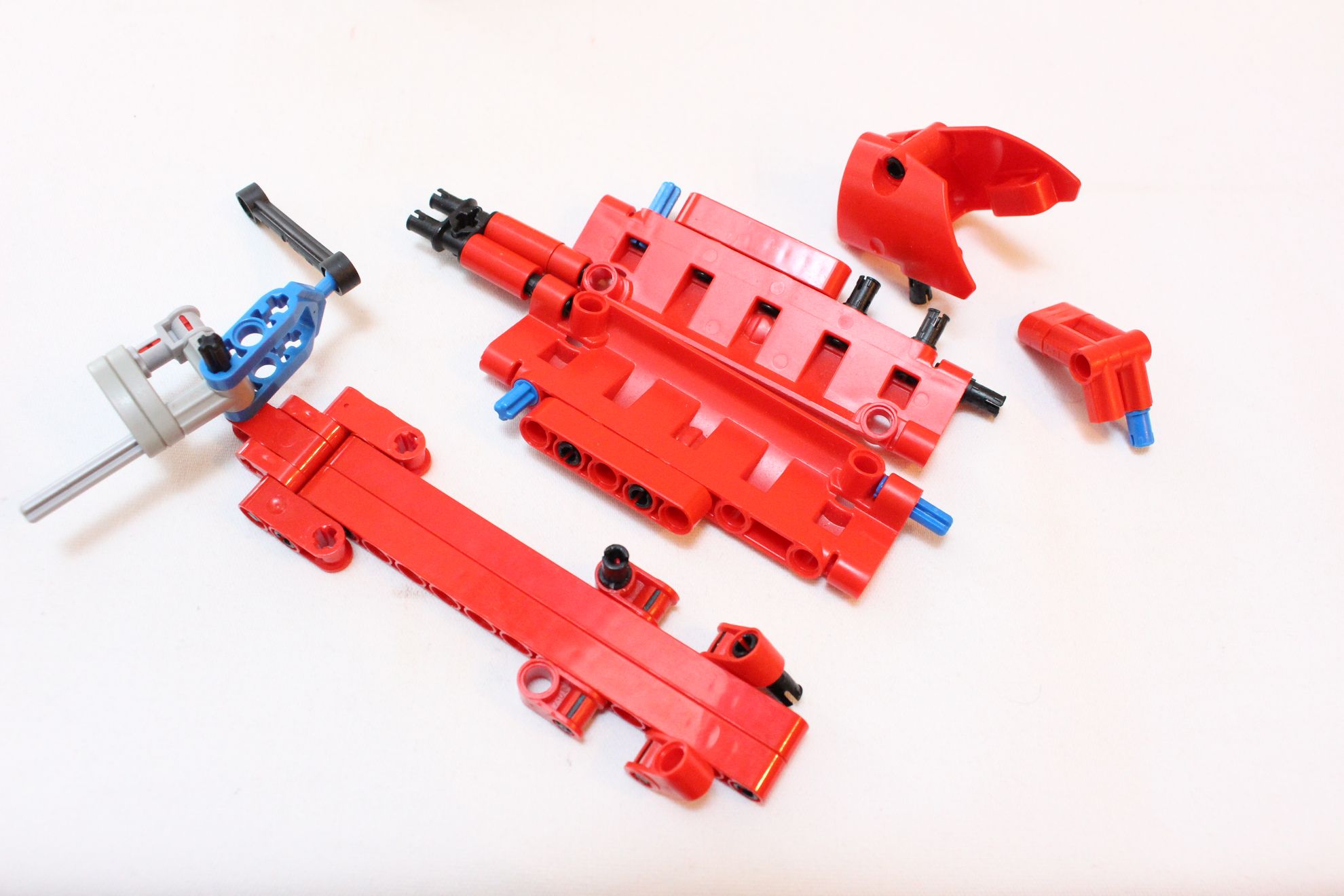

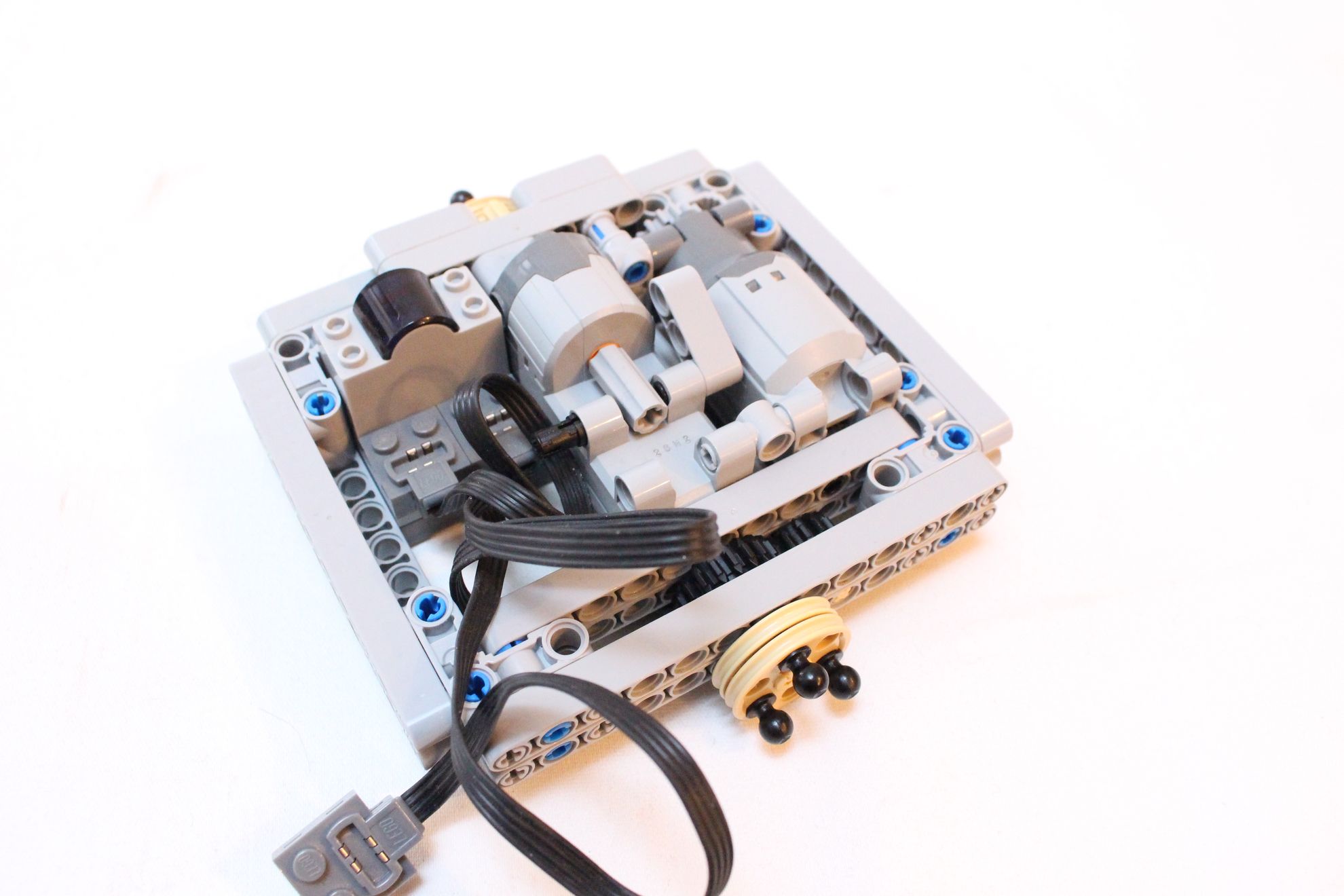

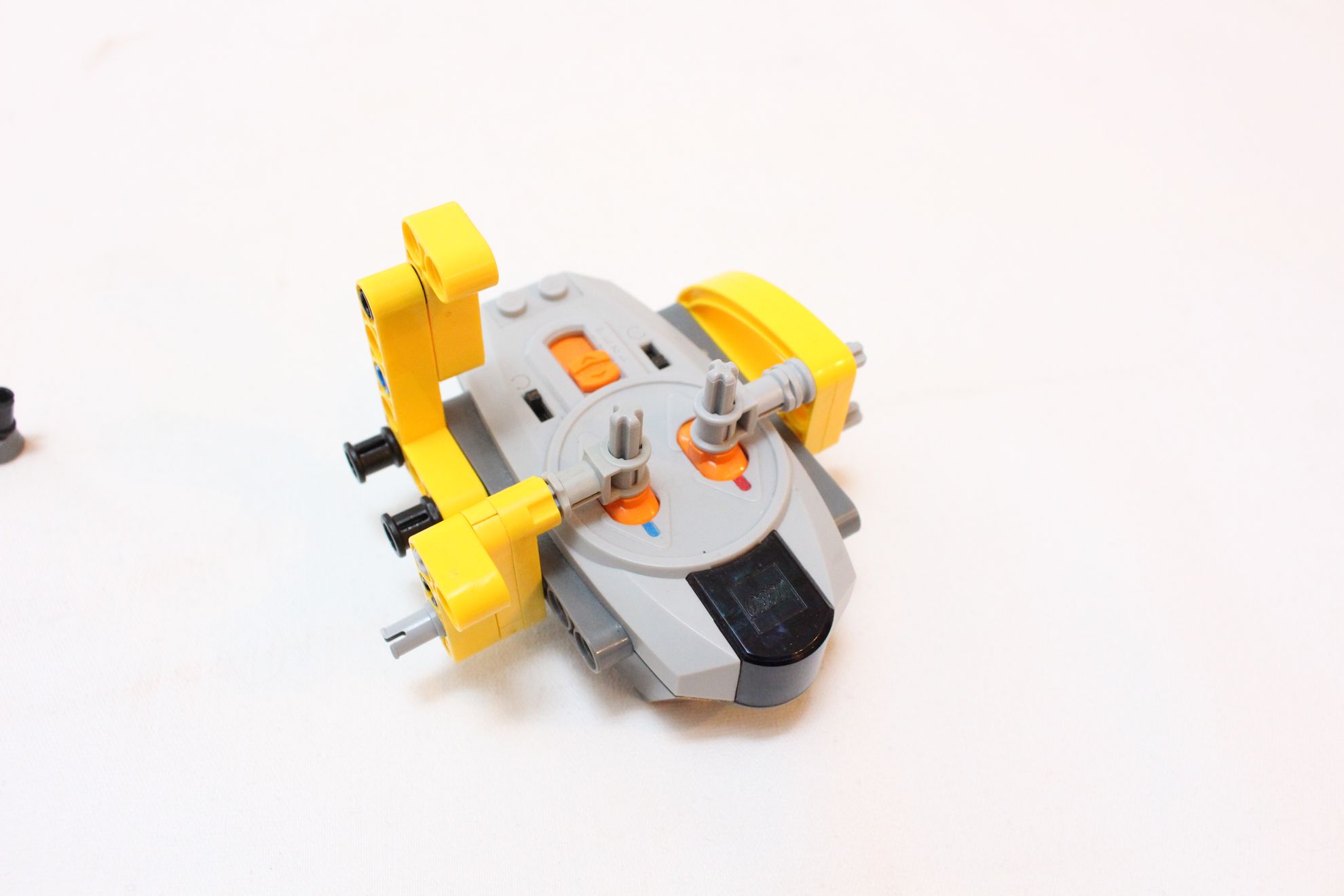

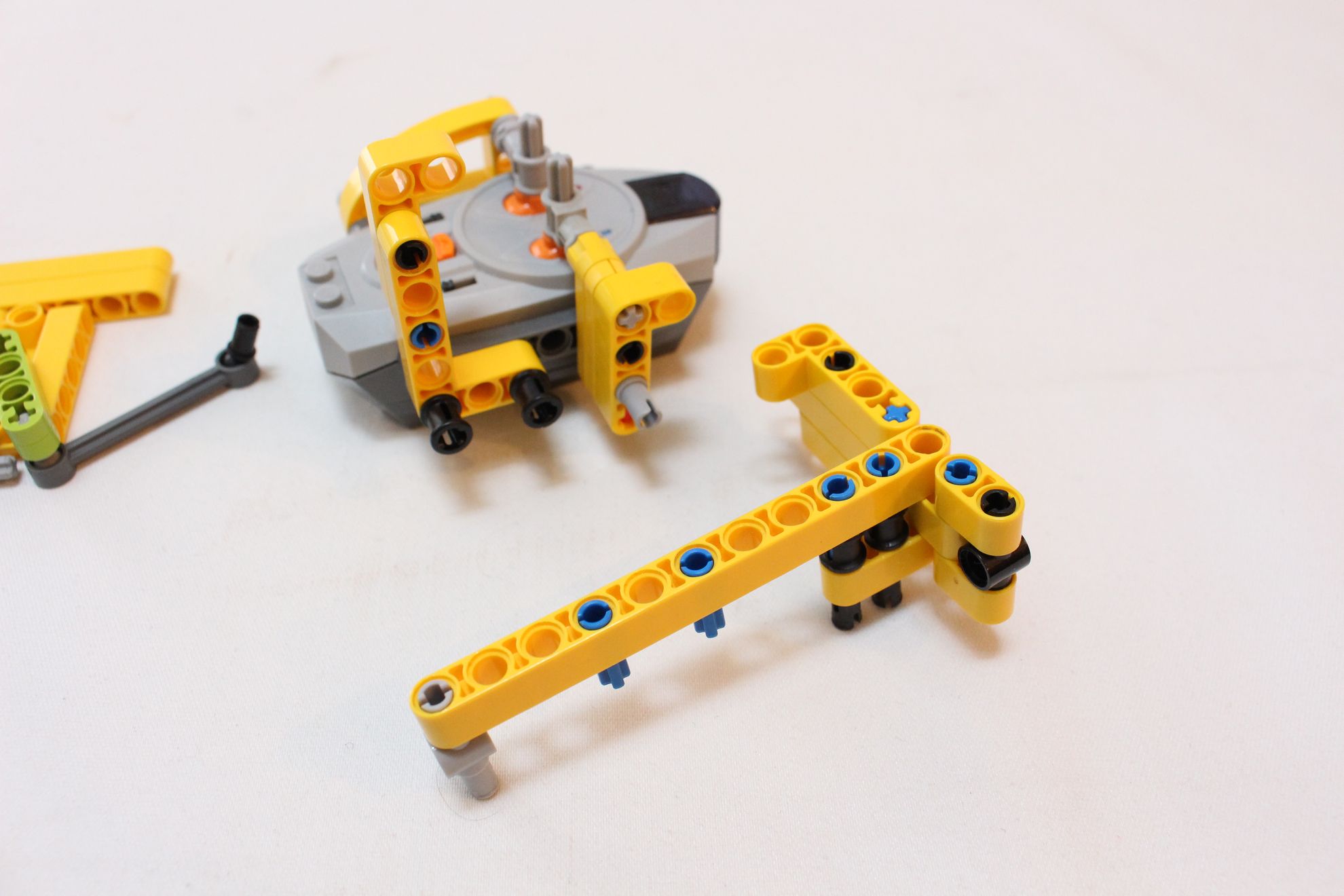

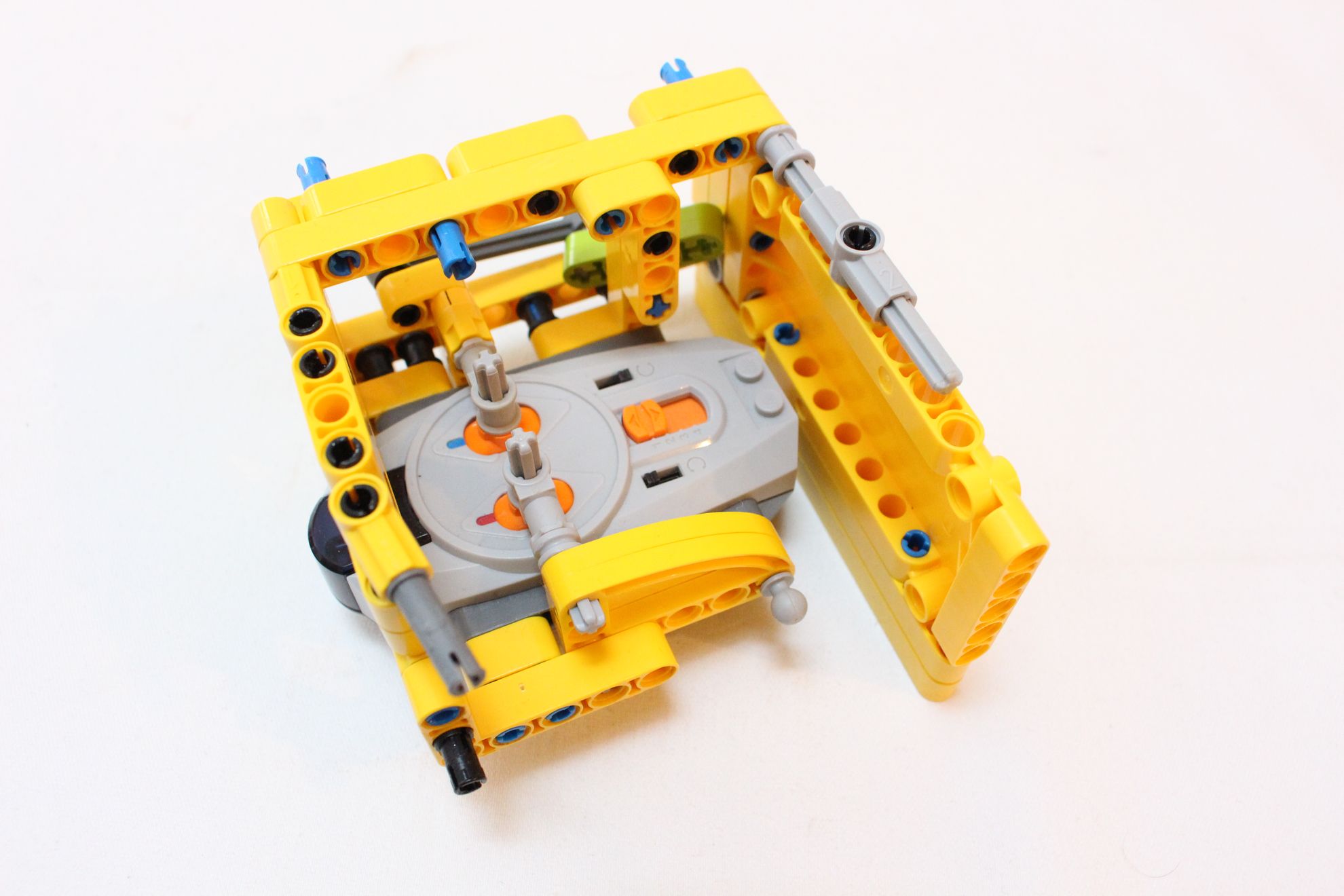

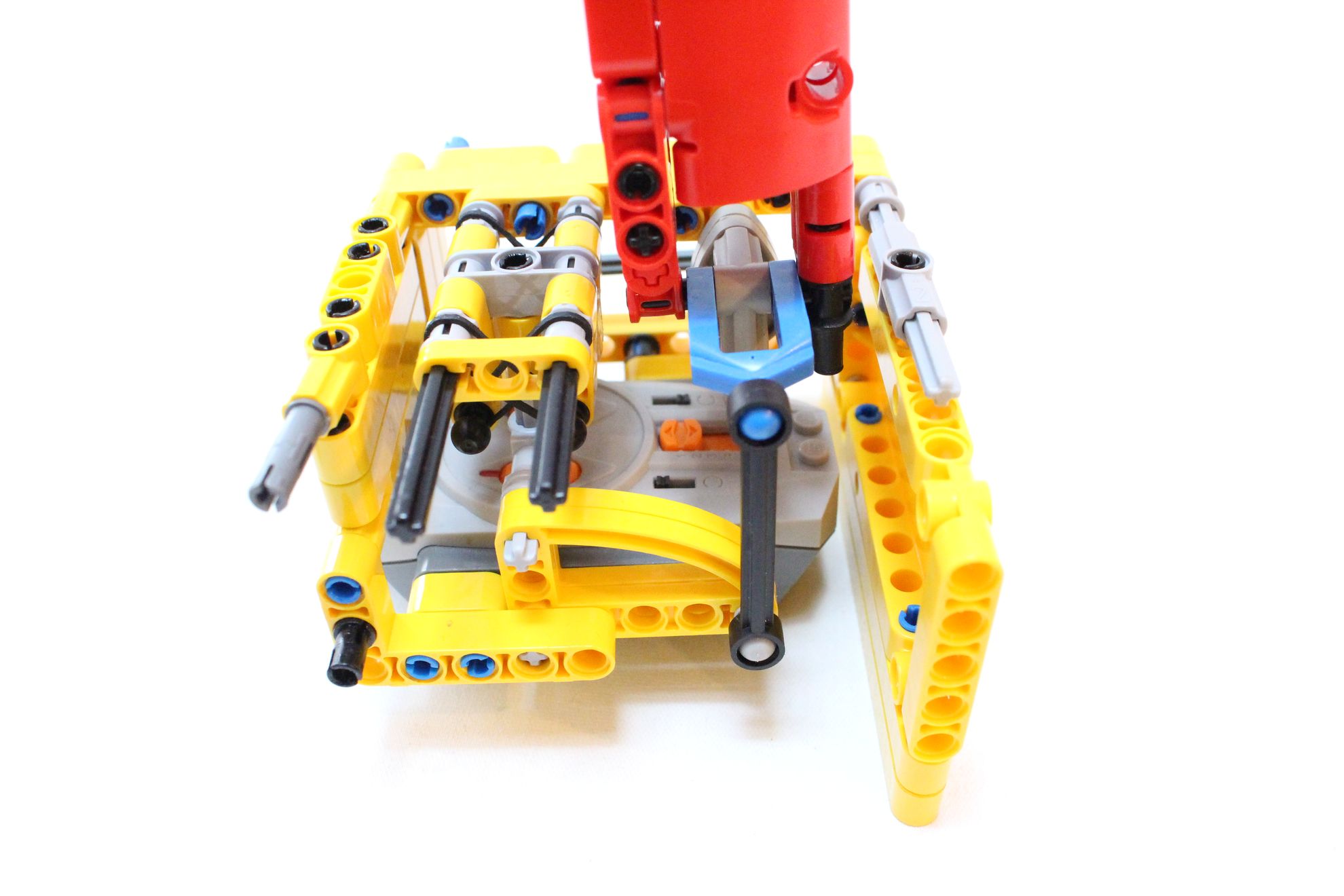

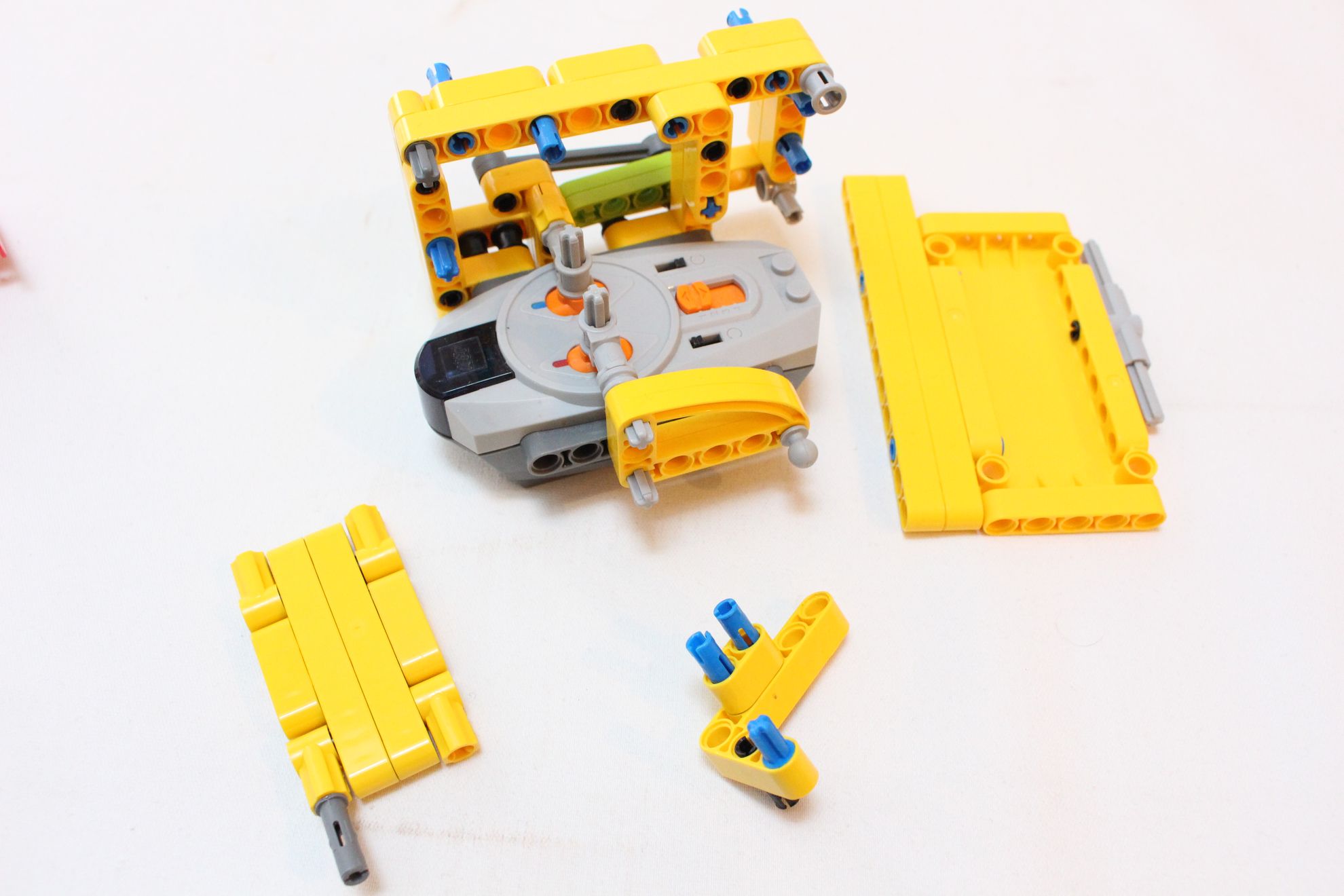

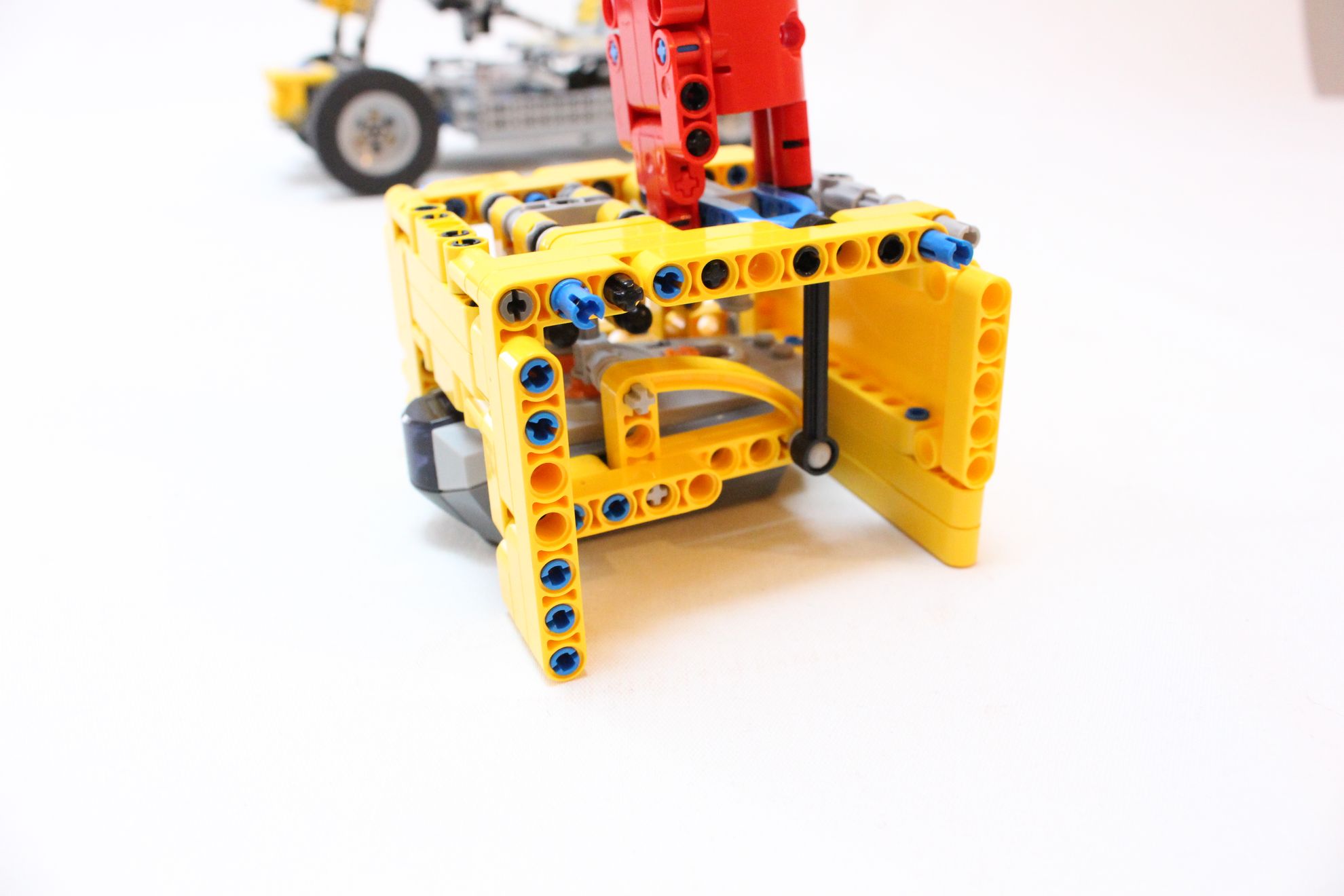

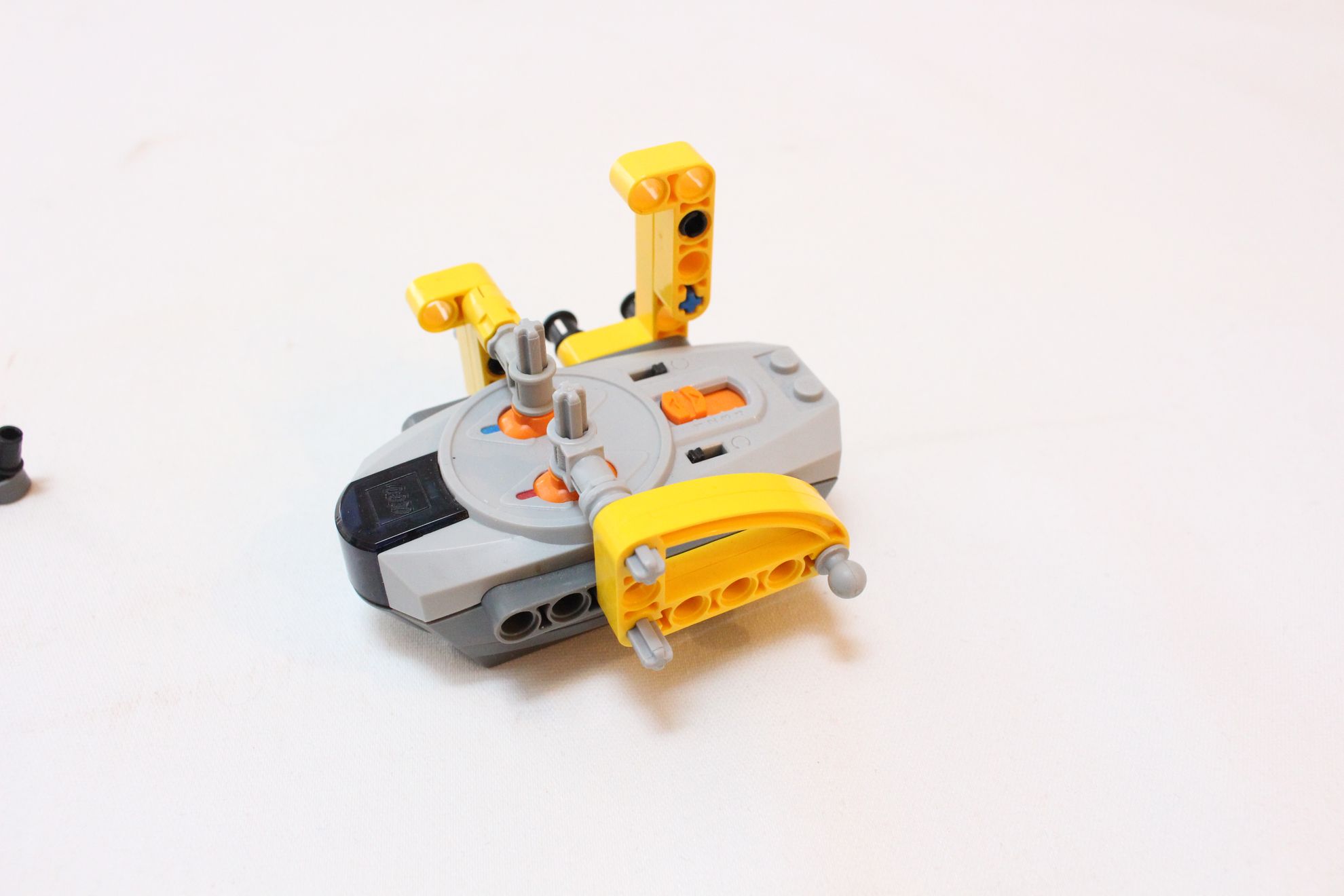

To finish, I would like to reproduce the principle of command of this vehicle, using a joystick. Of course in real LRV the joystick is on-board but I have made it outboard in order to remote the lego replica. It is based on the IR remote lego, using linkage to decompose the two actions : drives and steering (functioning shown in the video).

IMG_5306

To conclude, I am a big fan of space and exploration, therefore I am satisfied of this moc, it was not the most complex I have done, but have some interesting points. First the compact building of the chassis which carries the whole drive train with motors, then the folding system with coupling, the design with details and then the joystick which is very fun and handy to drive ! I have also tried to add a graphic touch in the picture to make thinking about lunar environment. But I did not manage to do the same thing with the videos because of the high noise in low light condition.

Building Instructions

I have made the photo sequence instructions then Thorsten Speltz has made the rendered instructions, many thanks to him ! Therefore I can propose you two instructions, one for free and one for sale. As usual, you can buy it for 10€ and then download the instruction immediately.

Rendered Instructions

Here is the complete bill of material in picture file :

But you can also checked it on rebrickable (or make any export you want)

Want to know if you can build the Lunar Rover ? The Lunar Rover  has been indexed to rebrickable, check it !

You can buy the instructions with the following button for 10€. You can also buy other building instructions and get an automated discount. You will get 15% off for 2 PDF, and 20% off for 3 PDF on the total), available for all the instructions for sale on nico71.fr.

See it on the shop :

Lunar Rover
10,00  -Excl. Tax
A LEGO Technic remote controlled Lunar Rover, features 4x4 drives, 2 axle steering, controls with 2-axis joystick and folding deployment system.

Erratum : page 8 step 16 : use a black axle 4L instead of the grey axle 5L. Rebrickable partlist update,  BOM in the PDF not updated.

After your payment, you will be redirected to a page for downloading your instructions, and will receive also the link to download by email. Please check the spam box and be patient to receive it. If you have trouble to download your copy of the PDF after payment or open the document, do not make a paypal dispute, please contact me using the contact form. The link to download the instructions expires within 24h. Contact me if you have lost your instructions. Note that you can print it, but not copy or distribute. Thank you for supporting my work 🙂

Here is some preview of the building instructions :

Photo Sequence Instructions

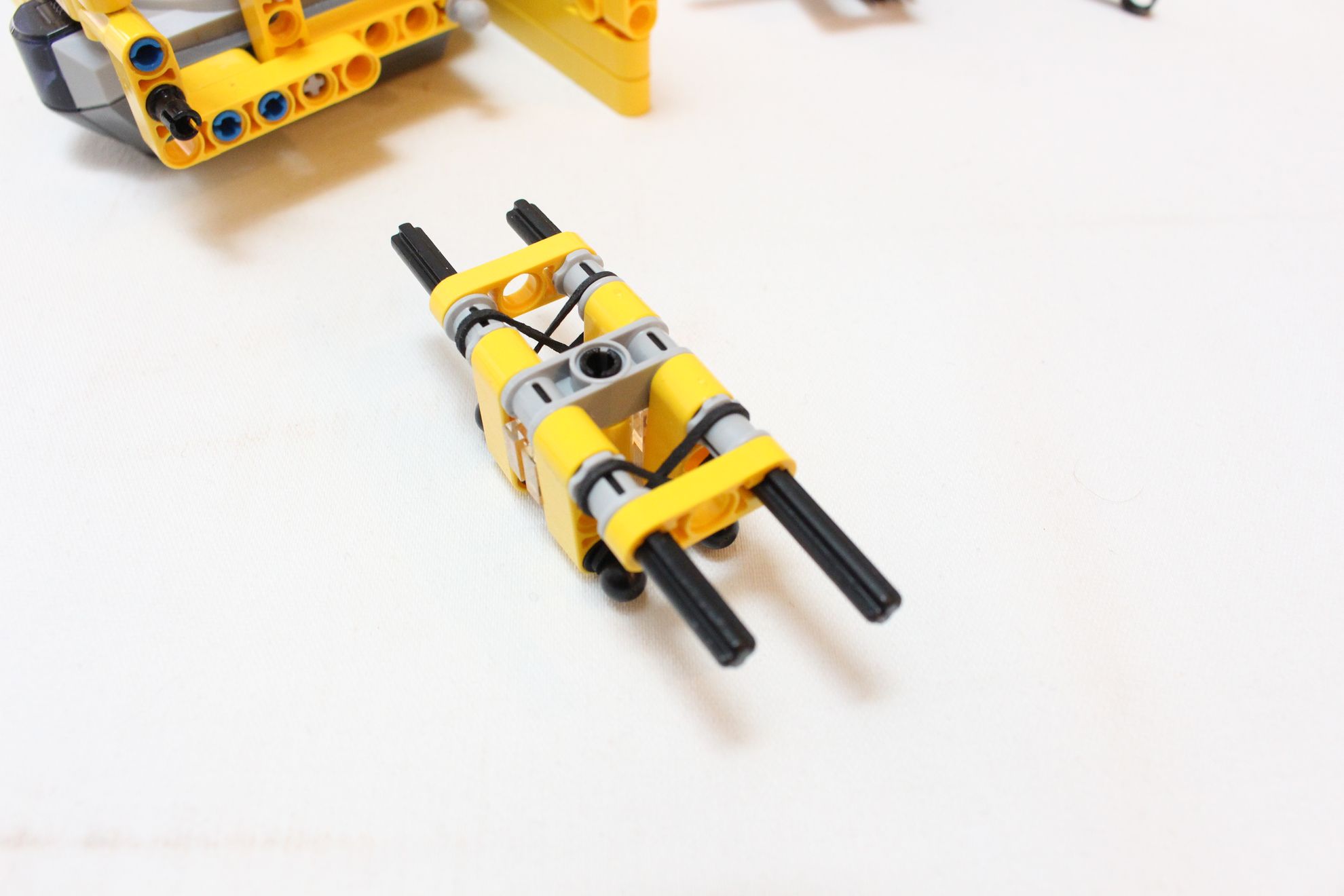

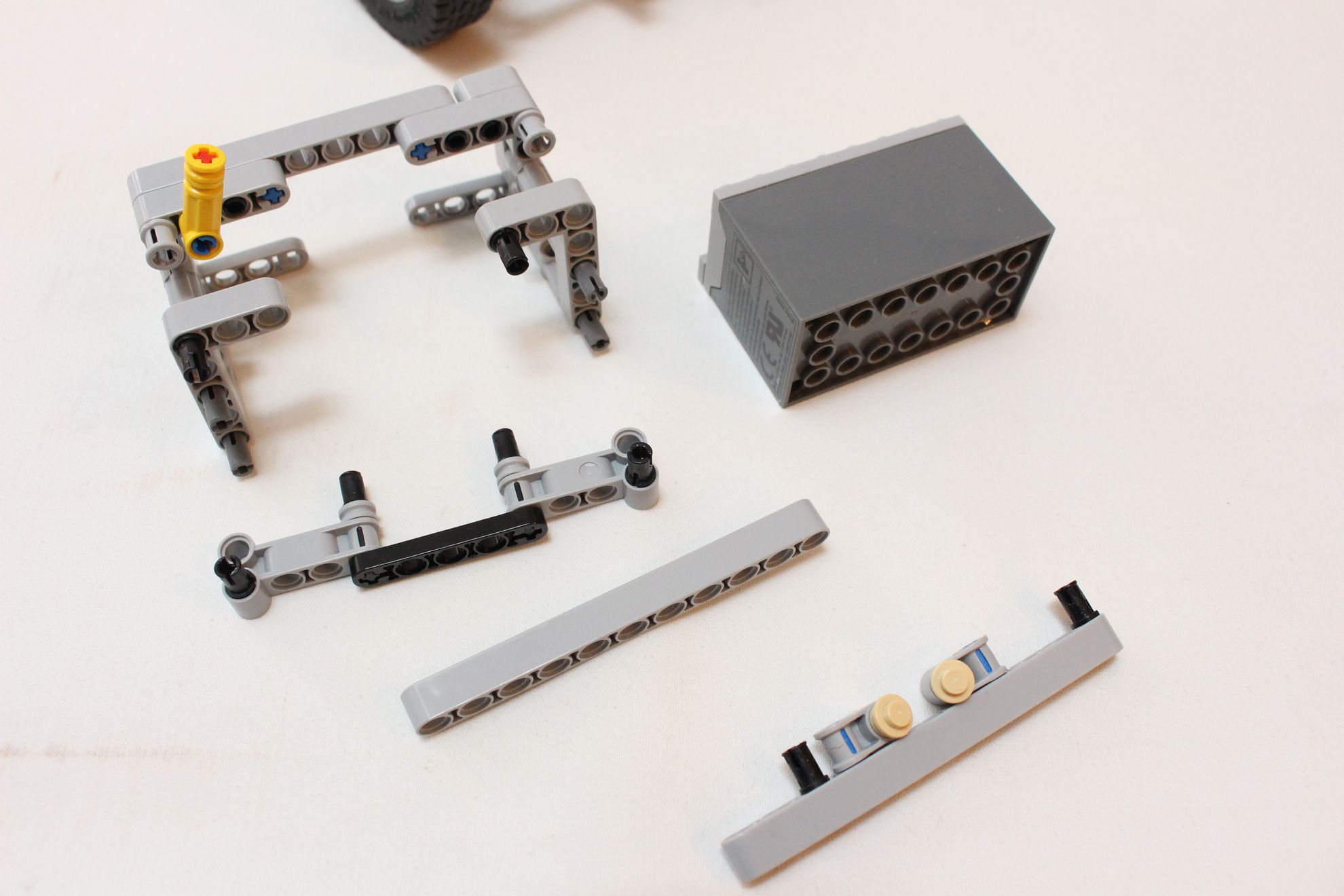

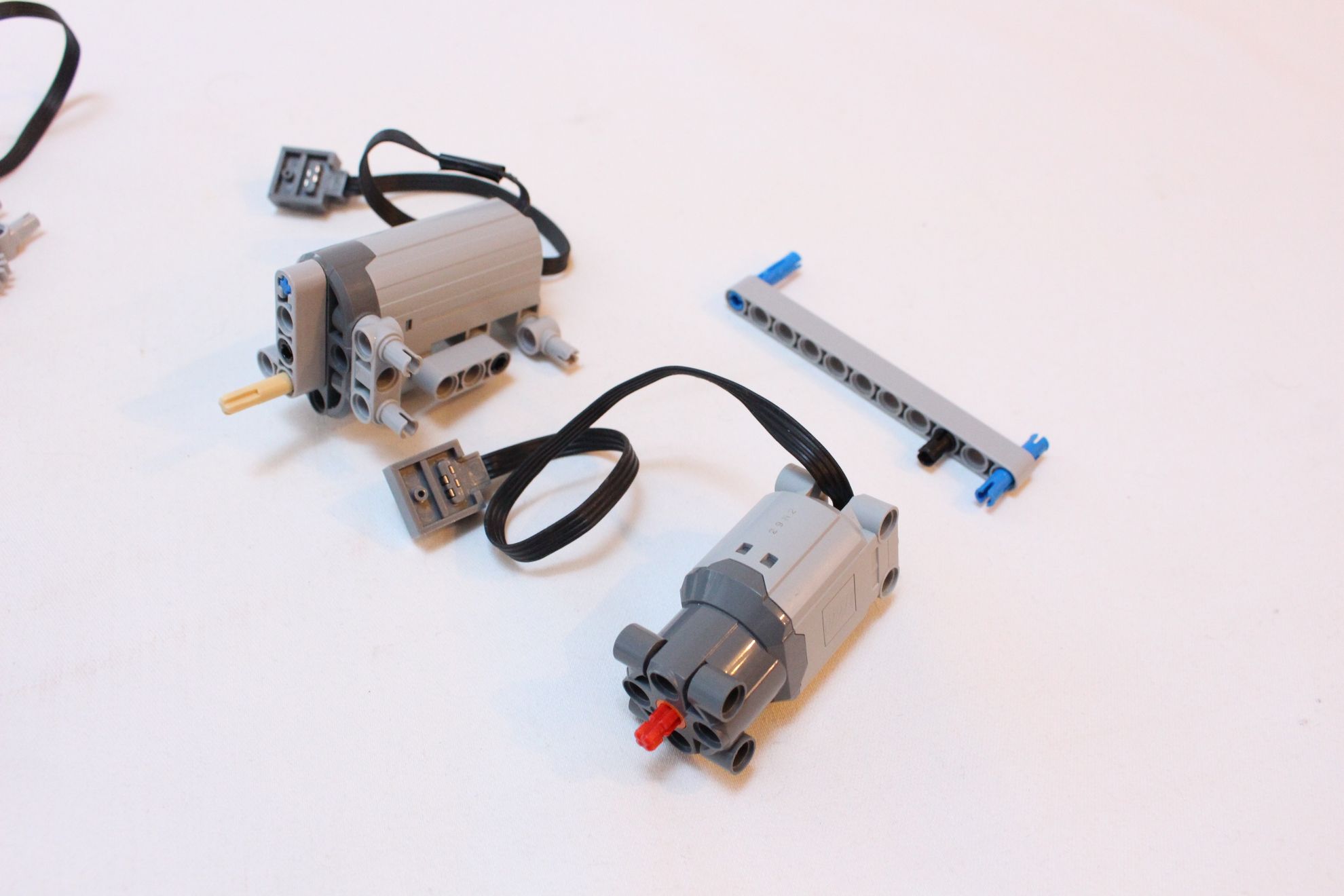

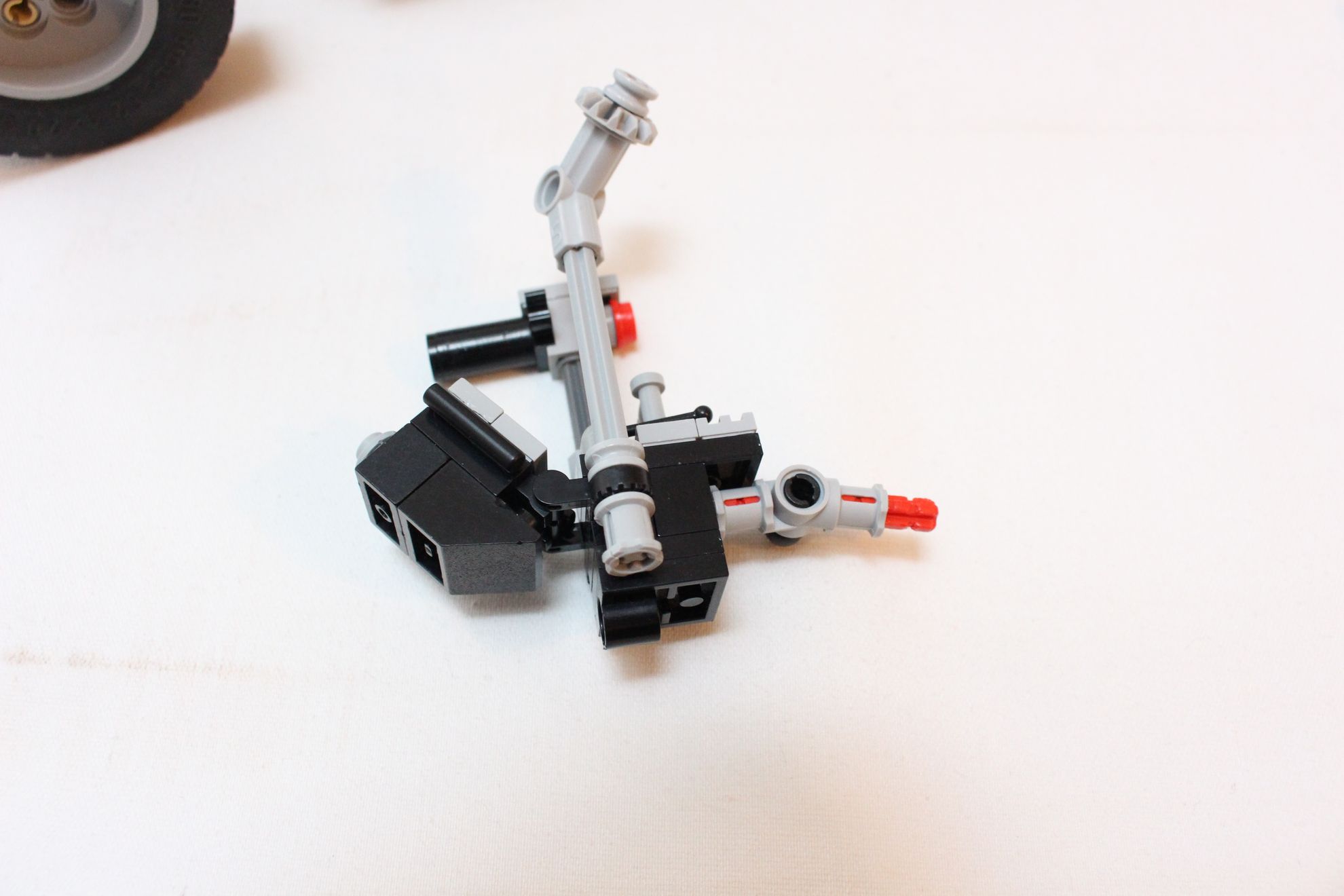

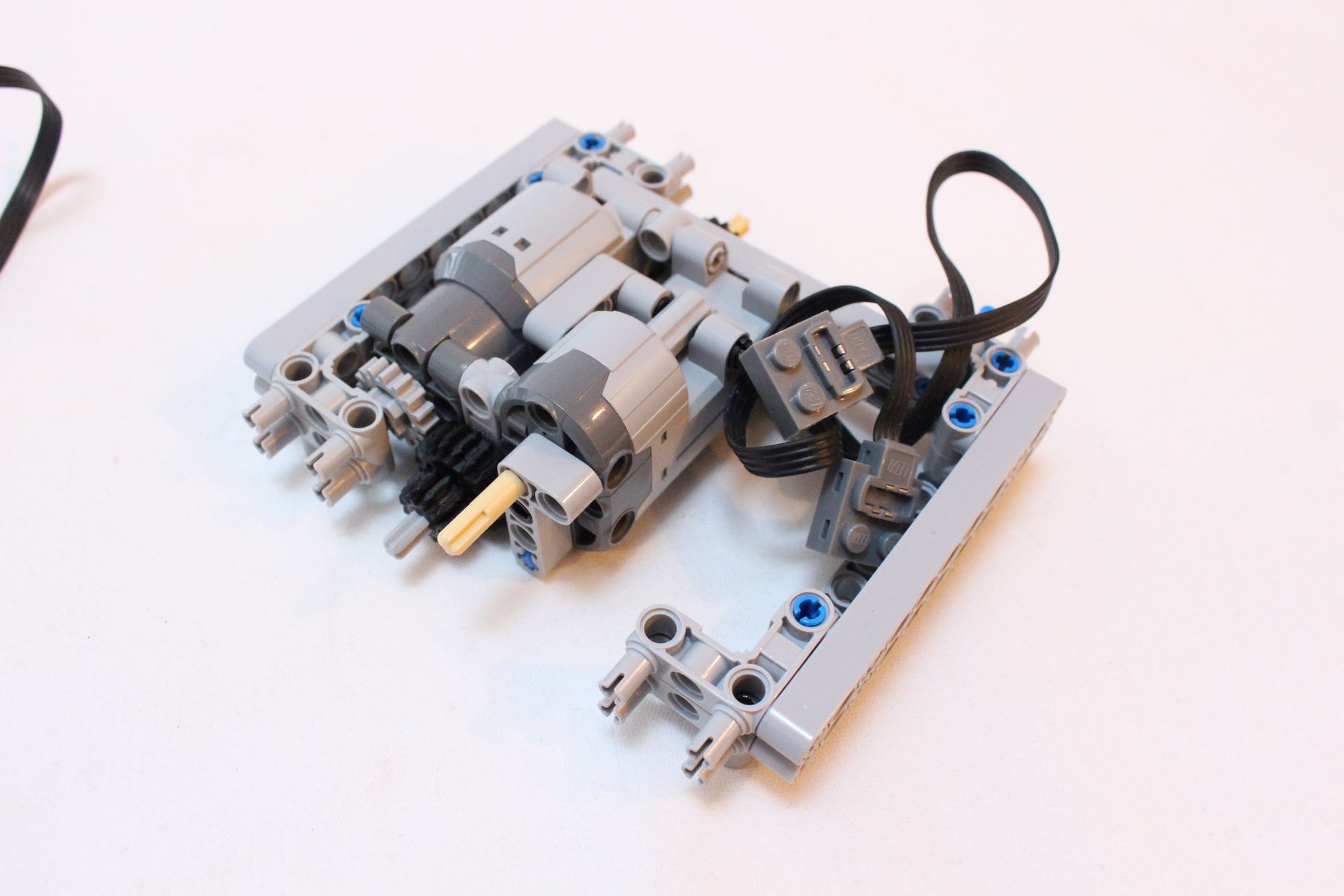

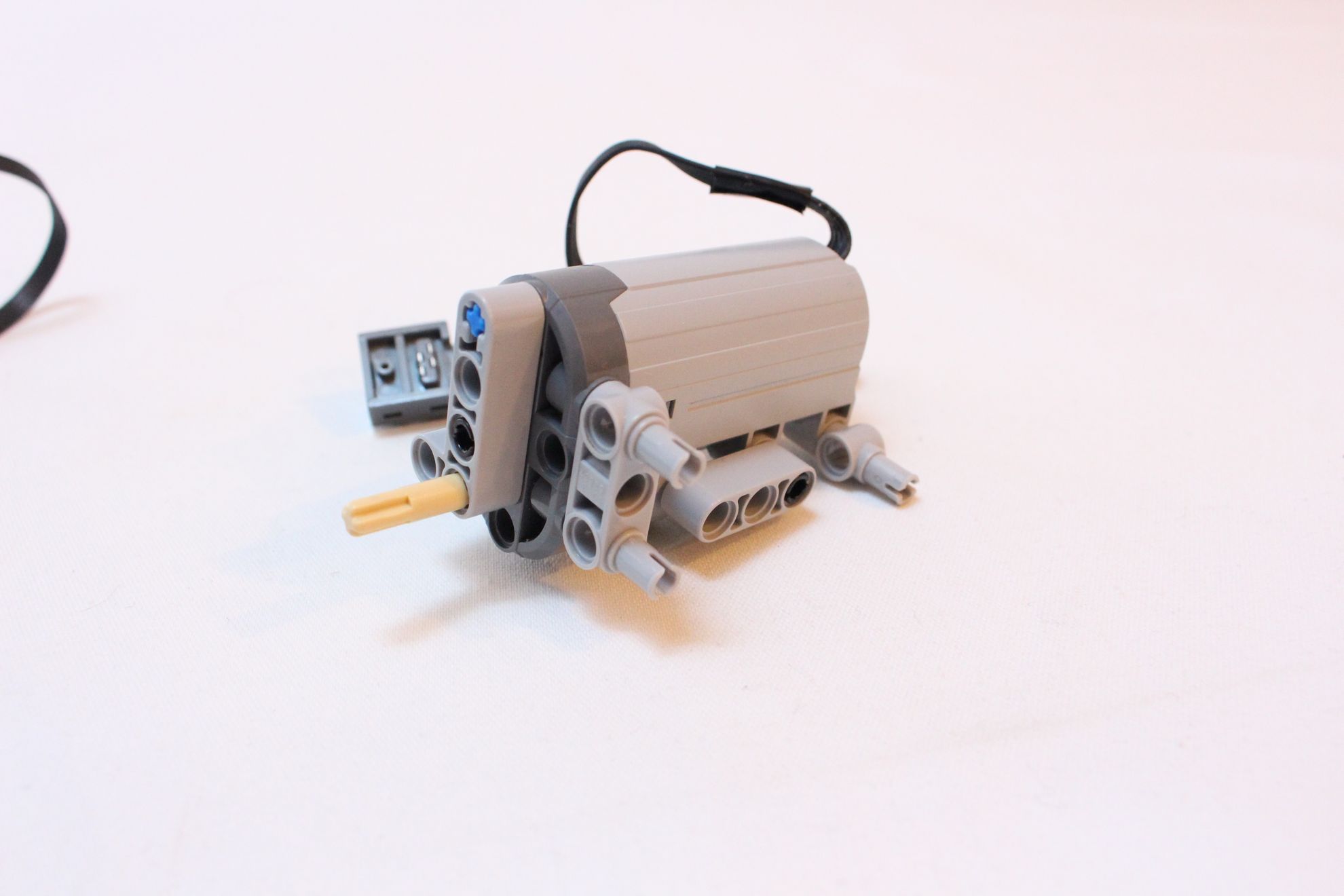

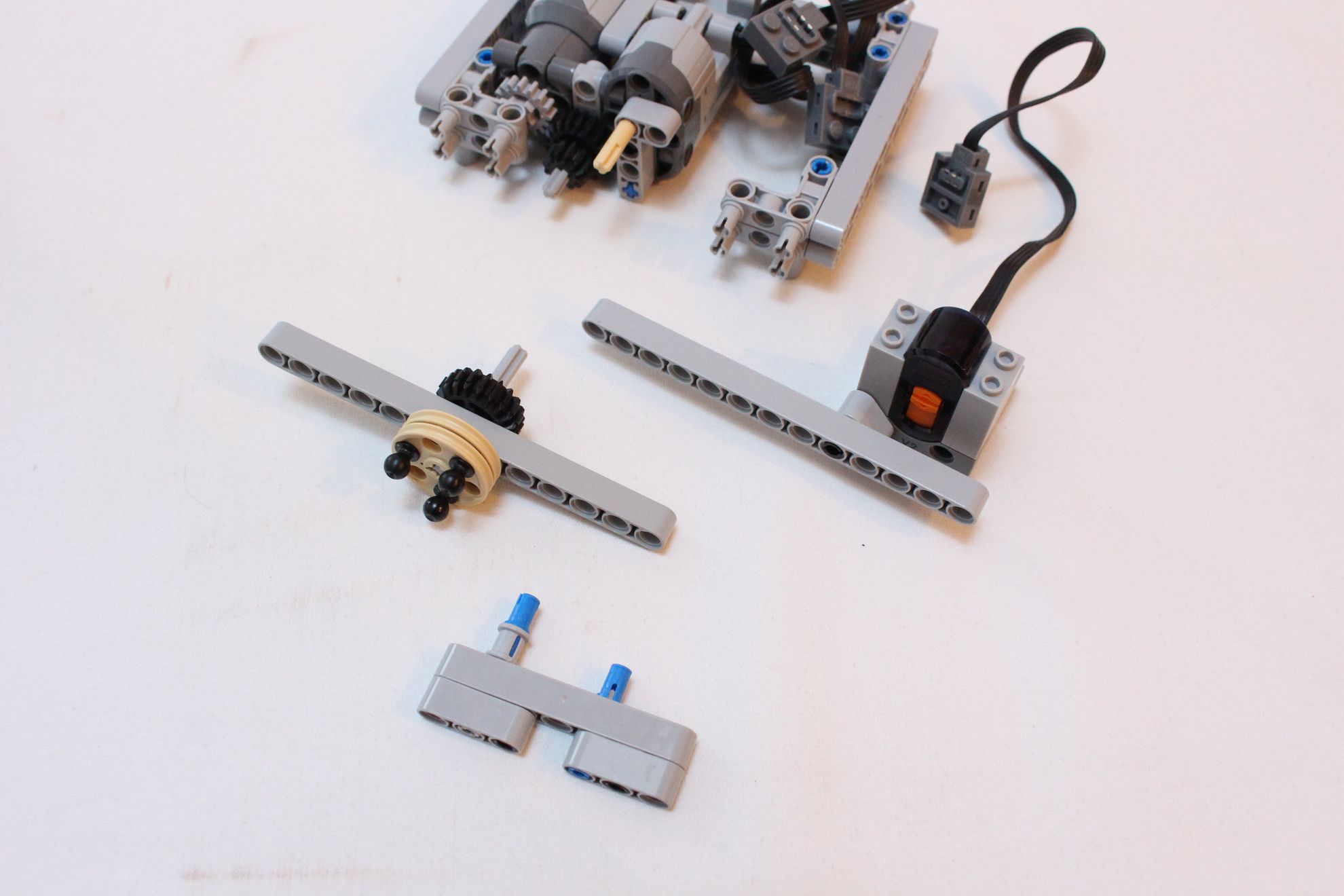

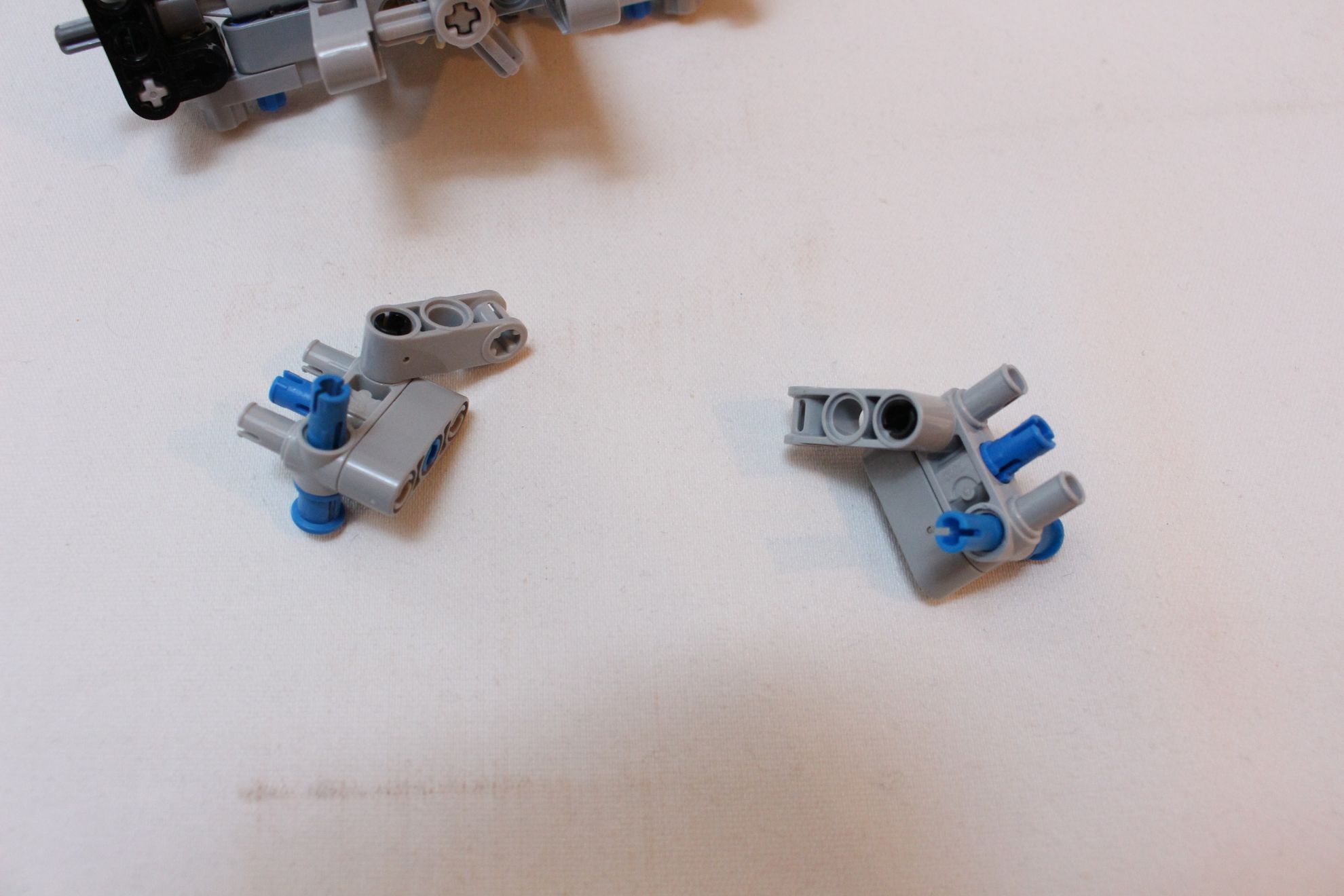

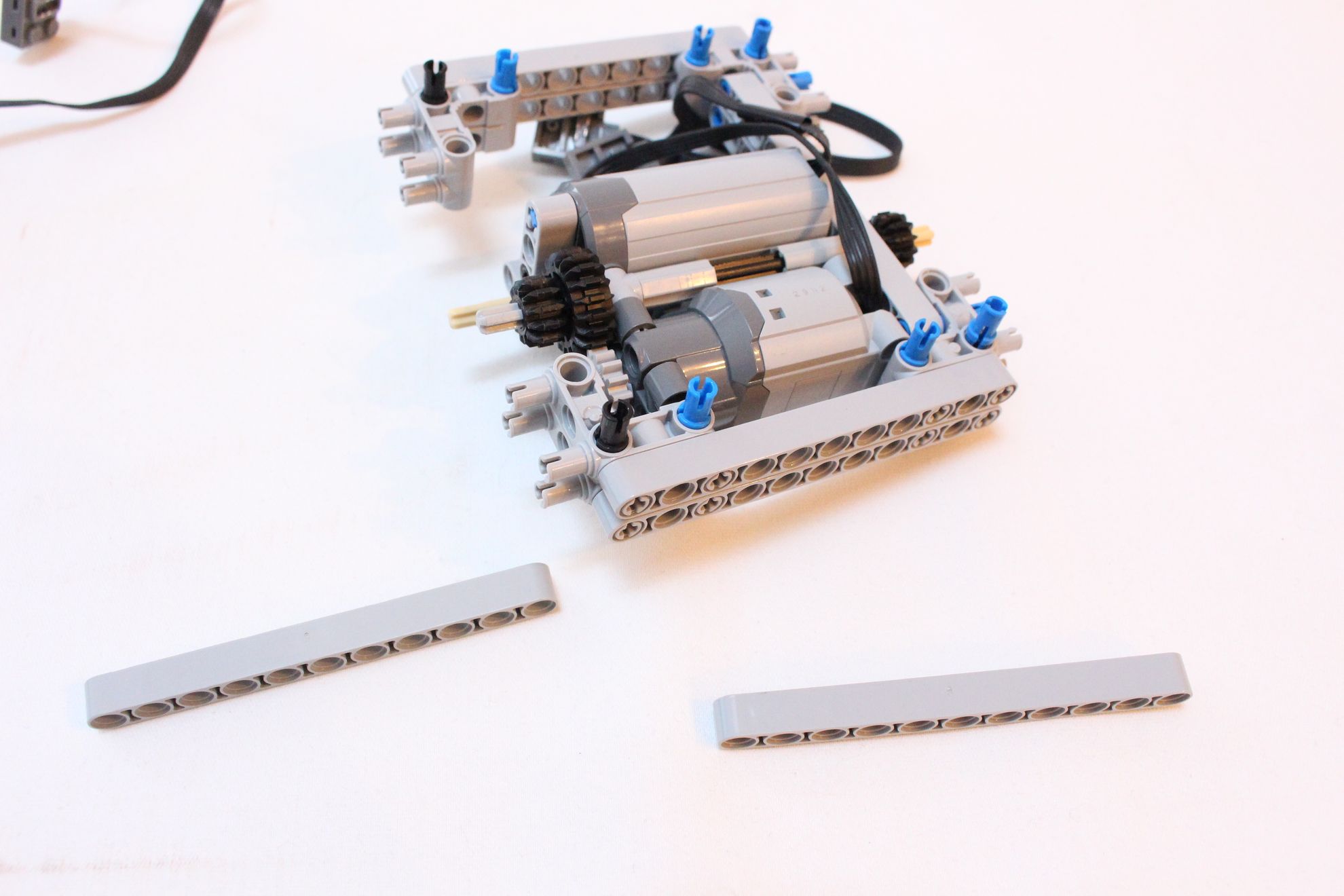

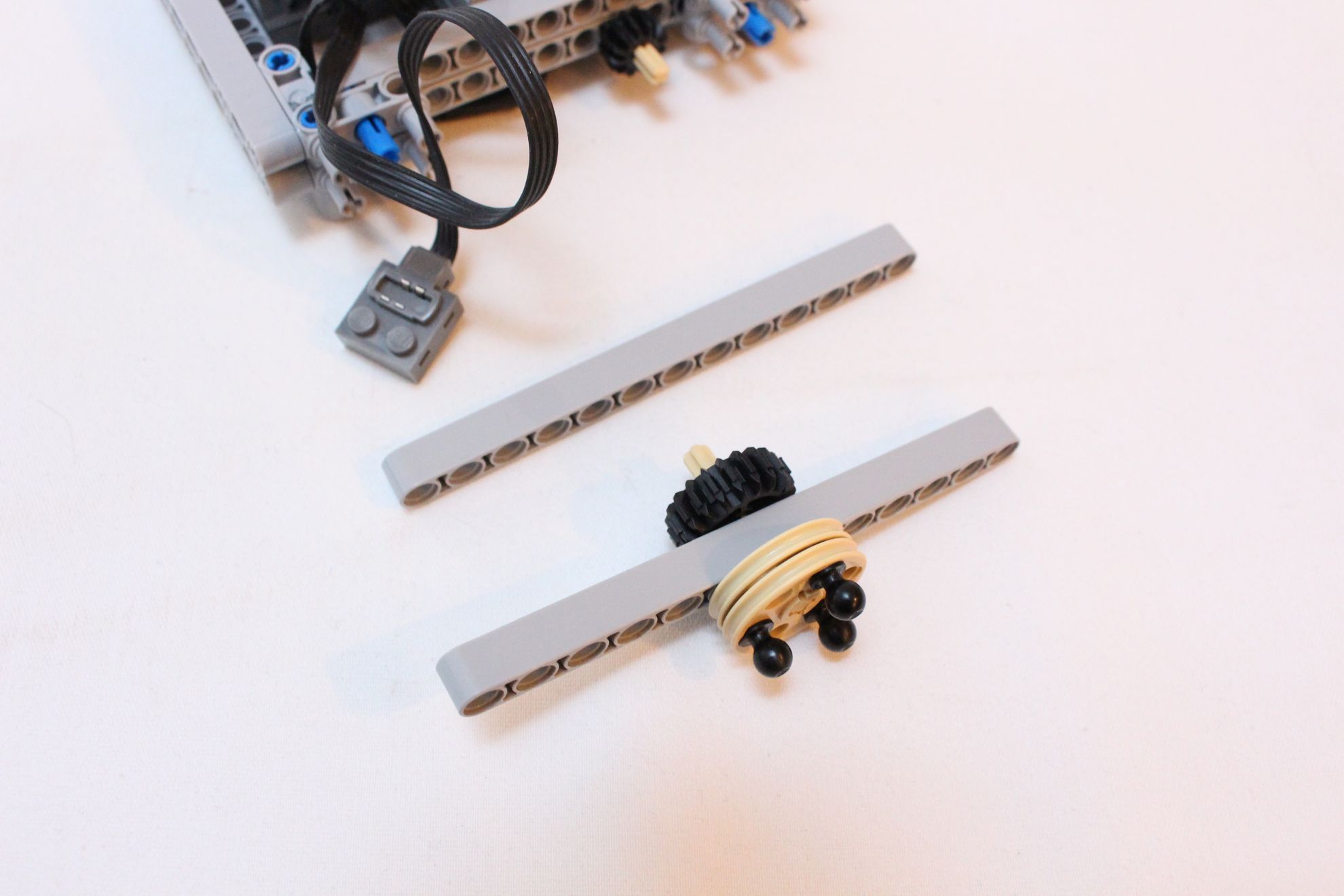

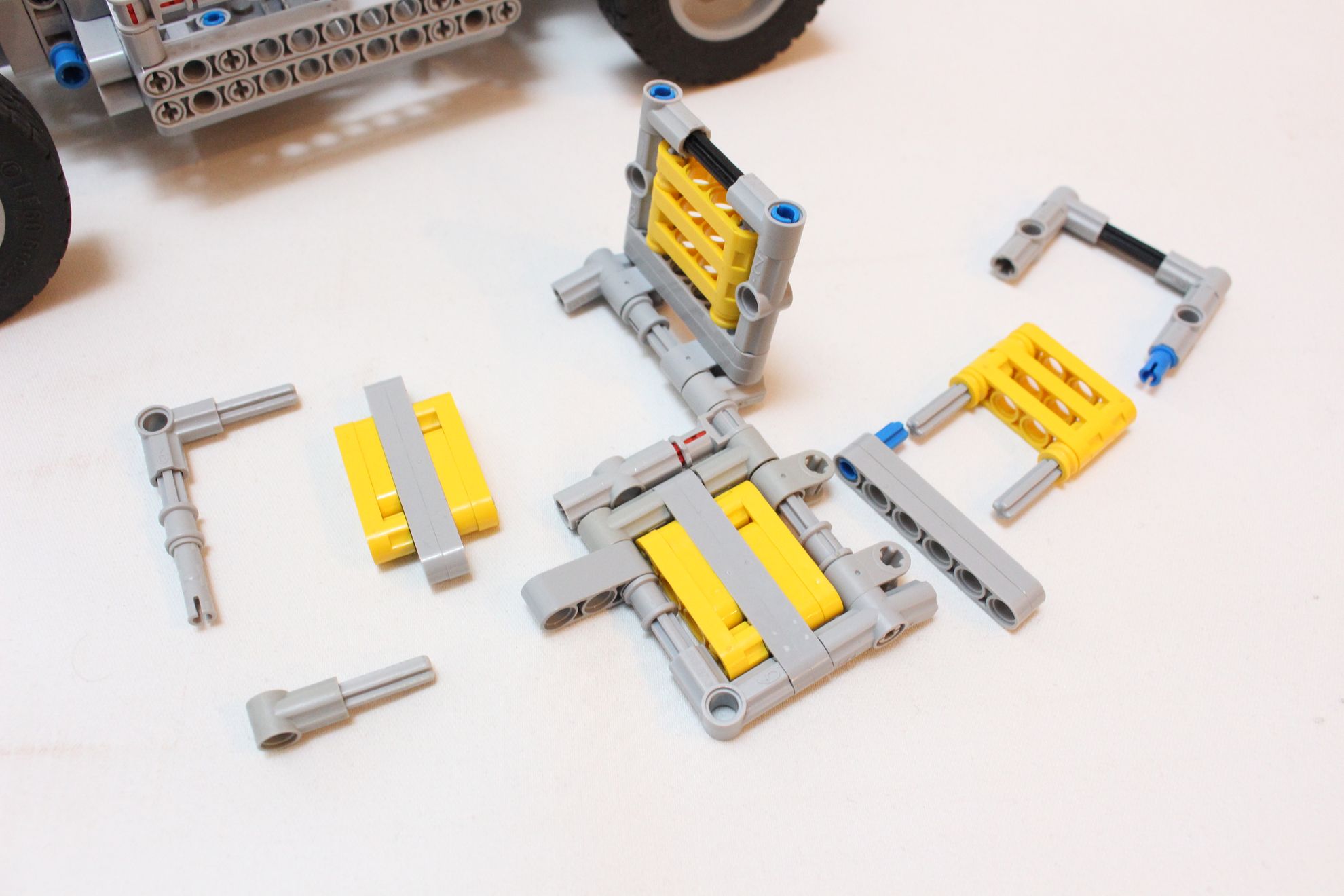

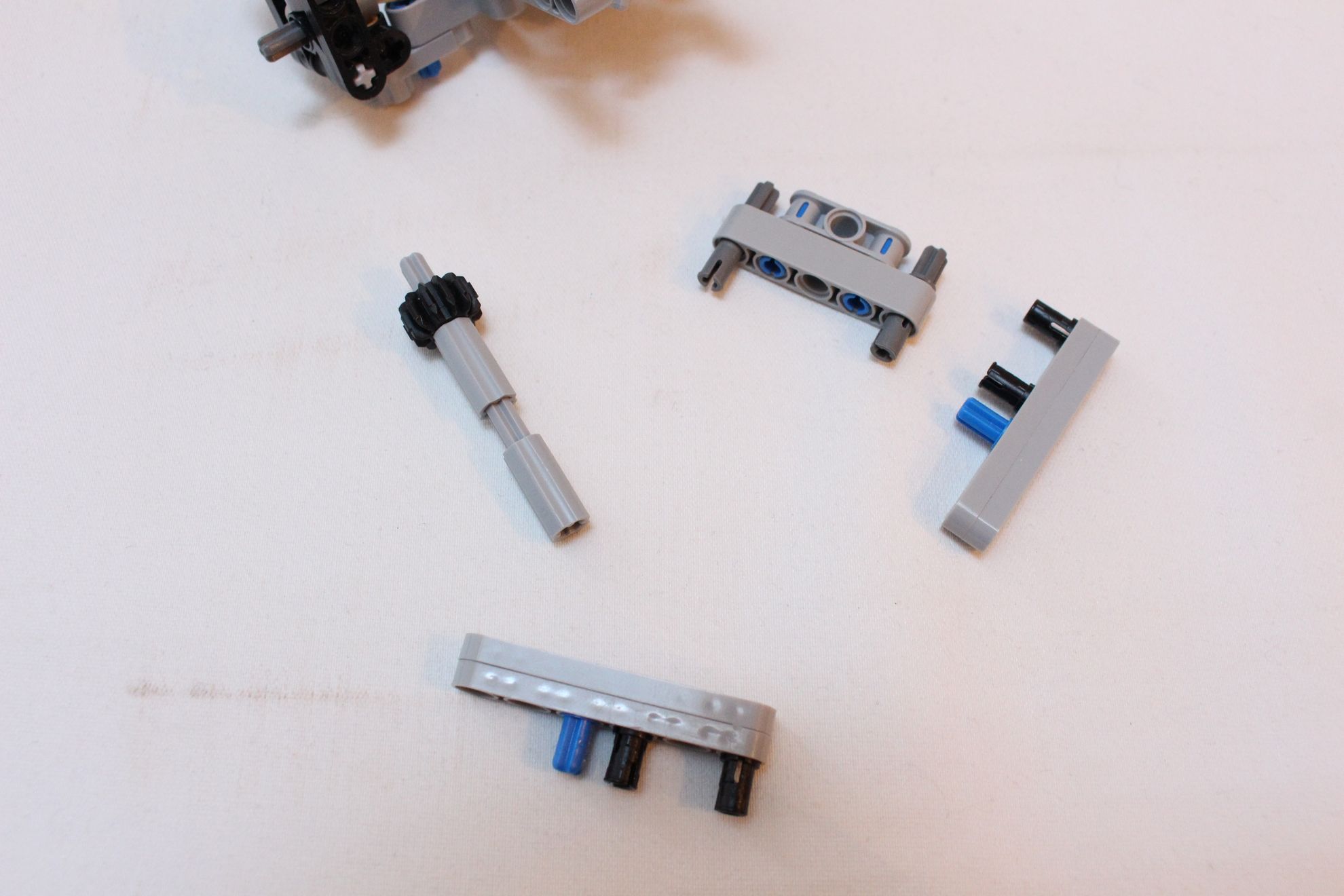

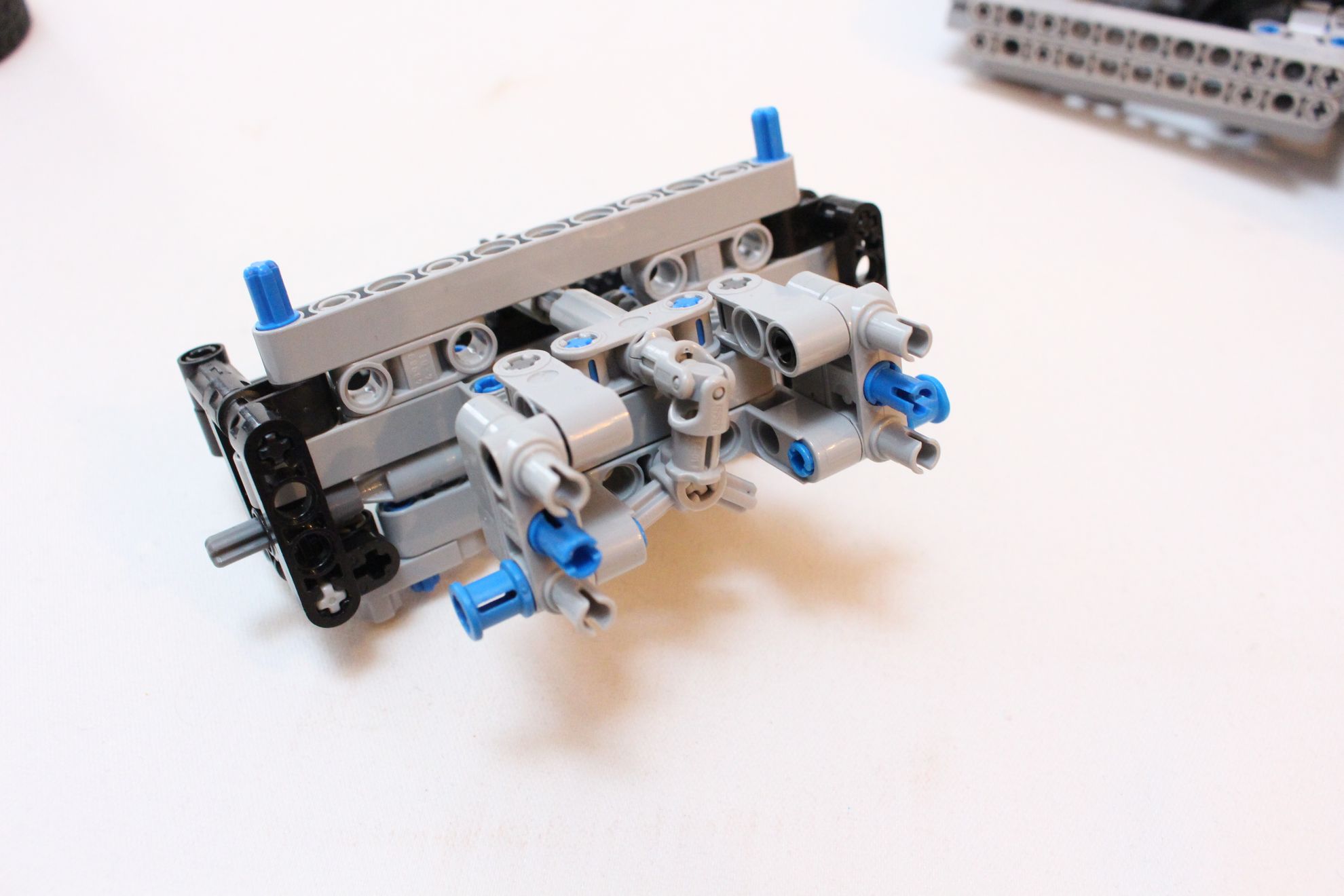

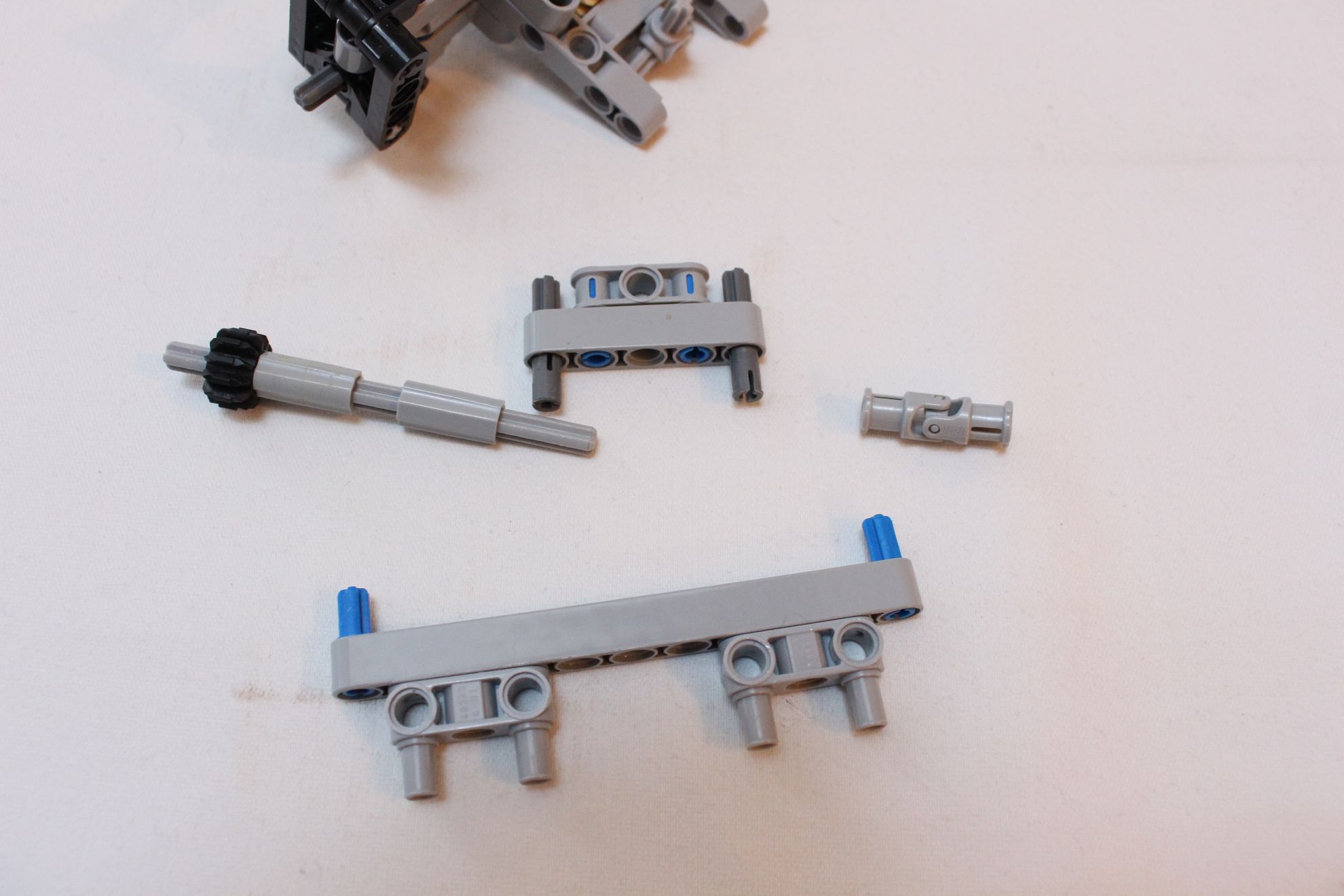

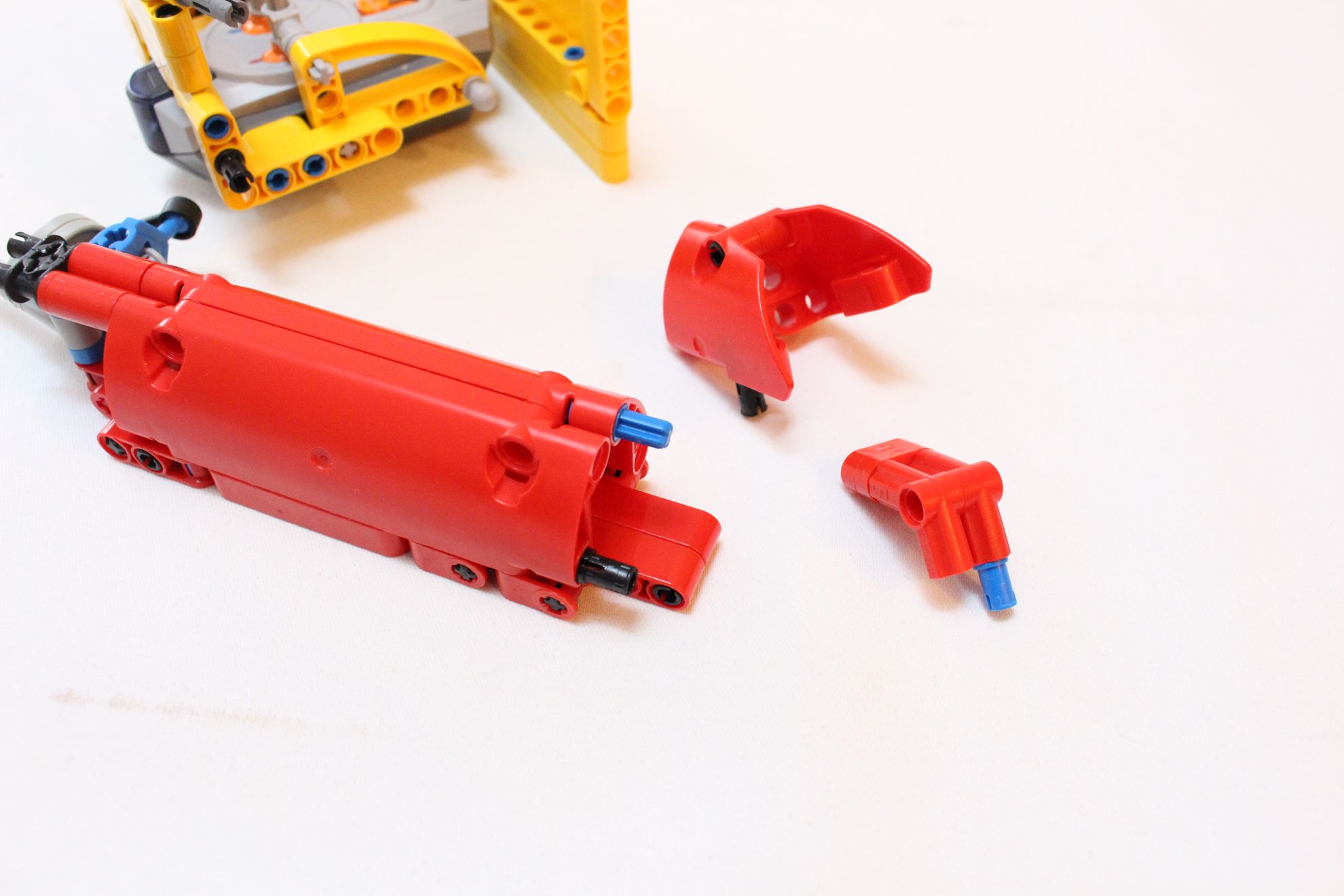

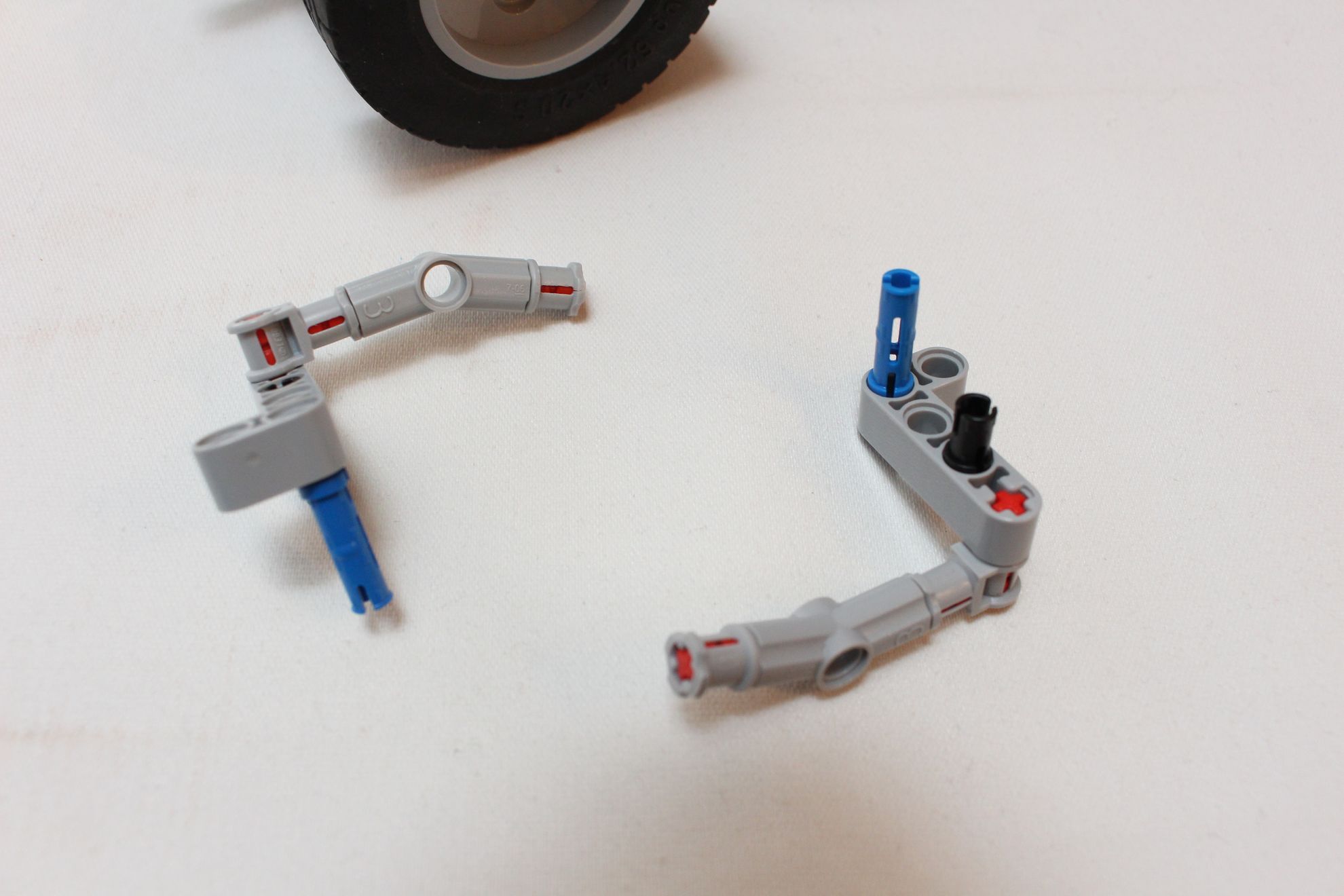

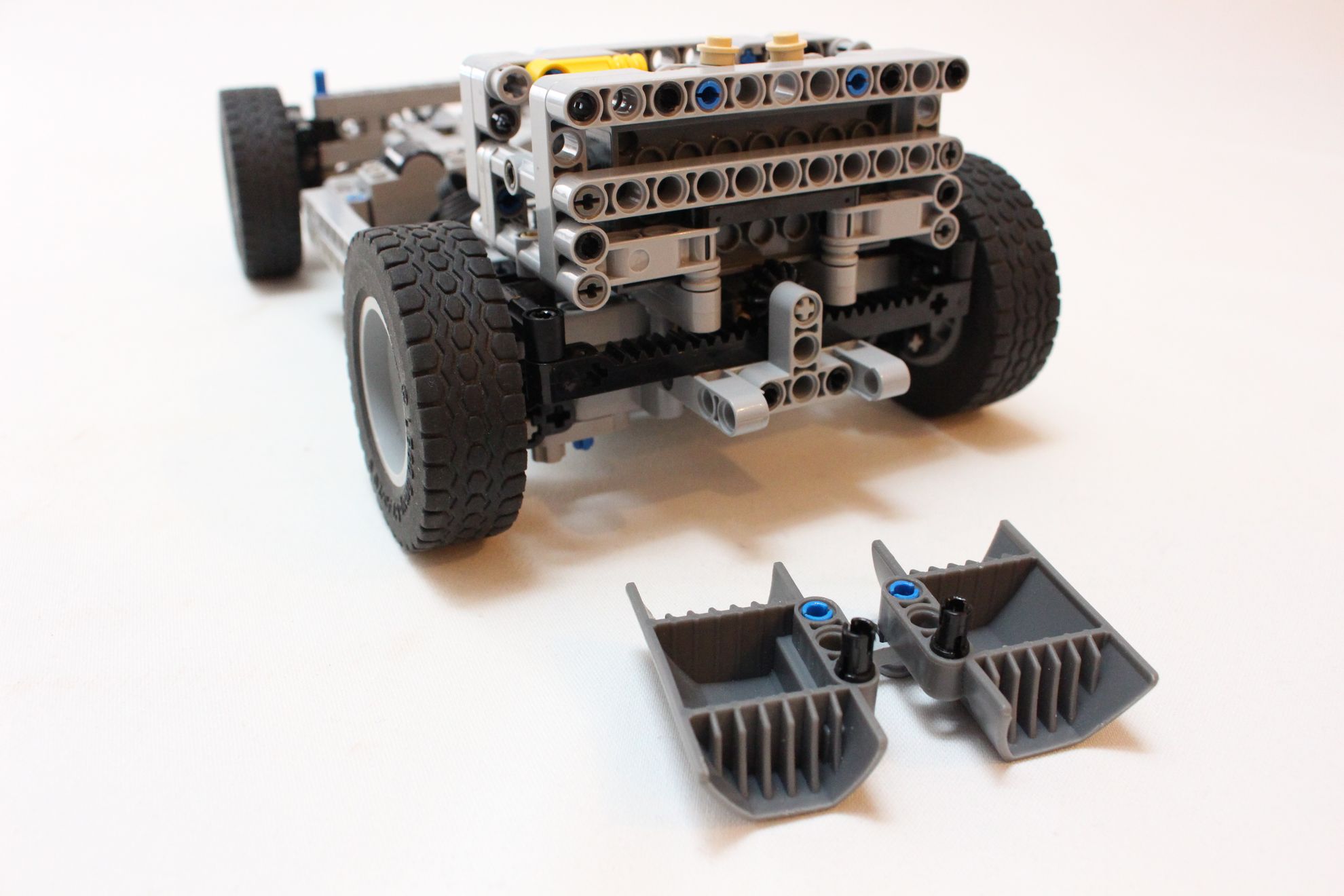

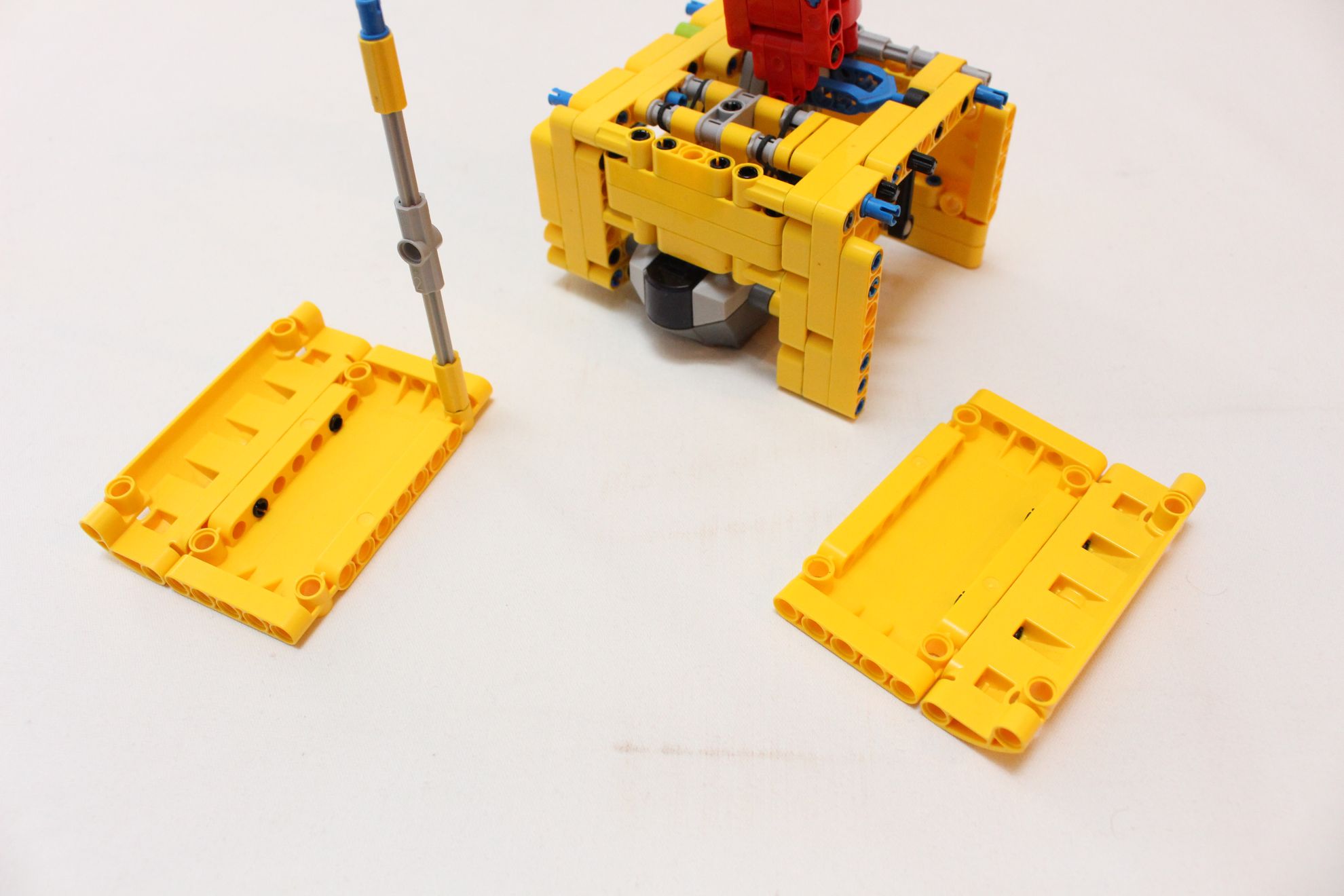

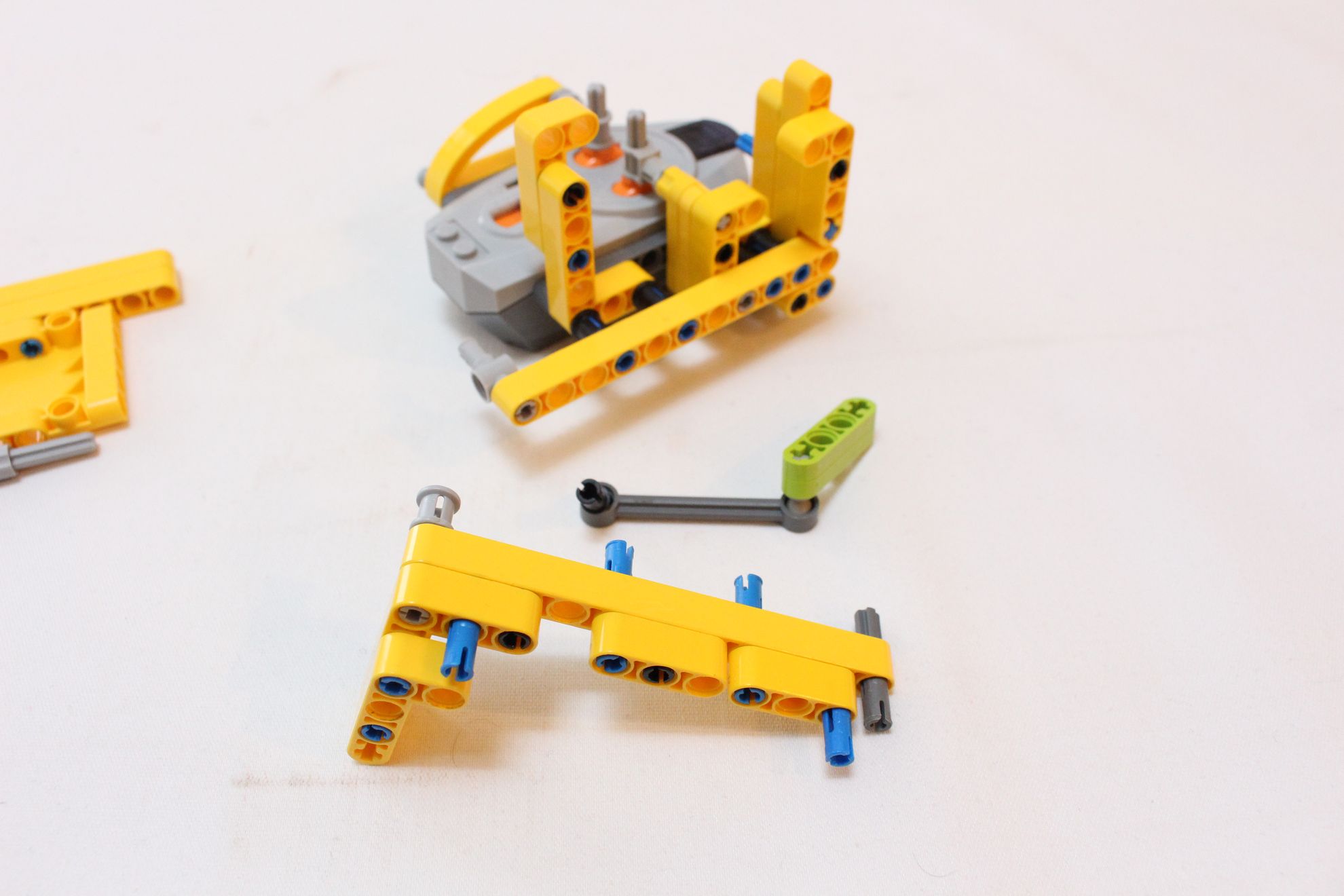

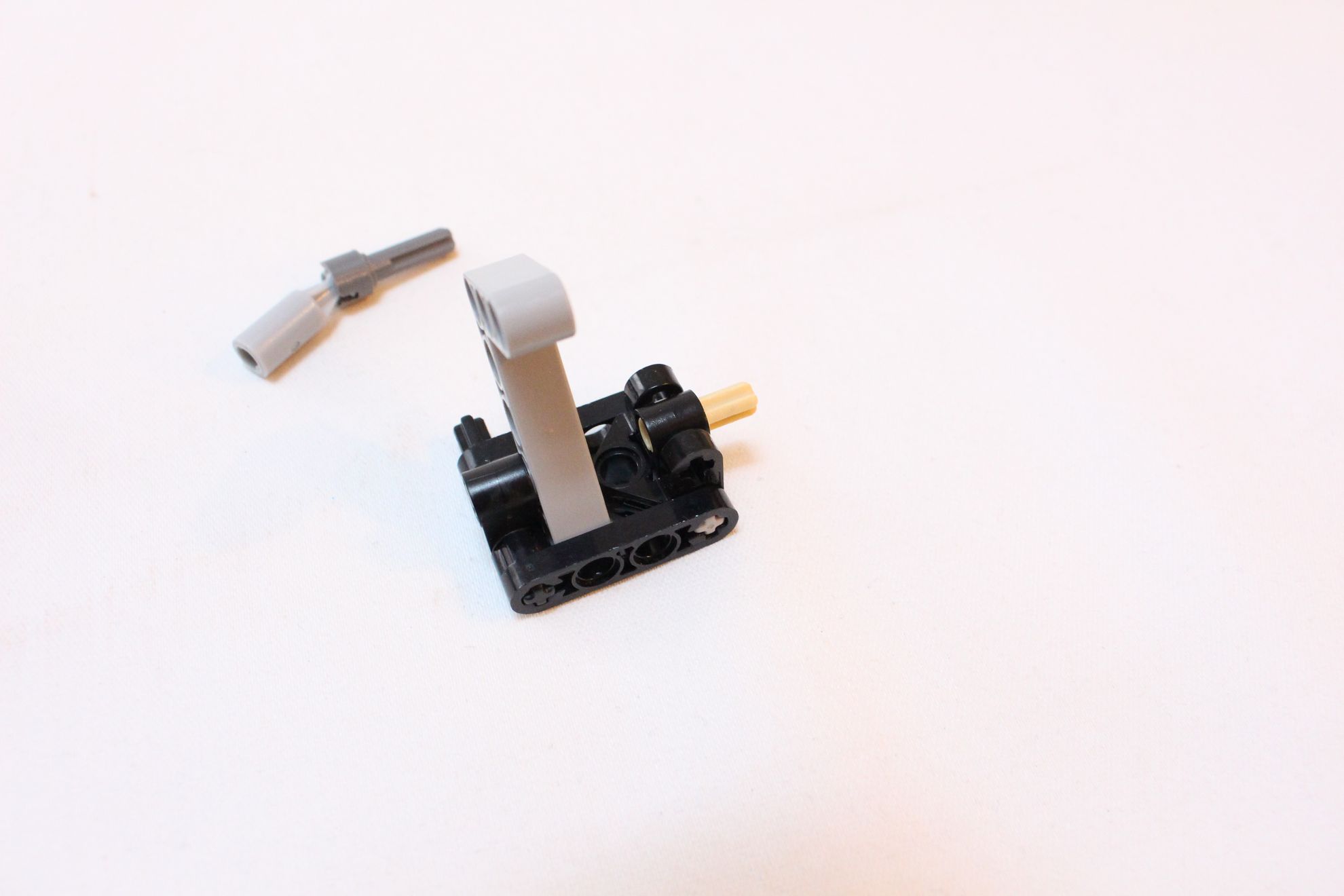

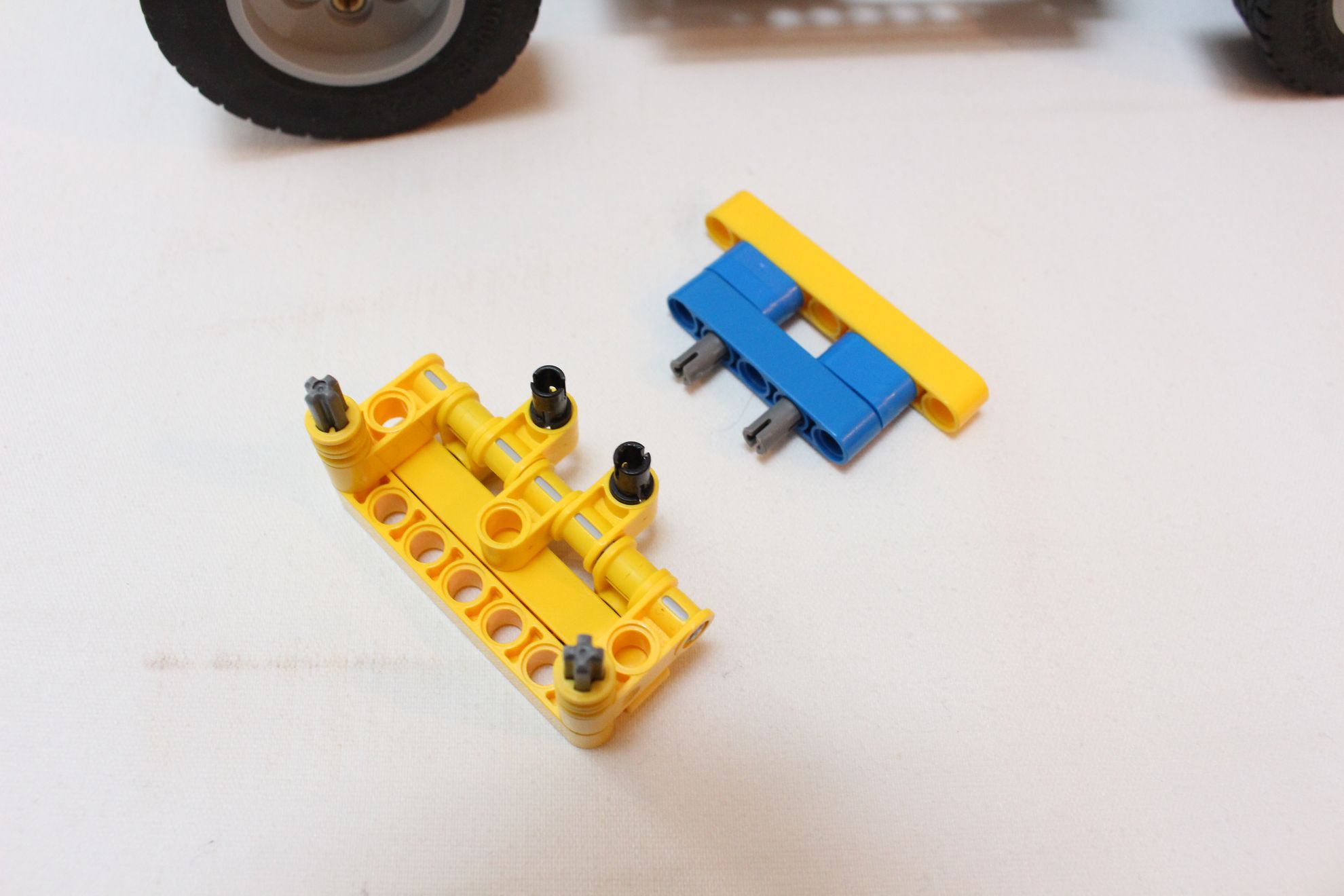

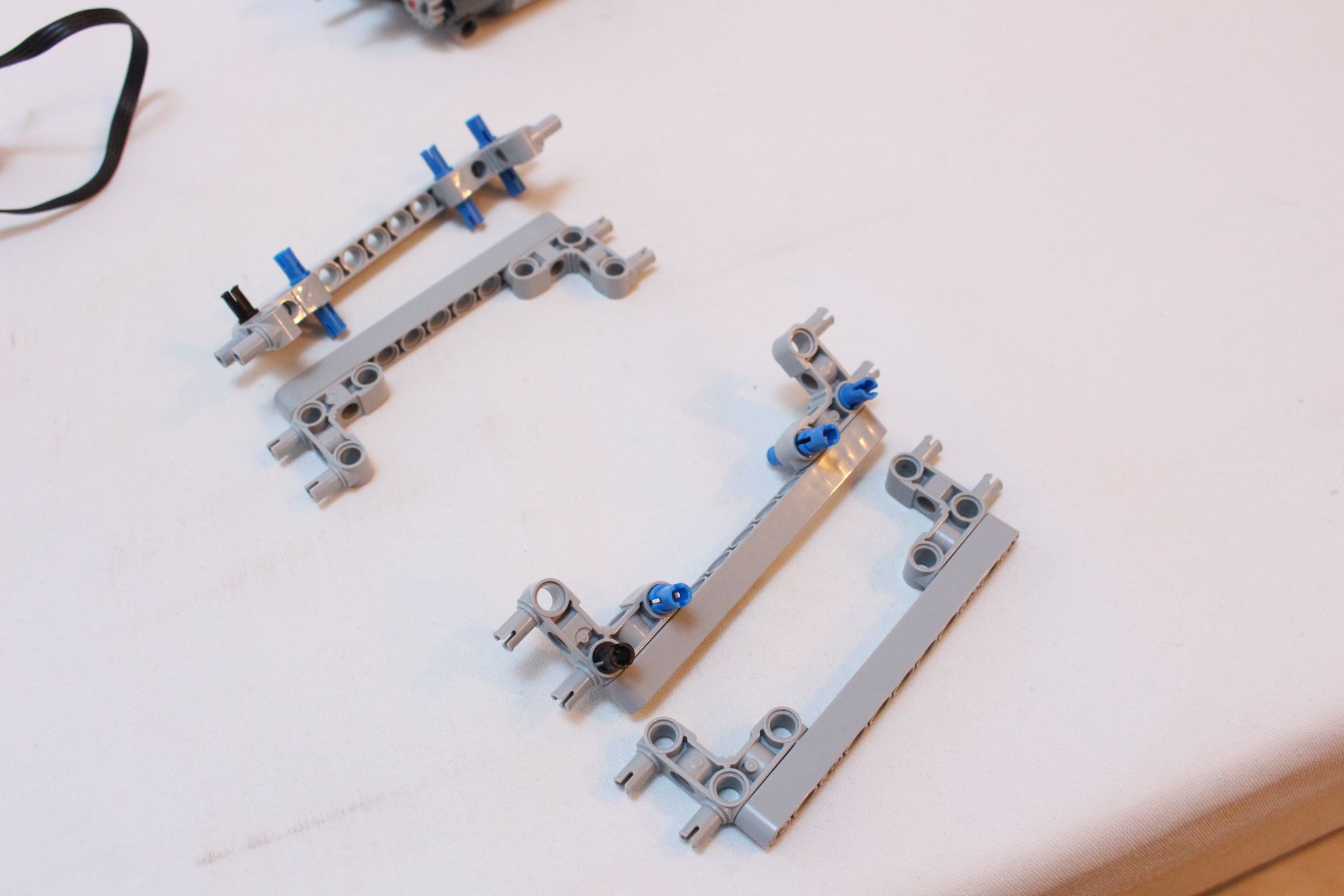

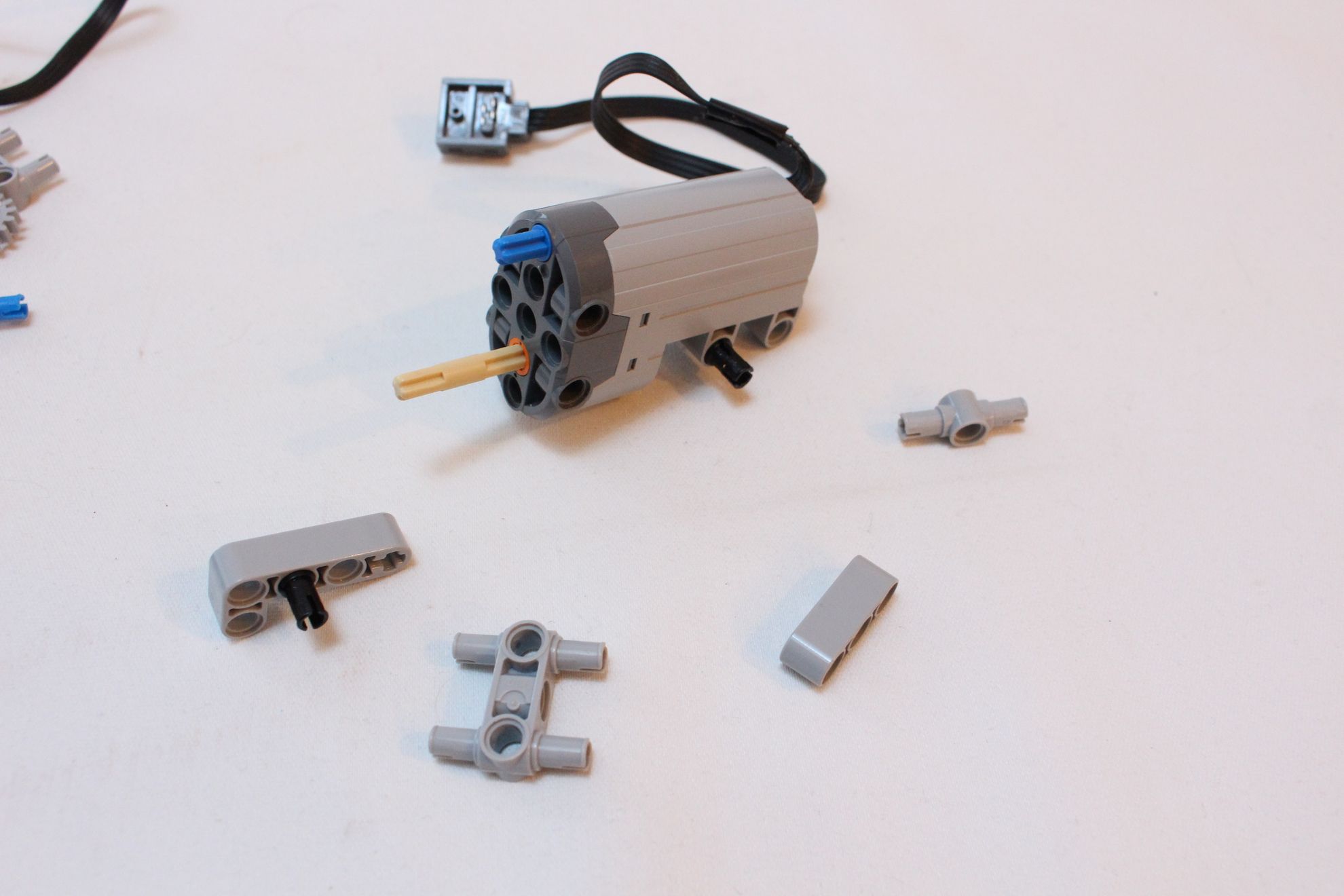

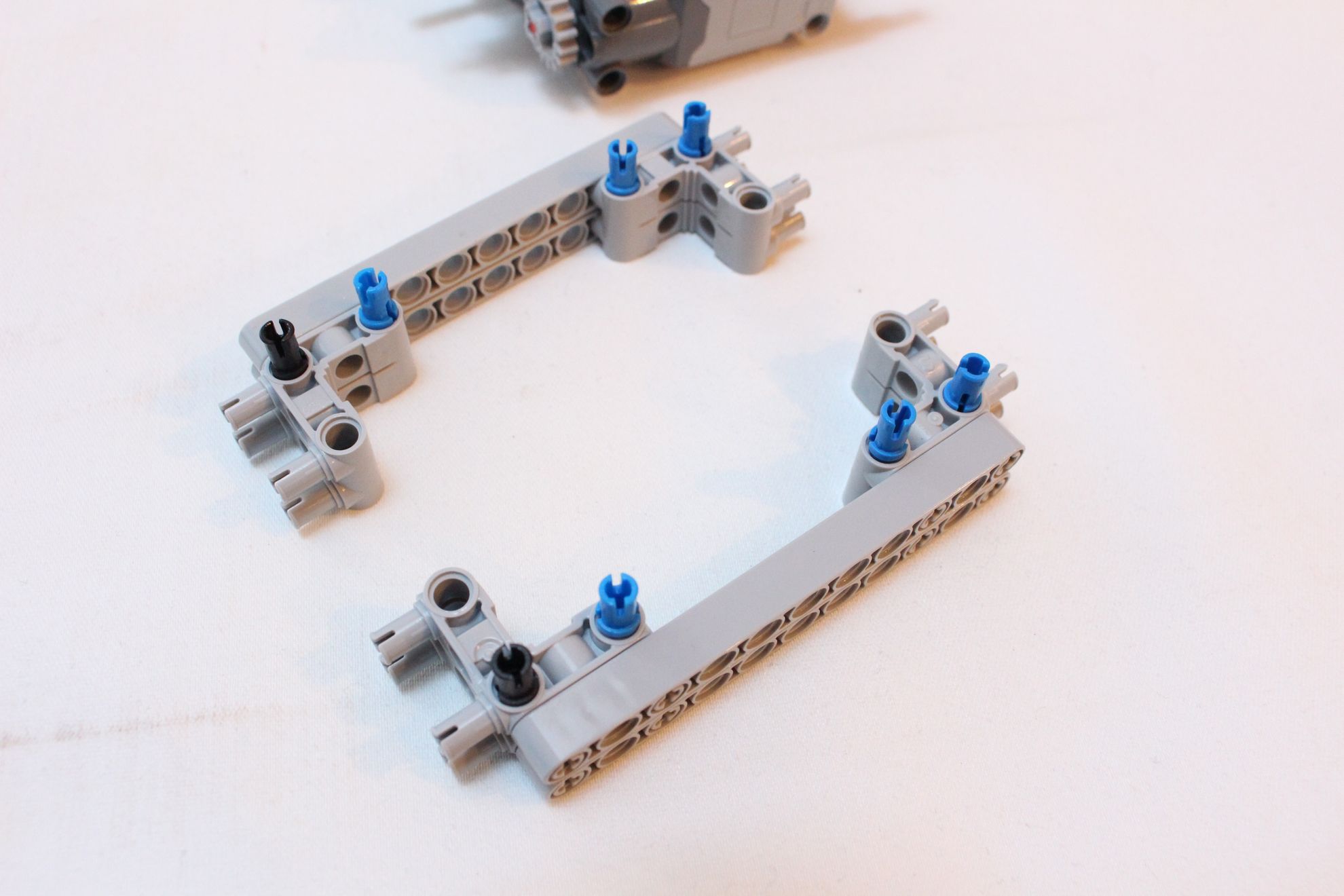

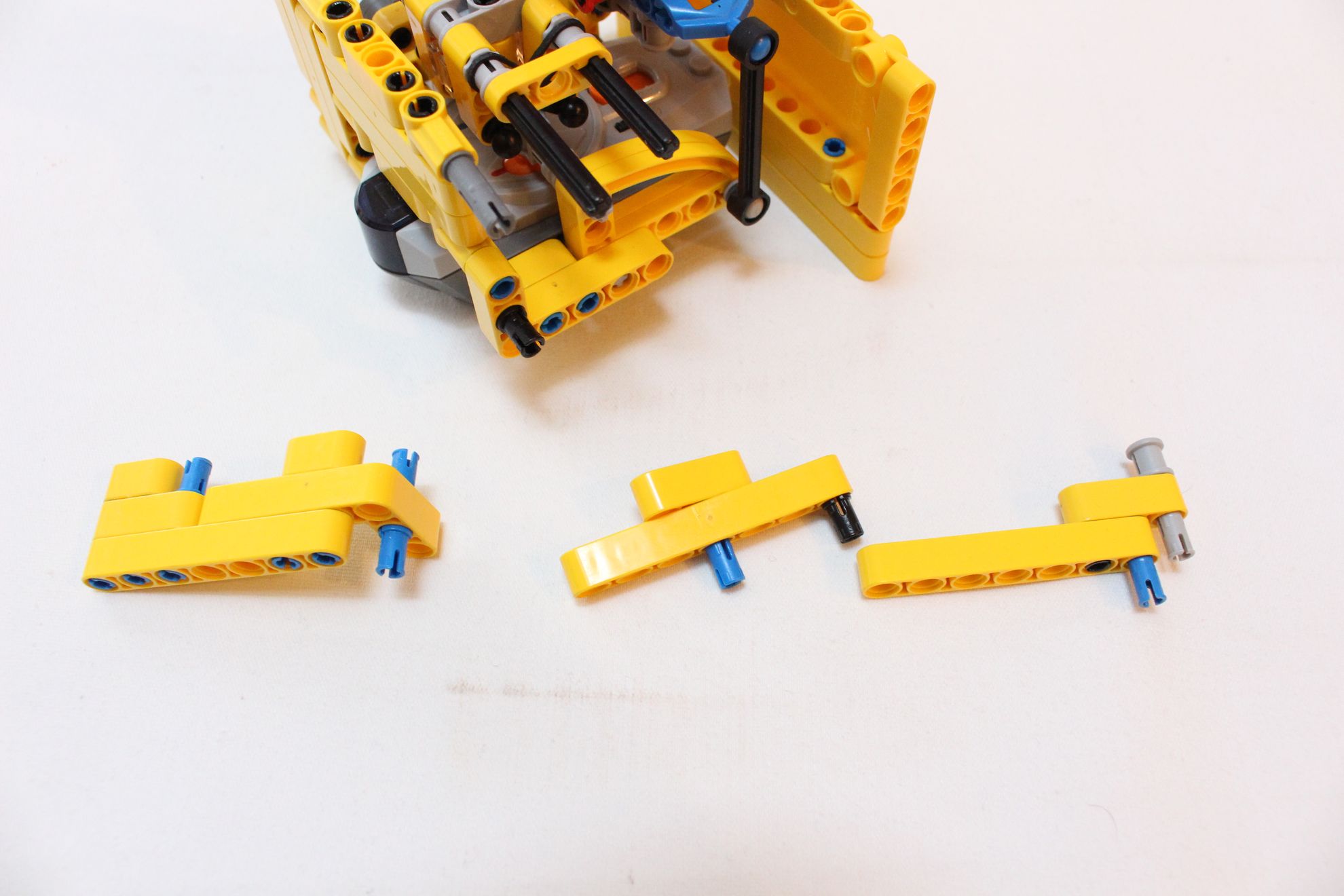

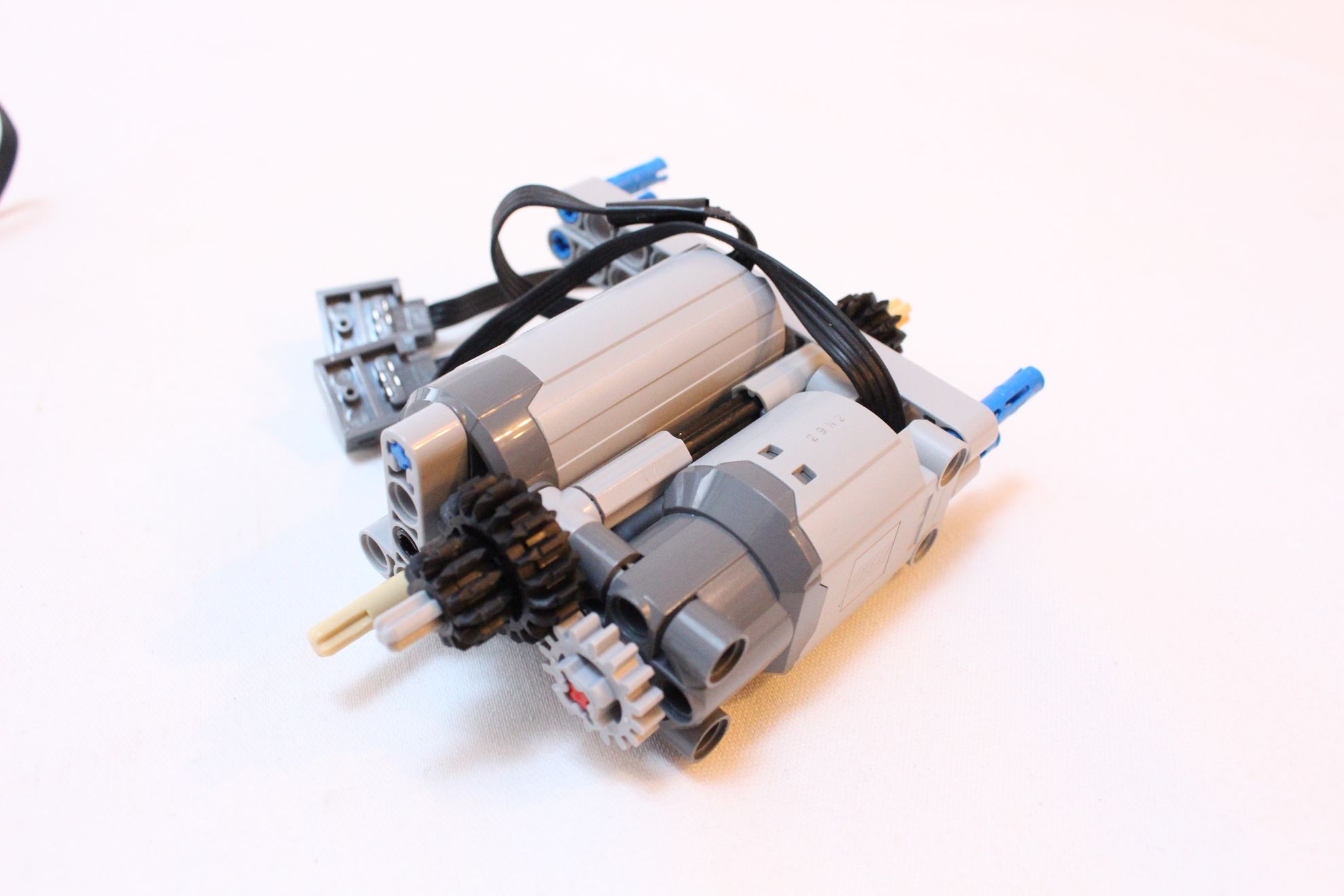

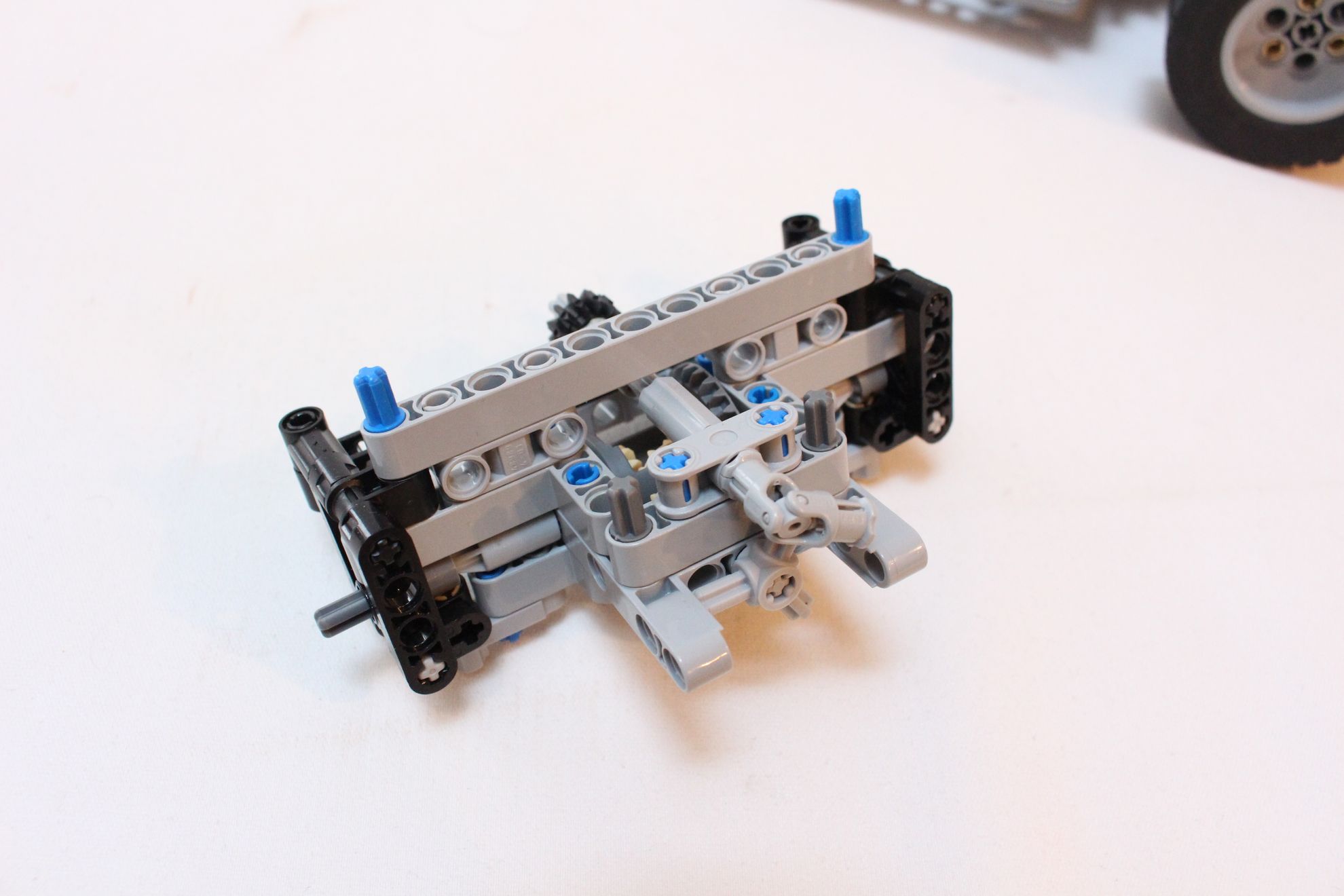

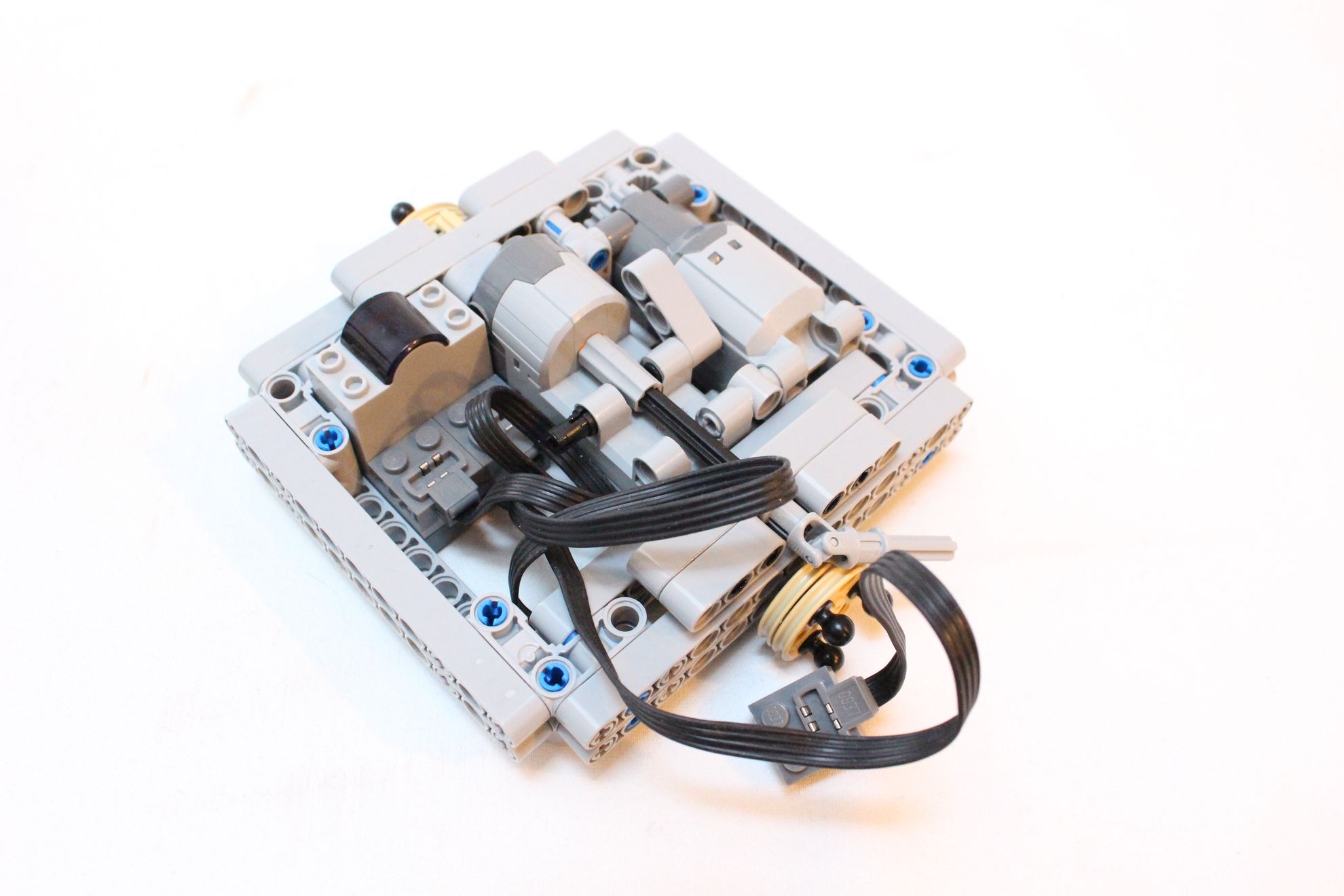

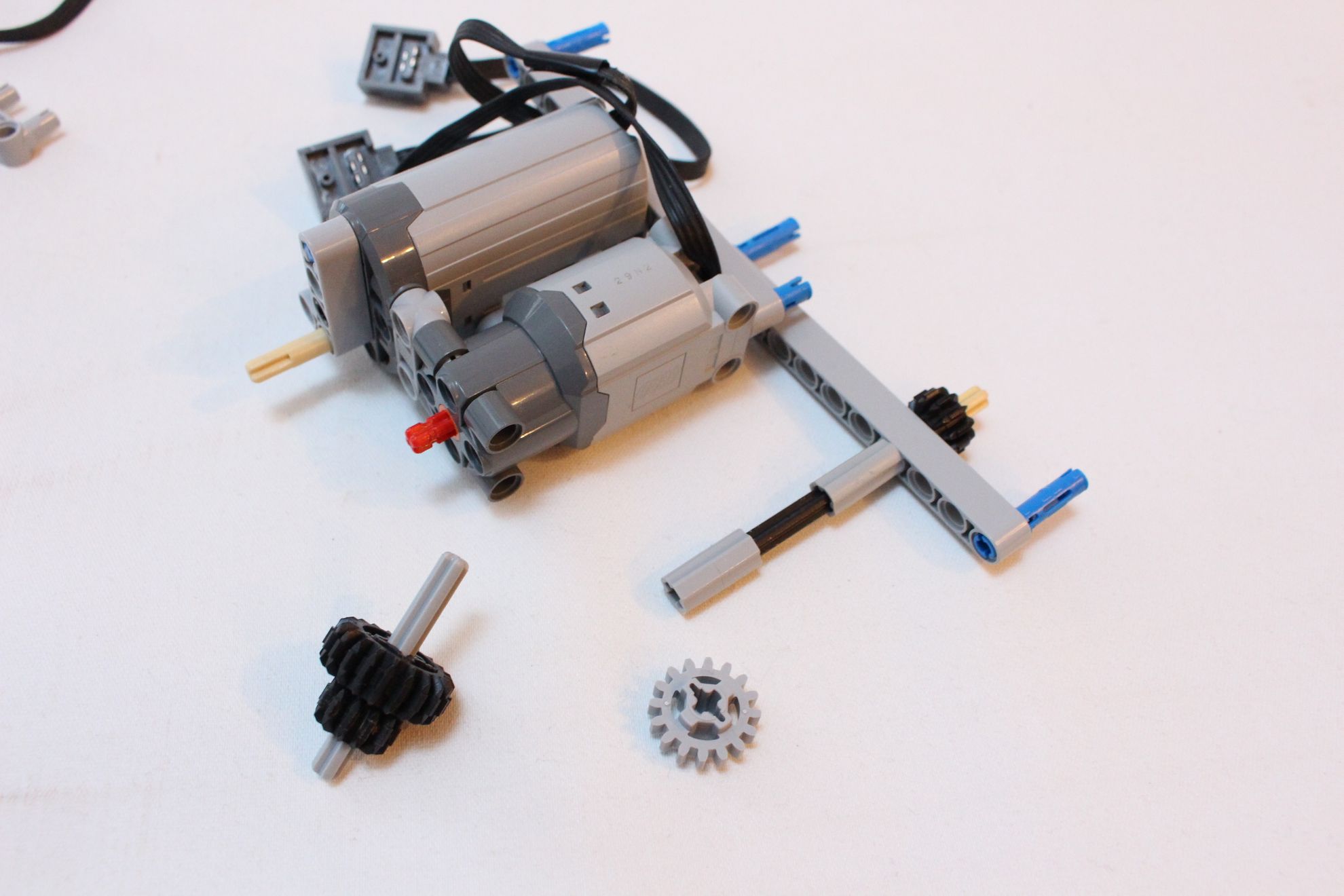

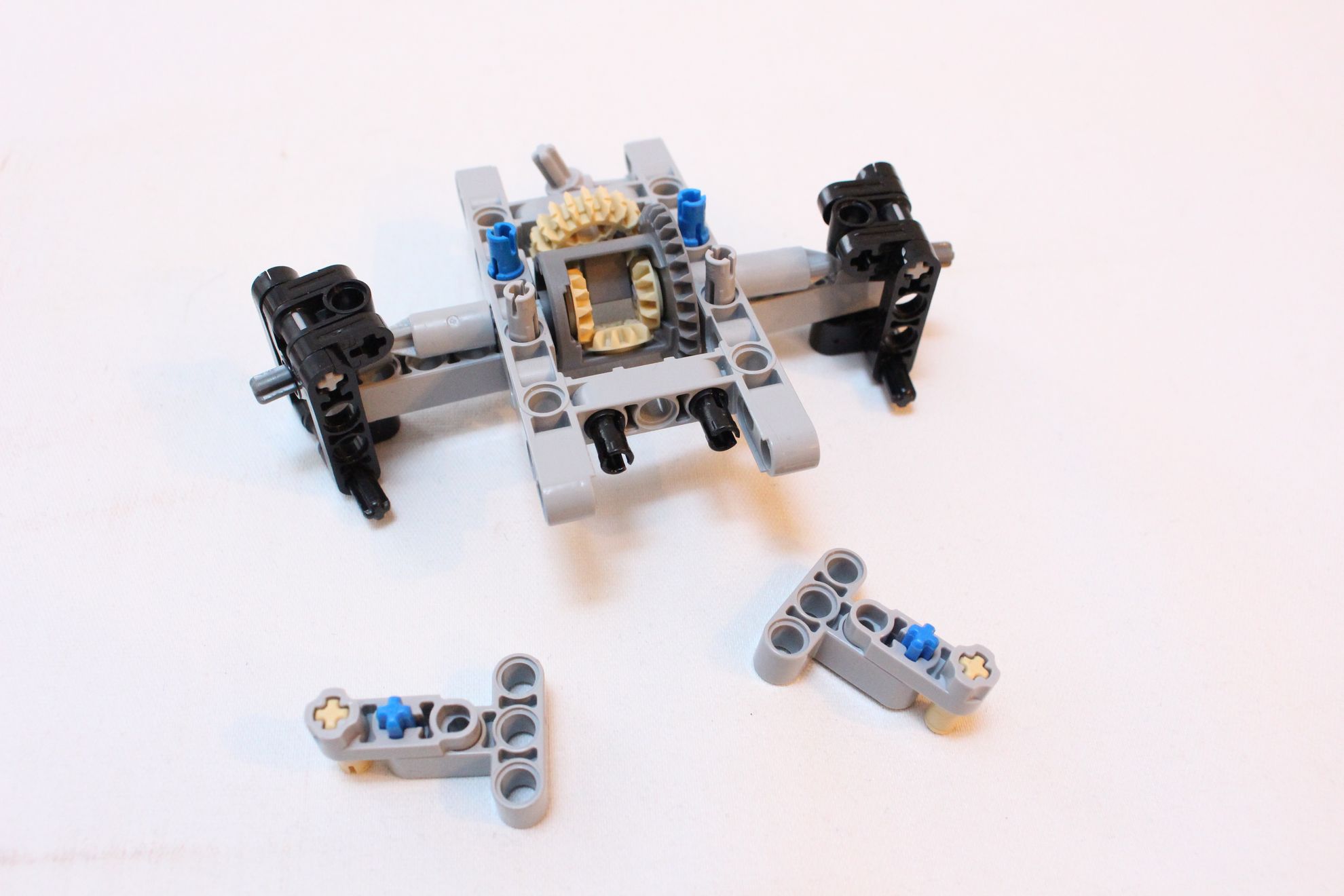

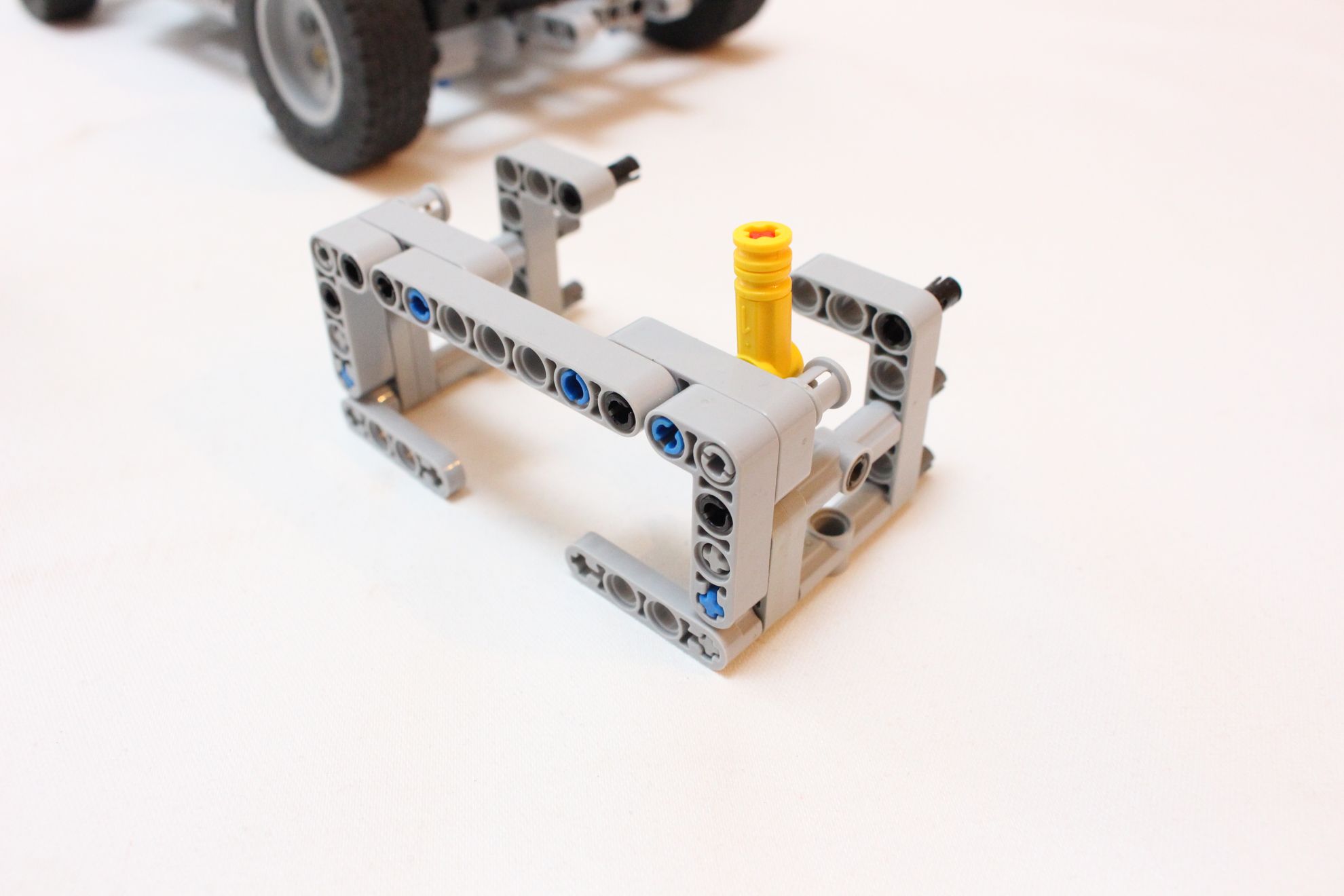

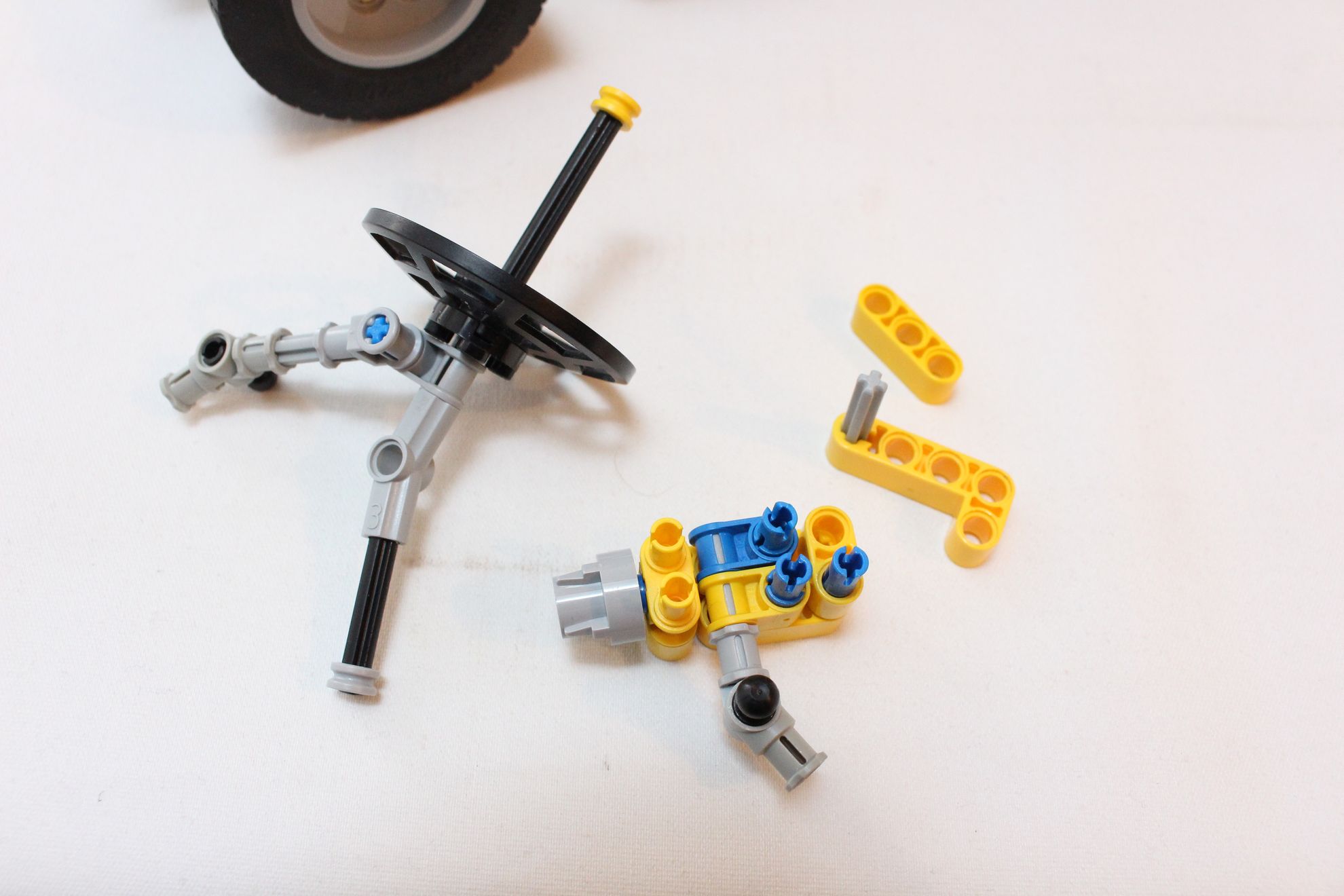

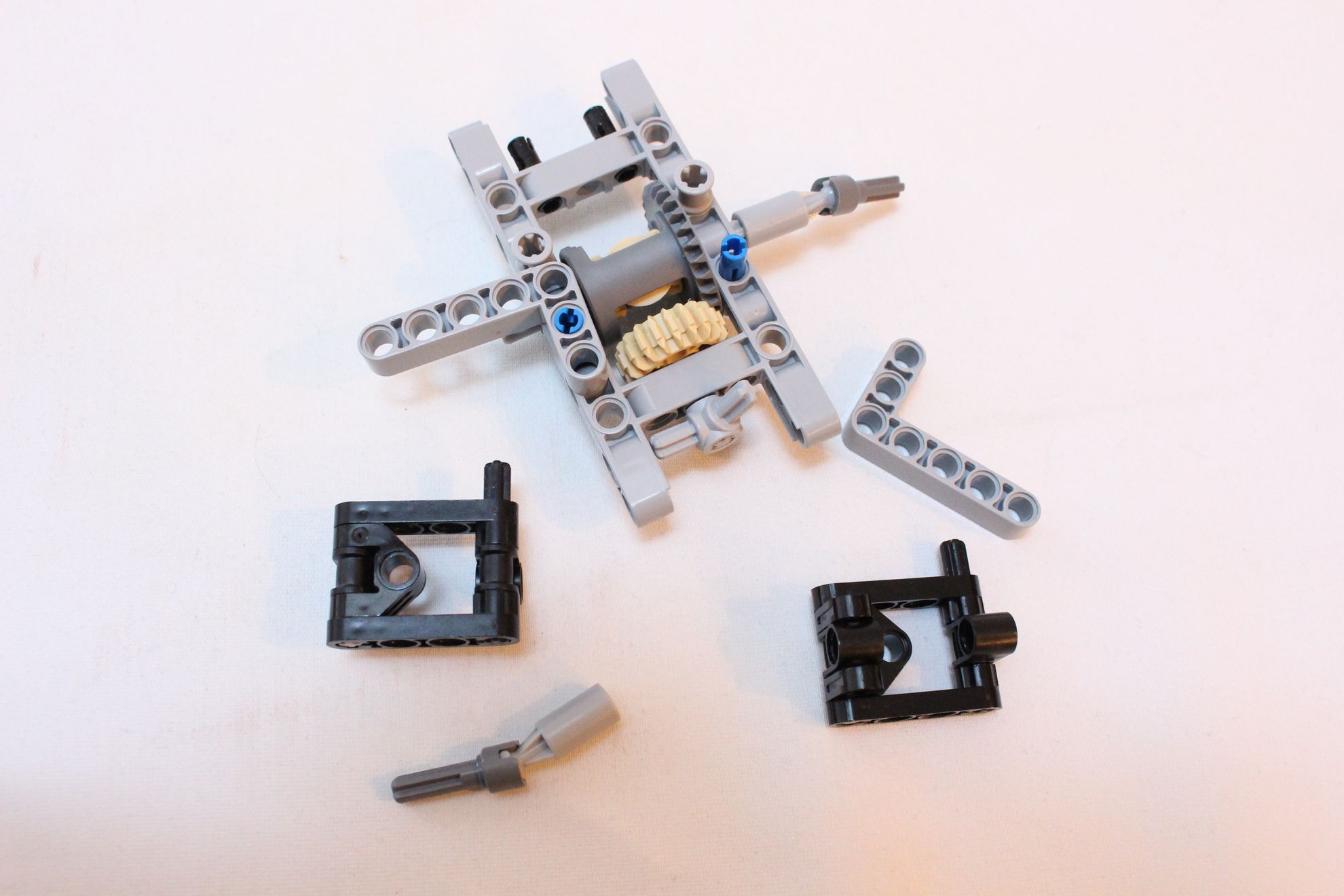

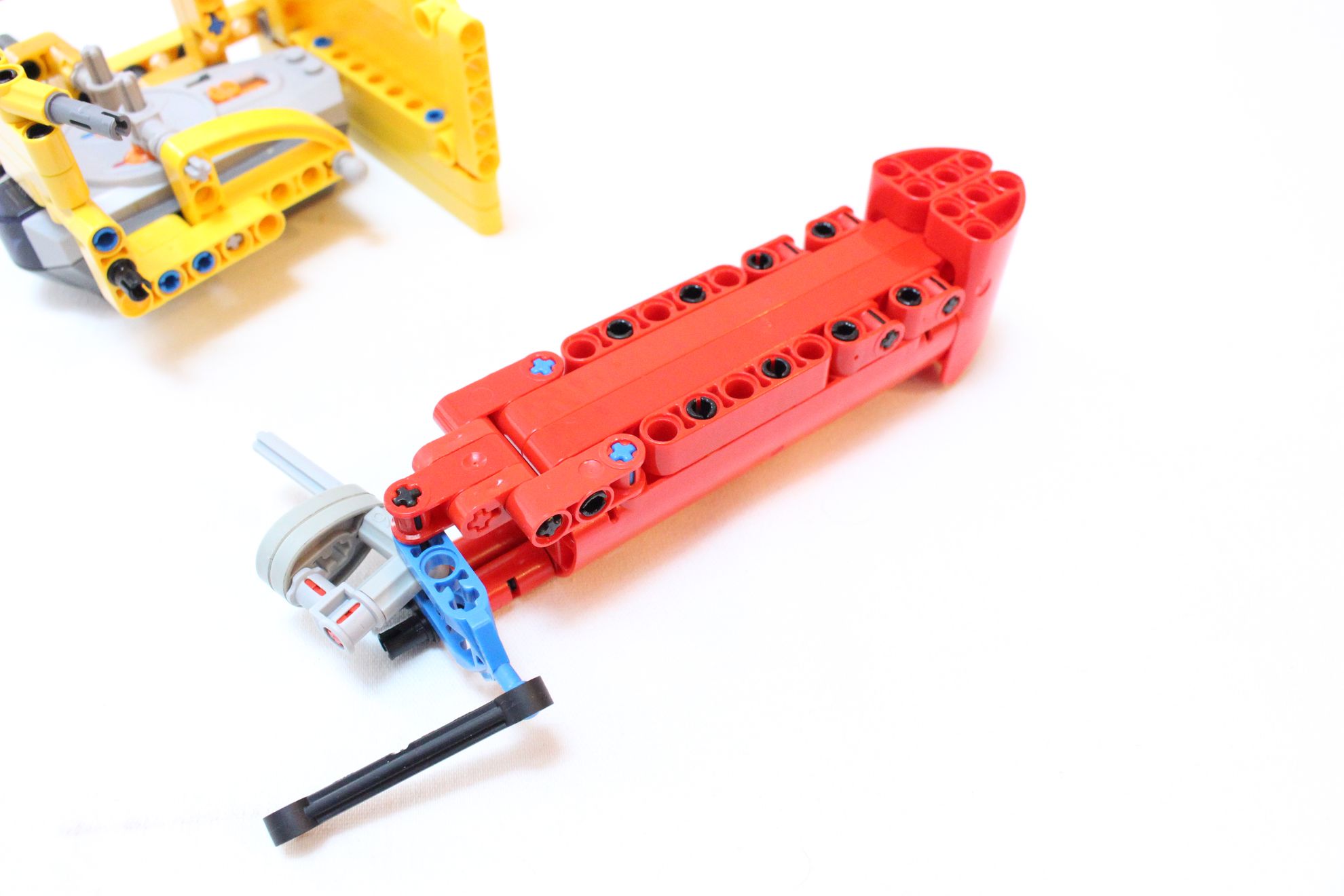

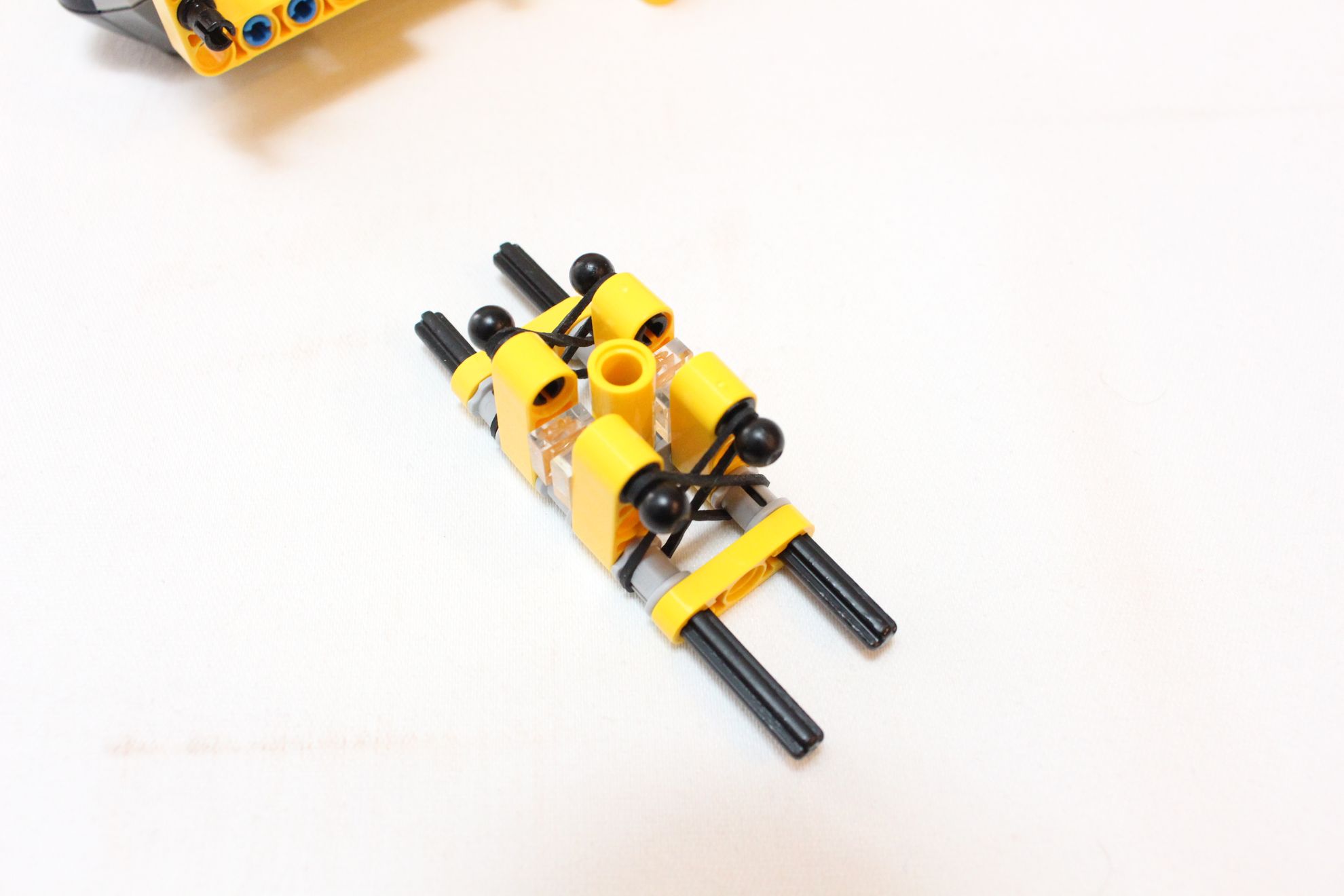

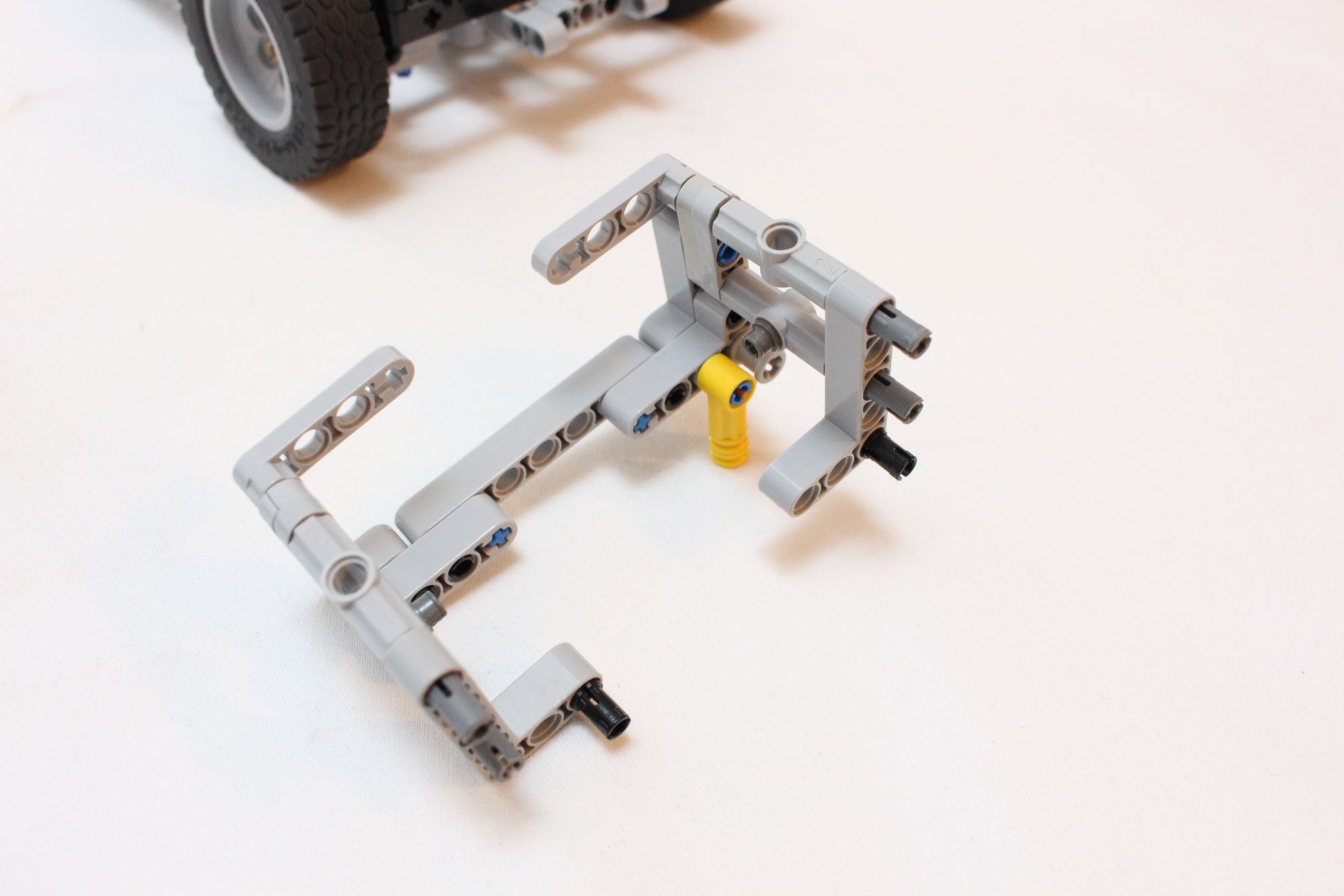

Here is the instructions as a dismantling photo sequence (watch it in reverse way).

Lunar Rover By Nico71 Instructions (ZIP file : 12mo)
