My first attempt to build a mini-scale truck trial, features drive and steering. Including building instructions.
Mechanics is very simple. A M motor drives worm gear on 24t for propulsion (with 12/12t bevel gear for steering). Steering is operated by a M motor with worm gear on 8t and rack pinion. All suspensions are pendular (width axis for front and length axis for rear). Clearing abilities are very good for this scale

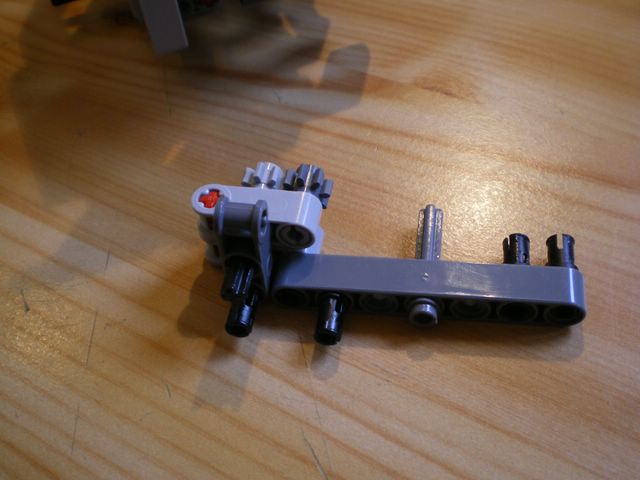

Building instructions for the front axle :
October 27th, 2012 on 10 h 29 min
What doesn’t work ?
October 8th, 2012 on 22 h 54 min
Built the front axle. Doesnt work
June 30th, 2012 on 20 h 42 min
I’m building this with the instructions that you gave I’m building the rest of the body and I’ll try to upload to YouTube when I am done,
December 11th, 2011 on 13 h 52 min
please make the rest of the instructions i am 11 and i realy want to make one i amde one of yours it smashed it in a role and u took the instrictions off and u realy dissapointed me buy that
February 10th, 2011 on 8 h 25 min
No I haven’t got them, the truck is dismantled. In any case, if a buidling instruction doesn’t appear on my webiste, I don’t have them. Regards
January 24th, 2011 on 13 h 13 min
Do you not have instructions for the rest of the truck
