Halo Warthog M12

10,00  -Excl. Tax

A LEGO Technic replica of the Warthog from Halo licence, features all wheels drive, all wheel steered, double wishbone suspensions, lockable differential, opening element and optional turret.

SKU: WARTHOG Categories: ,

Video Presentation

2017 version LRV M12 Warthog configuration :


If you are interested by how it works, you can watch the 2023 Design Secrets Video on Youtube [8min, english spoken with subtiles]


  • Warthog M12 Replica in LEGO Technic (107mm wheel, 50x26x19cm)
  • Based on Halo 4 Scout Version (M12B FAV) for the main PDF Instructions
  • Powered by Power Functions System (2x IR Receivers, 1 emitter)

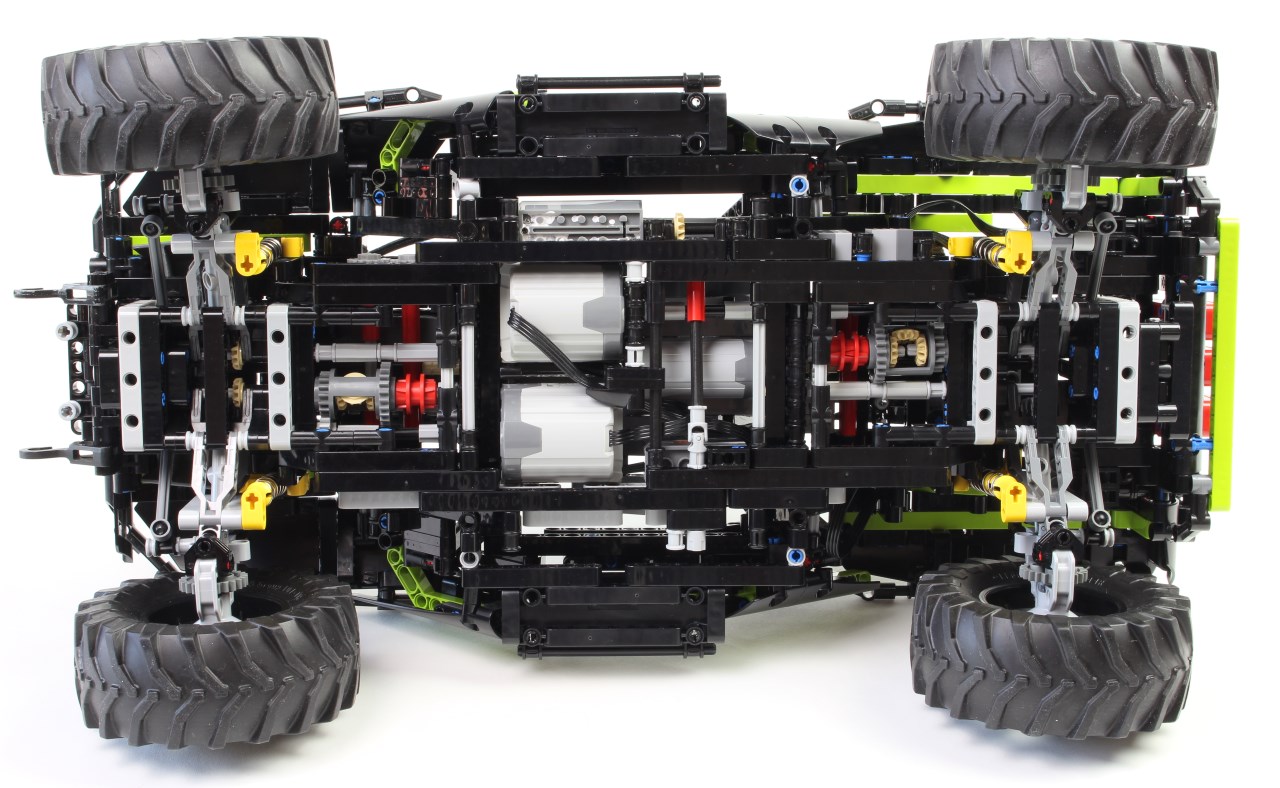

  • 4×4 drive with differentials by 2x XL motors
  • Locking differentials using a M motor and lever linkage mechanism
  • Steering on both axles with a Servo Motor
  • Double wishbone suspensions on each wheel

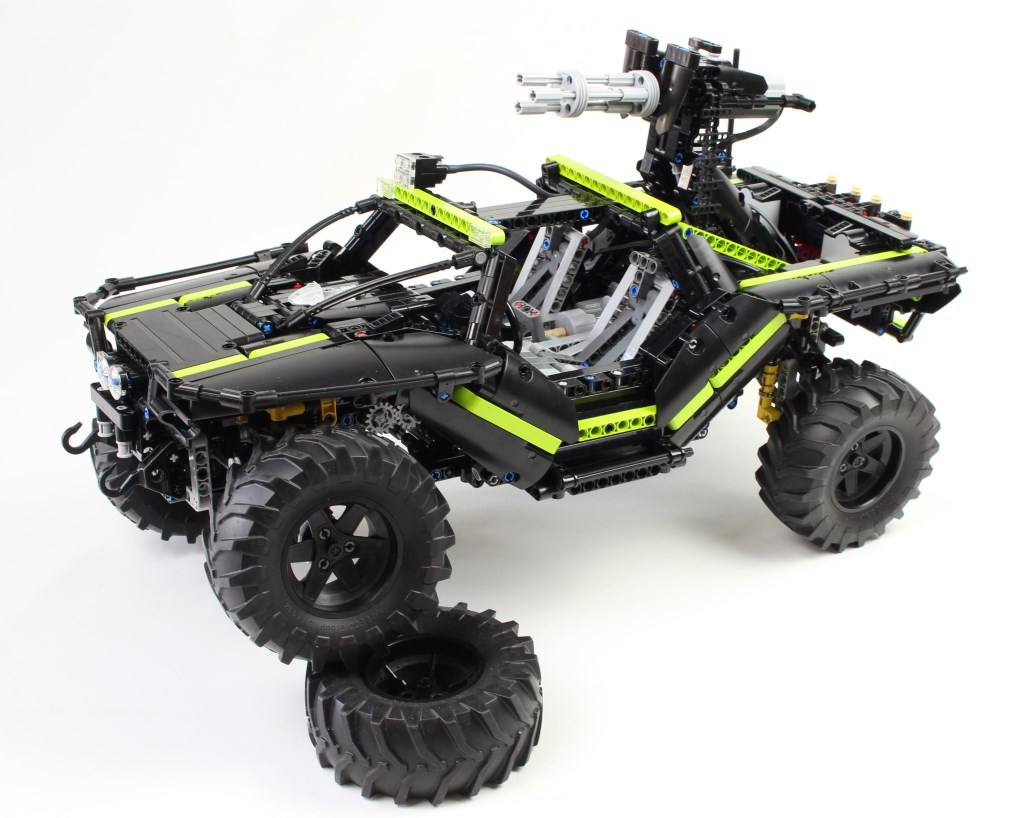

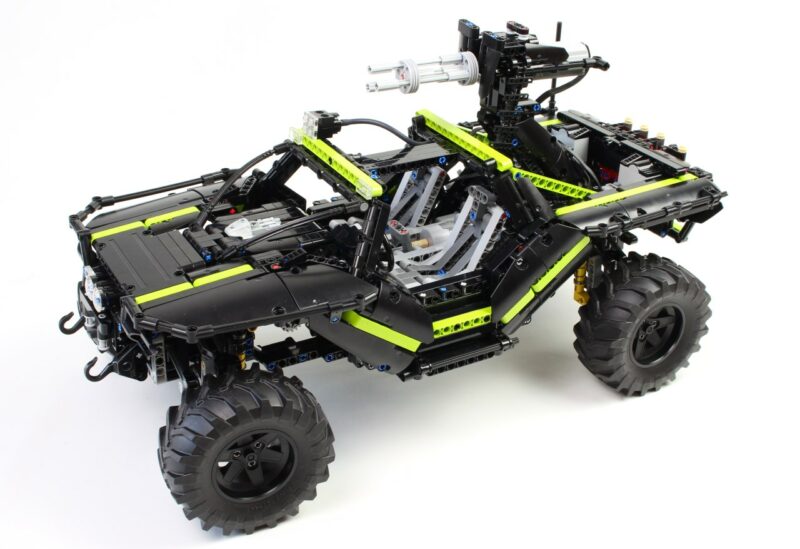

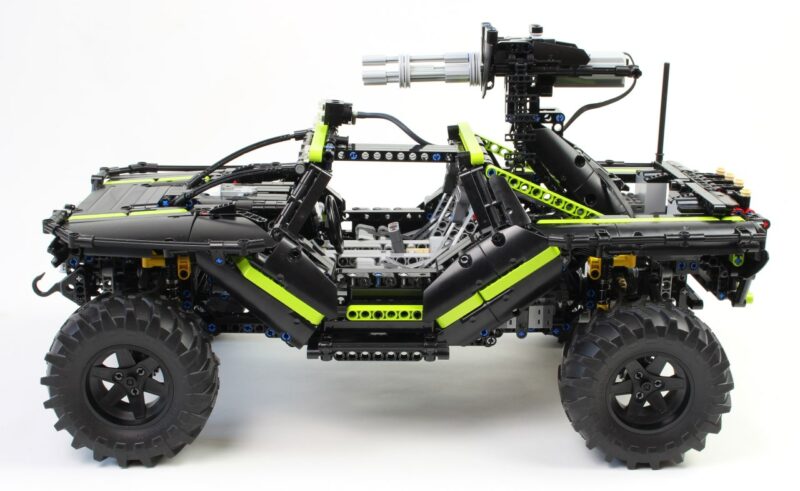

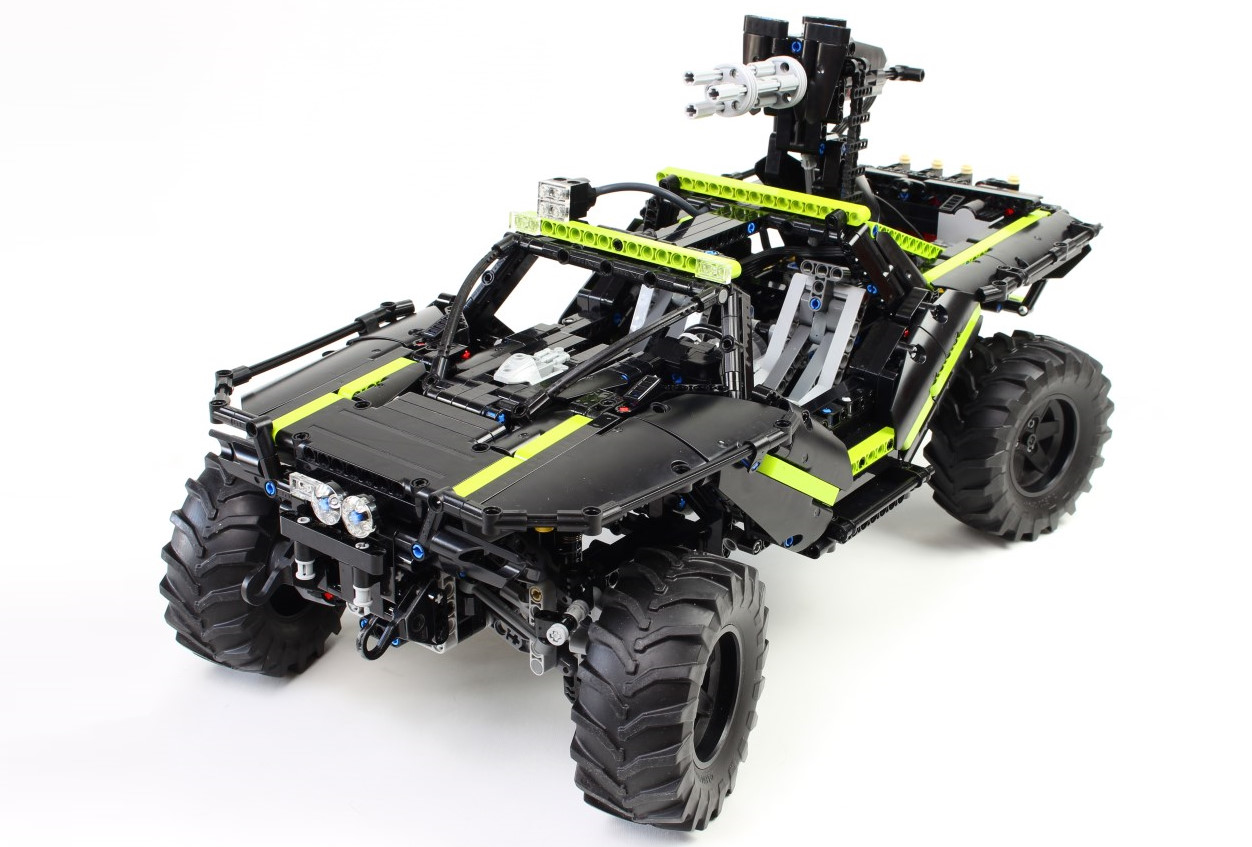

  • Motorized turret (gun and turret rotation with a M motor) in option on the 2023 M12B Scout Version (also available here for free)
  • Openable elements

How to build ?

You only need the parts and the instructions. You can purchase the PDF instructions on this shop which contains the partlist at the end (no parts included), and you can check on Rebrickable or in the instructions preview below (partlist for M12B without turret).

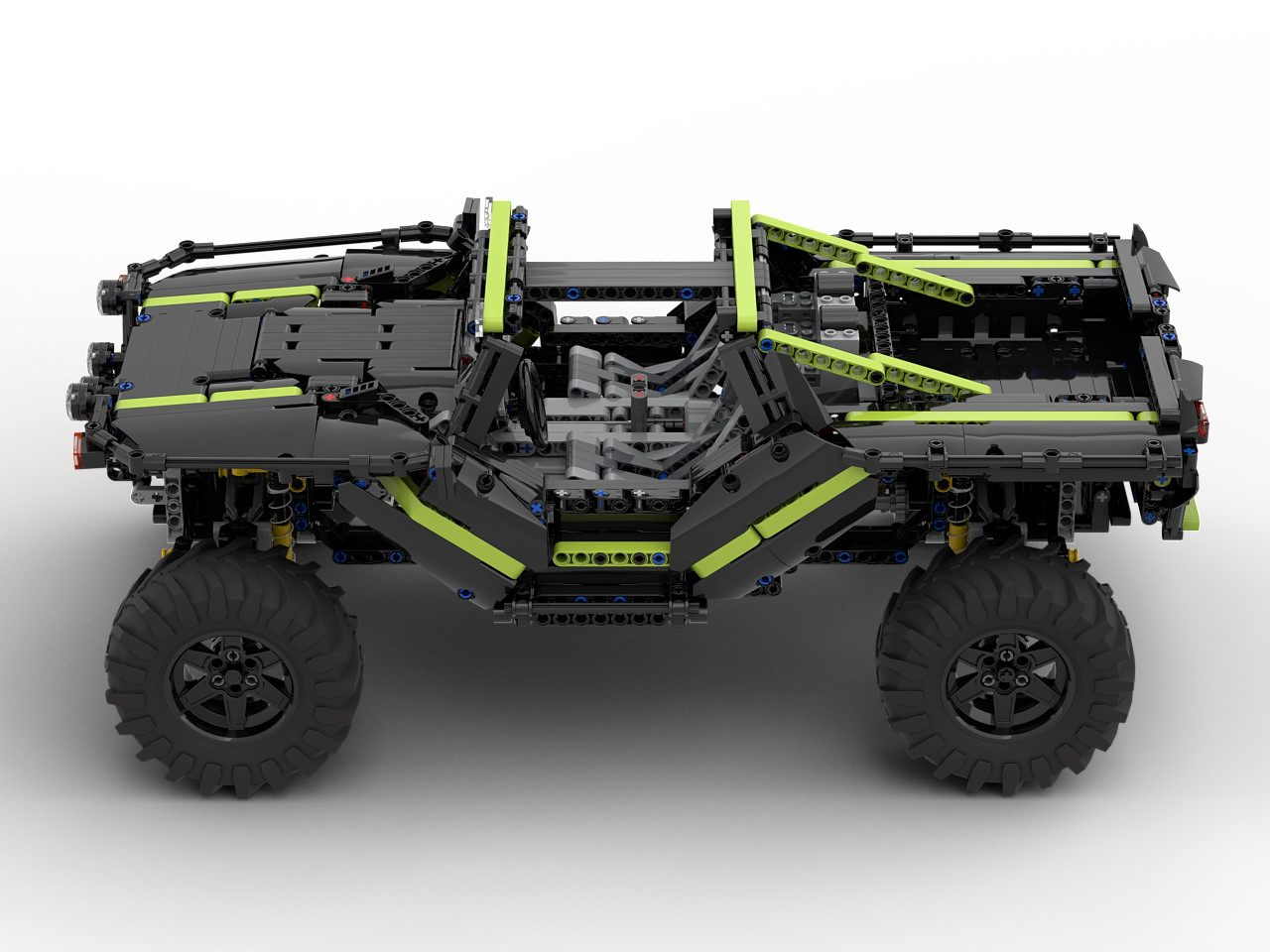

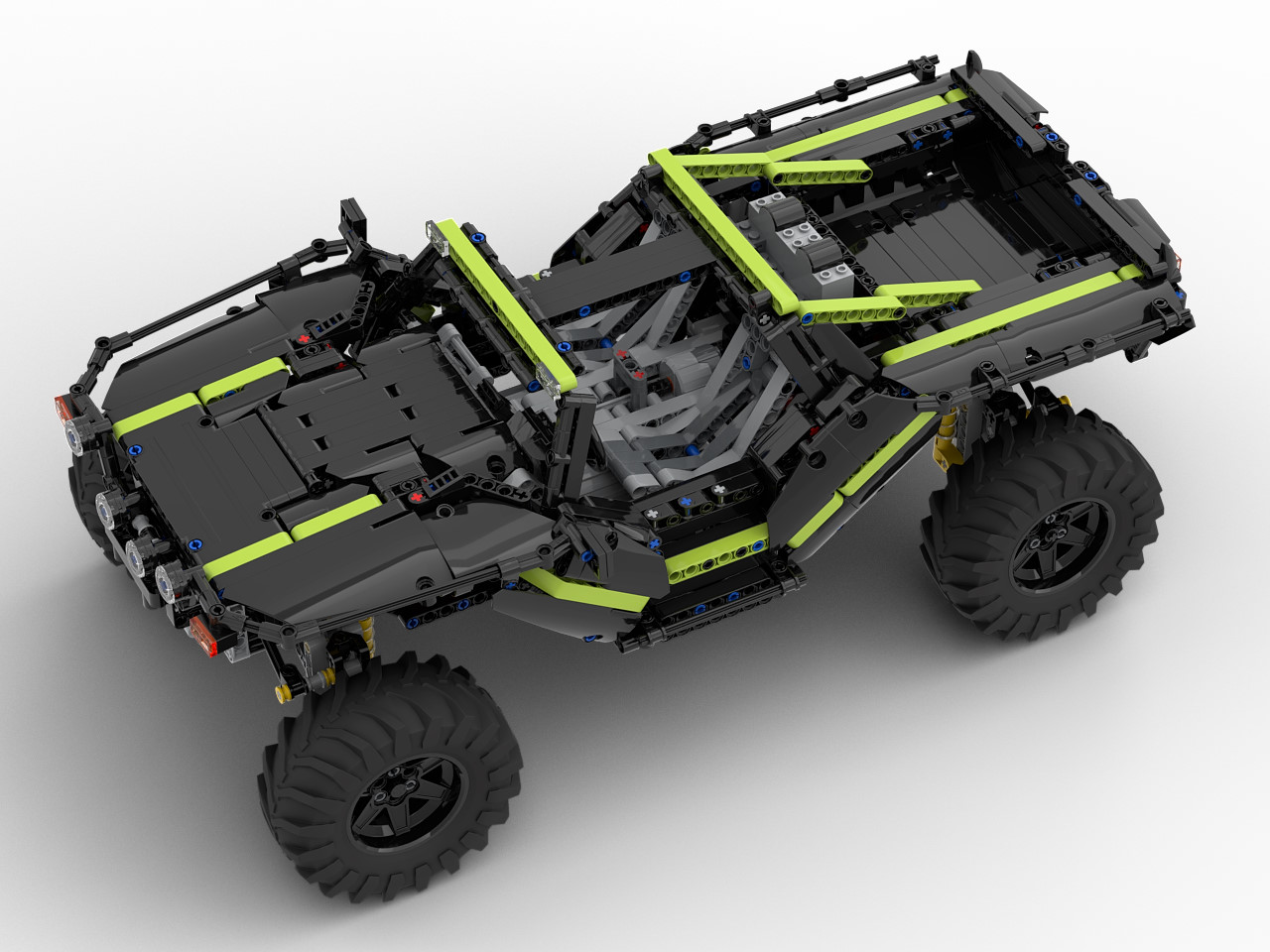

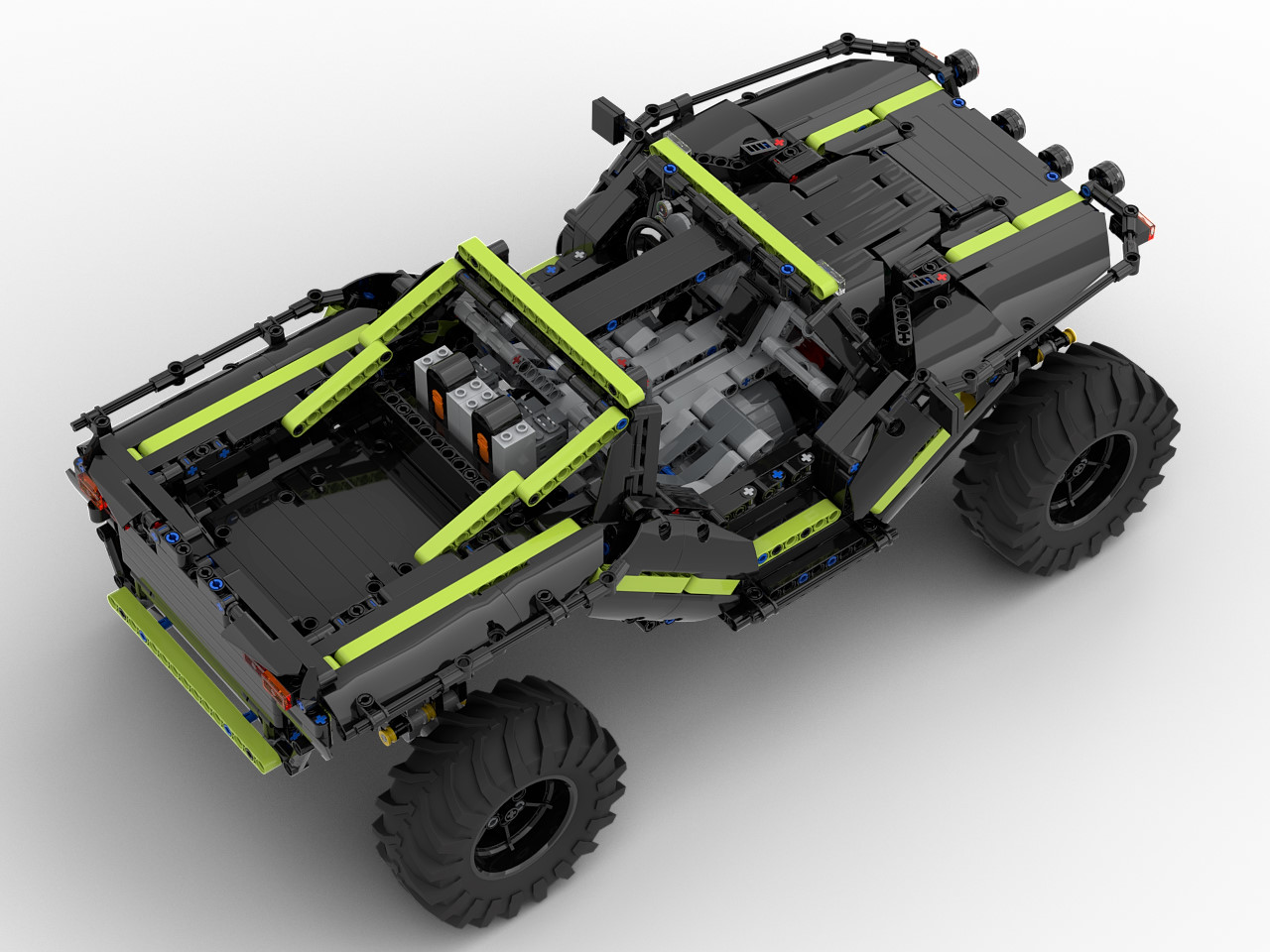

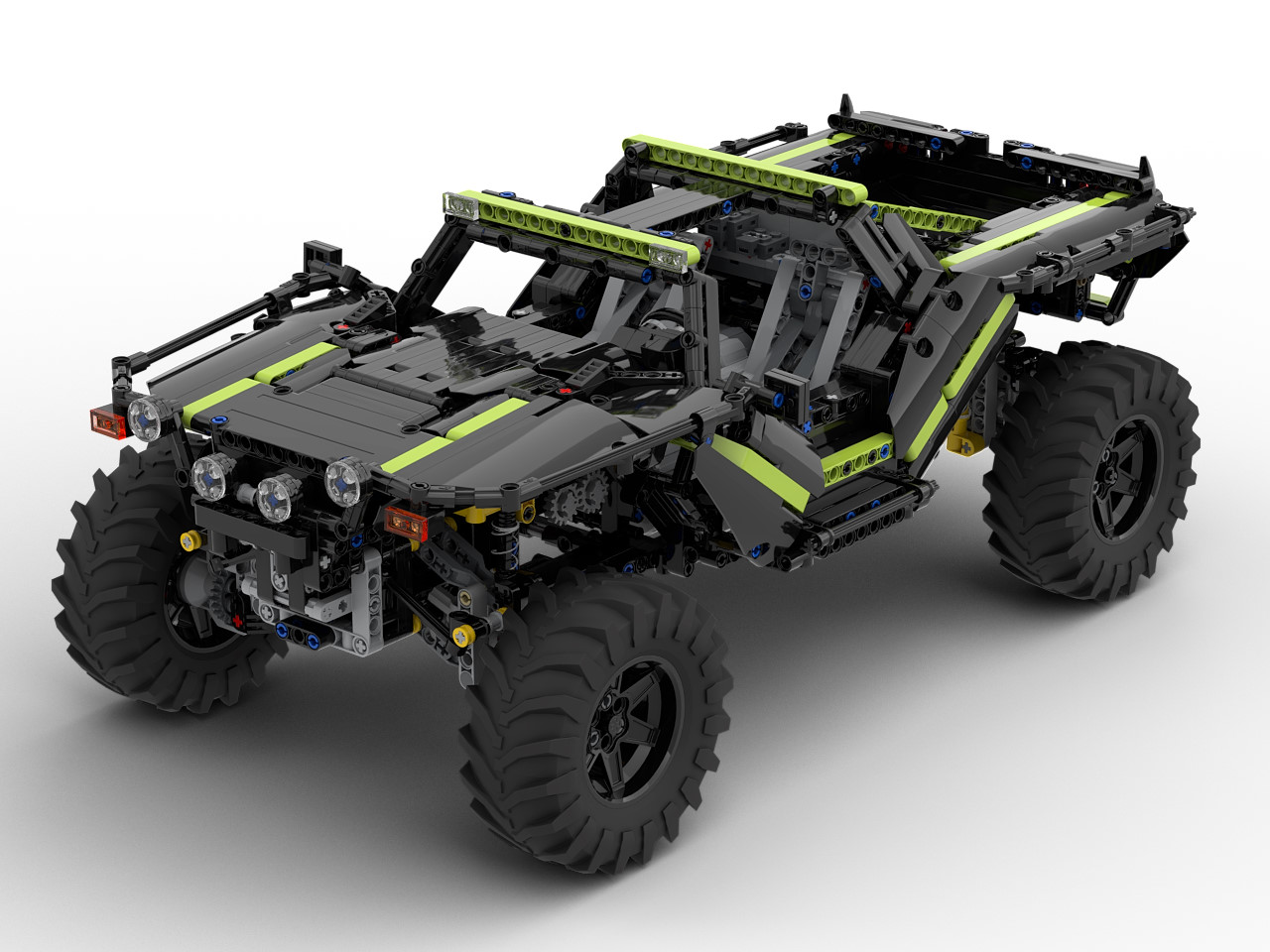

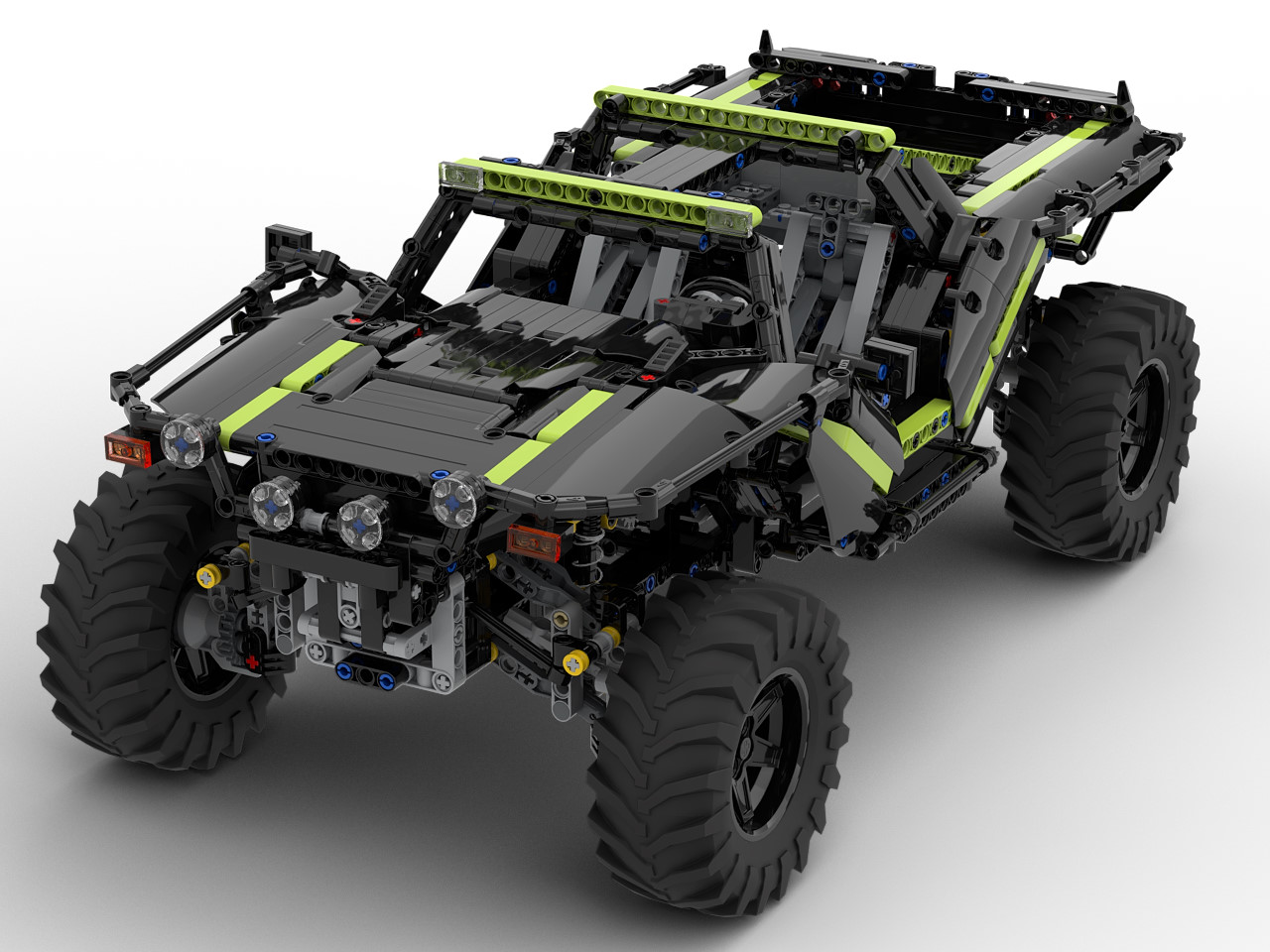

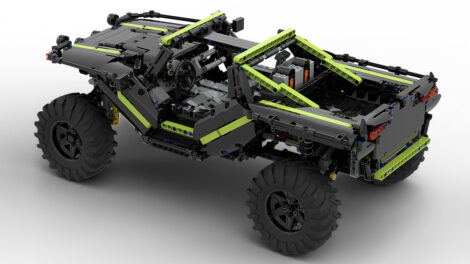

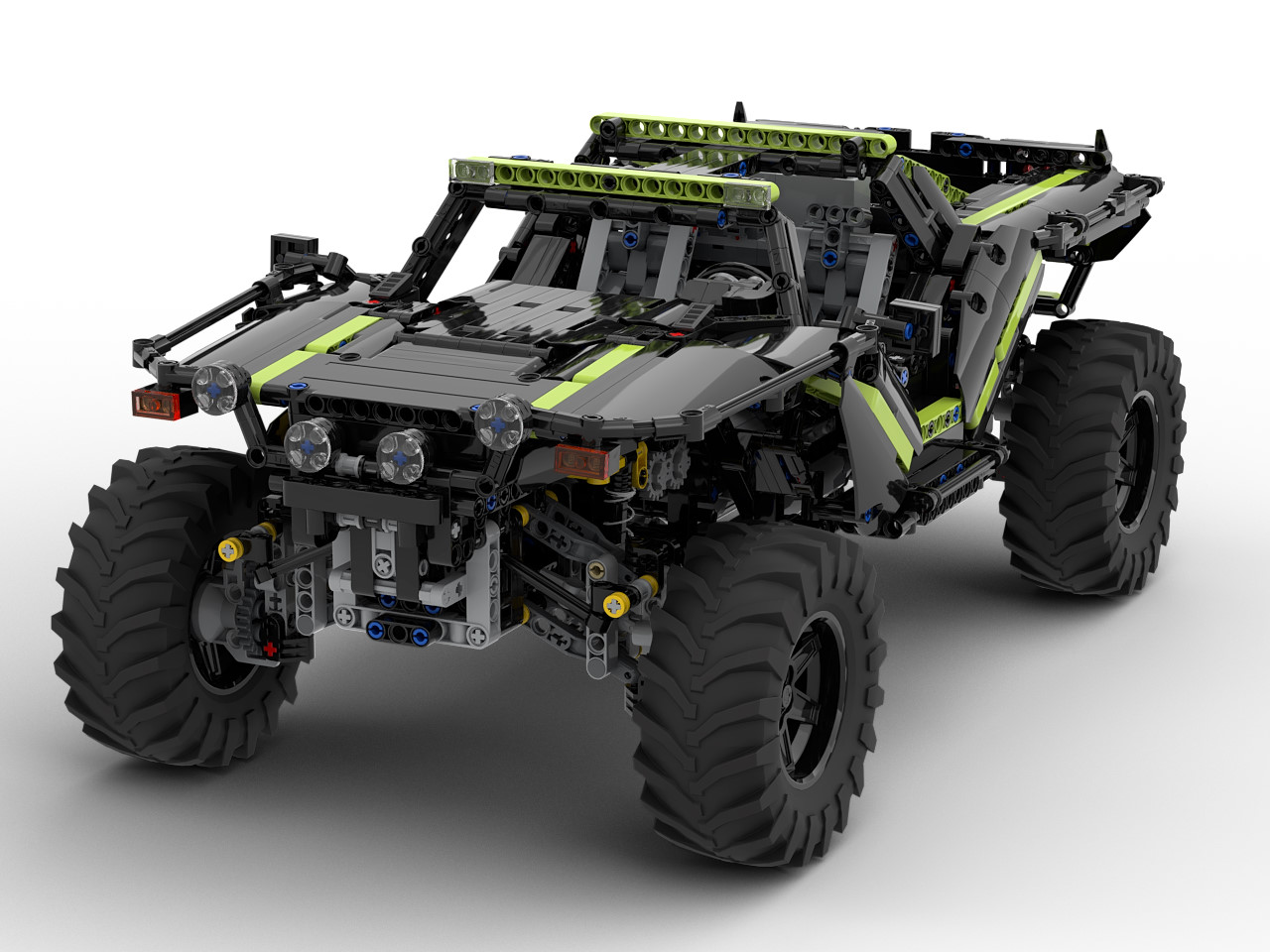

Renders of the Scout version (M12B without turret), instructions sold on this shop  :

After many demands, I propose the turret as an optional attachment for this Warthog. The PDF Instructions for the turret is included in the purchase on this shop in a separate file :

You only need to gather the parts for the turret [rebrickable link or see instructions preview below], then not build the page 252 of the warthog instructions, and so remove the parts you see on this page from the bill of material :

The turret will be placed in place of the rear bed as the end of the turret instructions.


About this product

Instructions preview

Warthog :

Turret :

Additional information

Model Size



Black, Green


All, Car, Truck


Yes (with drive)

Building Difficulty


Piece Count


Bill Of Material


Purchased File

PDF Instructions Warthog (314 pages / 133mo)
PDF Instructions Turret (35 pages / 32mo)
