Great Ball Contraption : The Wave
0,00 € -Excl. Tax

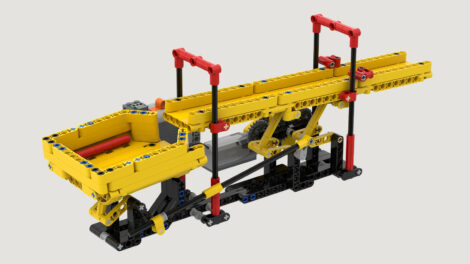

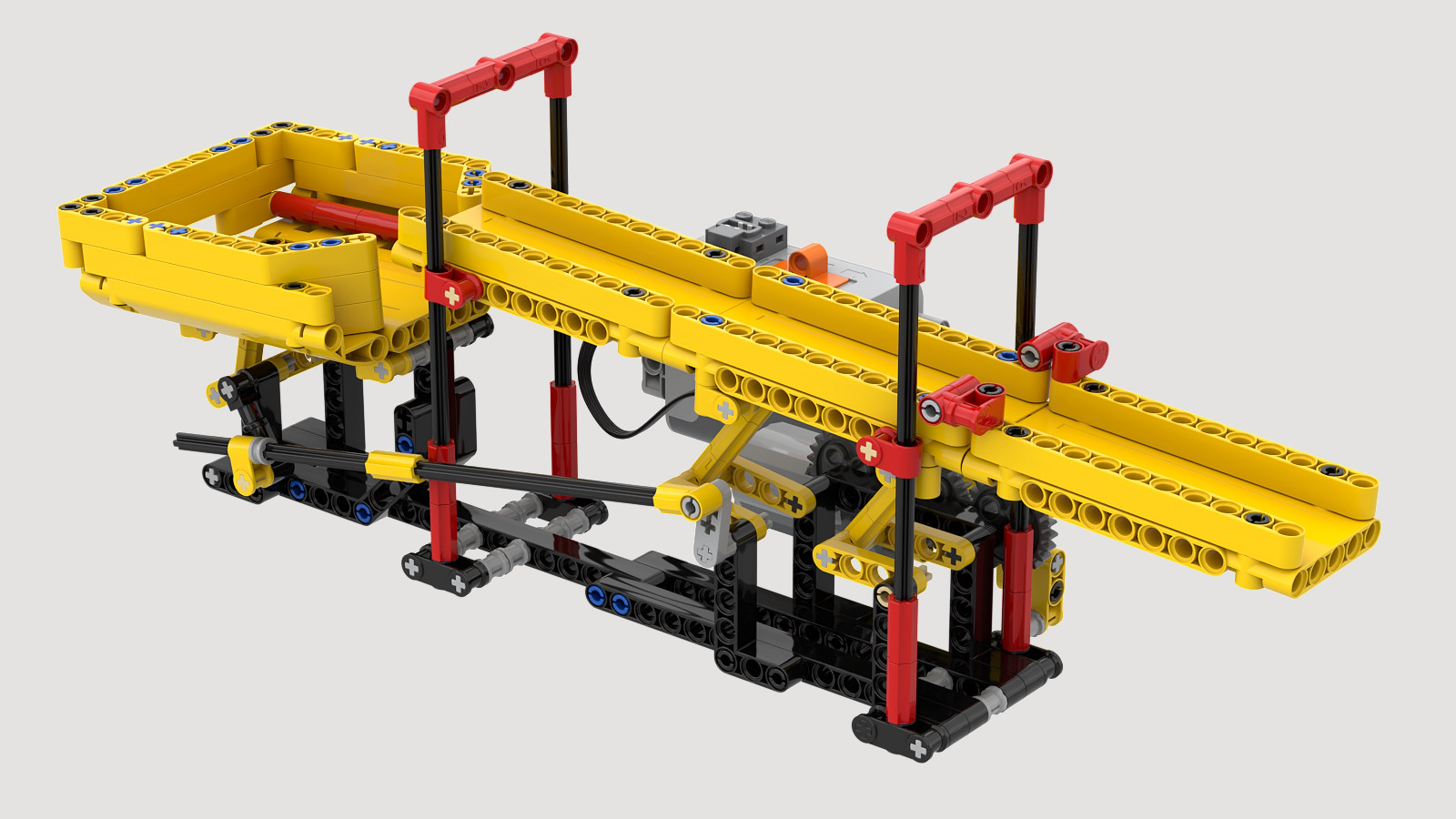

A Great Ball Contraption module, using a wave movement to move the balls. Build in 2010 for a French LEGO meeting, now with reworked 2025 free instructions.
Video Presentation
Functioning

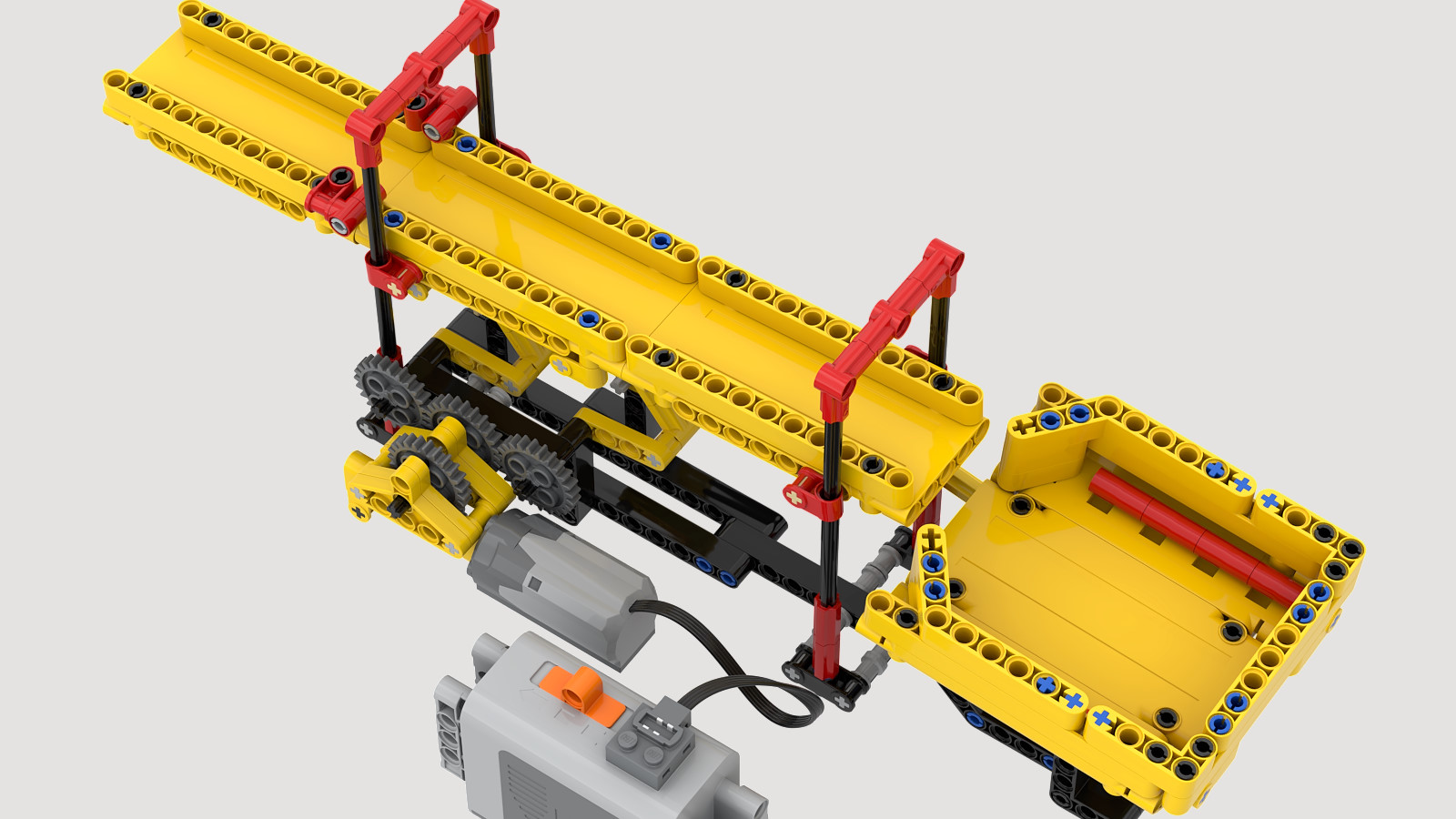

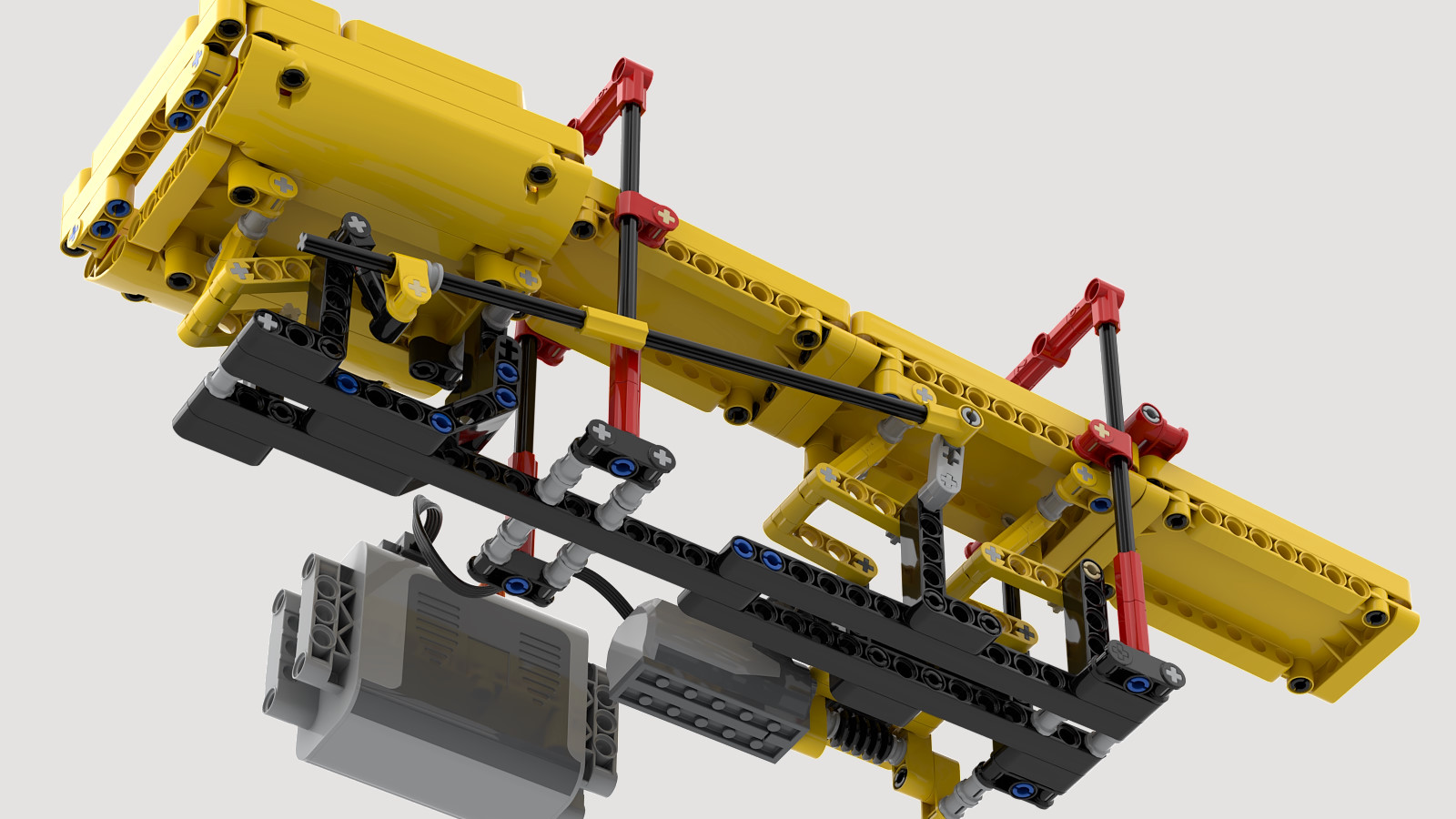

The motor drives a worm gear with a 24t which drives another 24t. Two crank-connecting rod system give the wave movement to the main banister. A other crank-connecting rod system with a push bushing operates the lifting of the drip tray. The module is quite reliable but can not take a big bunch of ball in one time.
How to build ?
The PDF instructions can be downloaded for free on this shop to be built with your own LEGO Parts. You can see the partlist below :
About this product
Additional information
| Model Size | 37x11x15cm |
|---|---|
| Color | Yellow |
| Categories | All, Free, Machine |
| Motorized | Yes (machine) |
| Building Difficulty | Easy |
| Piece Count | 269 |
| Bill Of Material | https://rebrickable.com/mocs/MOC-0047/Nico71/gbc-module-the-wave/#parts |
| Purchased File | PDF Instructions (40 pages / 36mo) |
