How it works

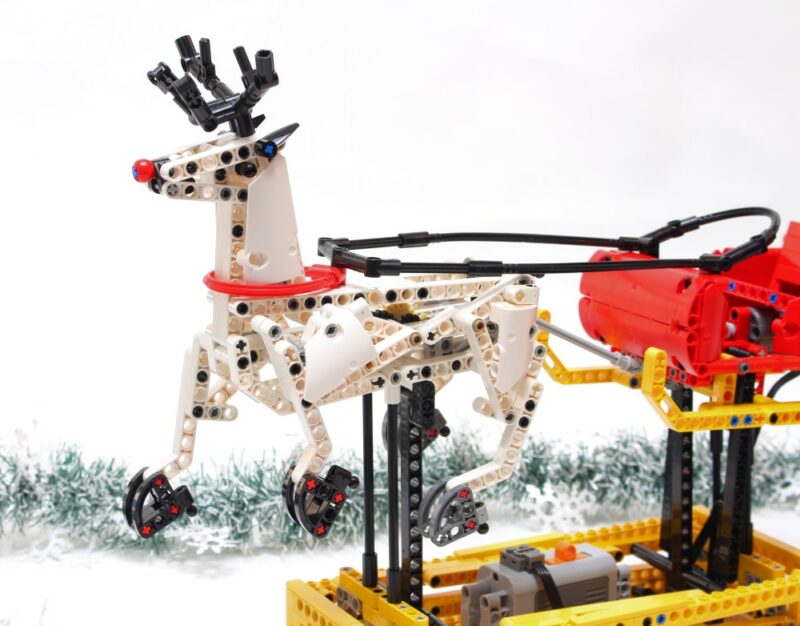

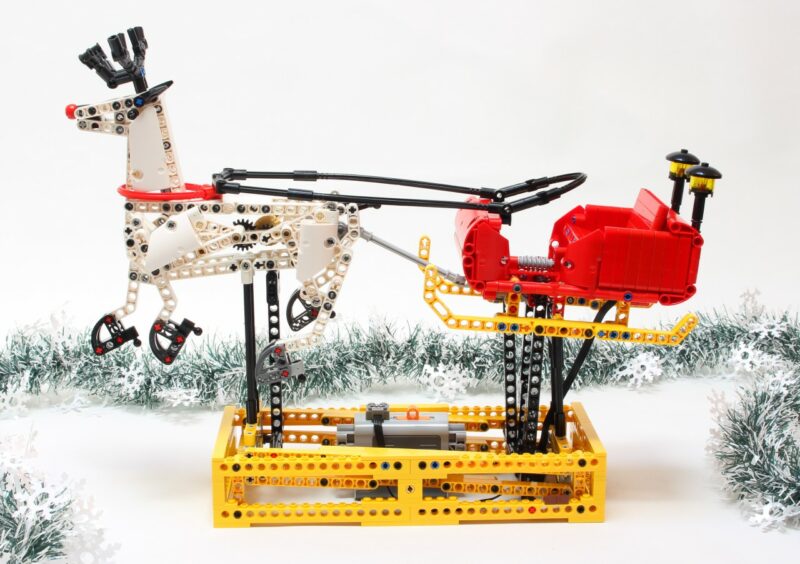

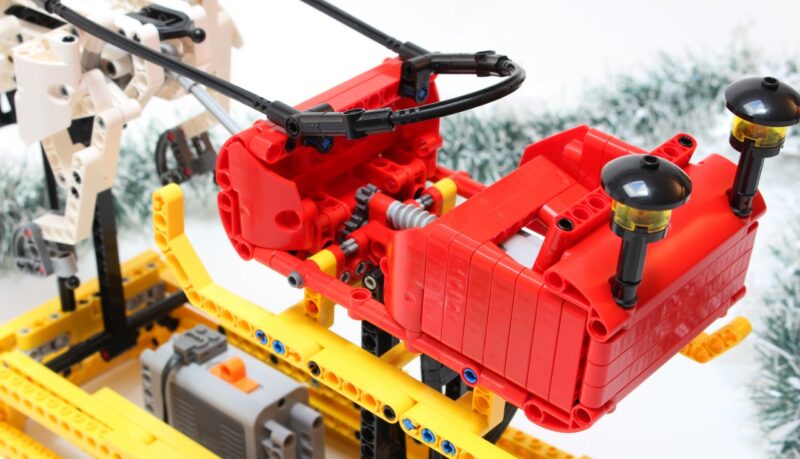

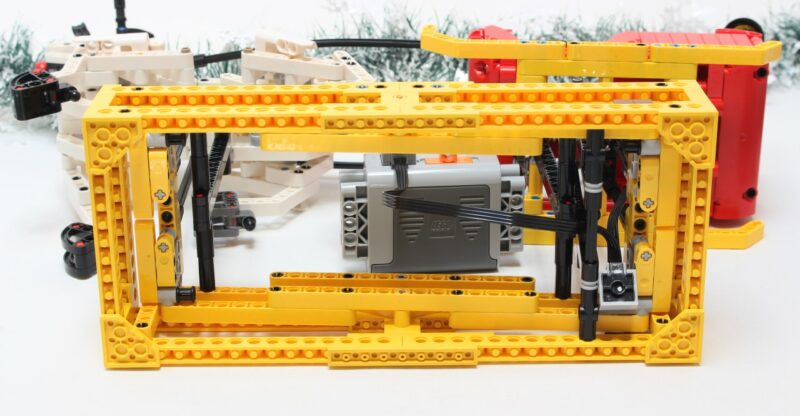

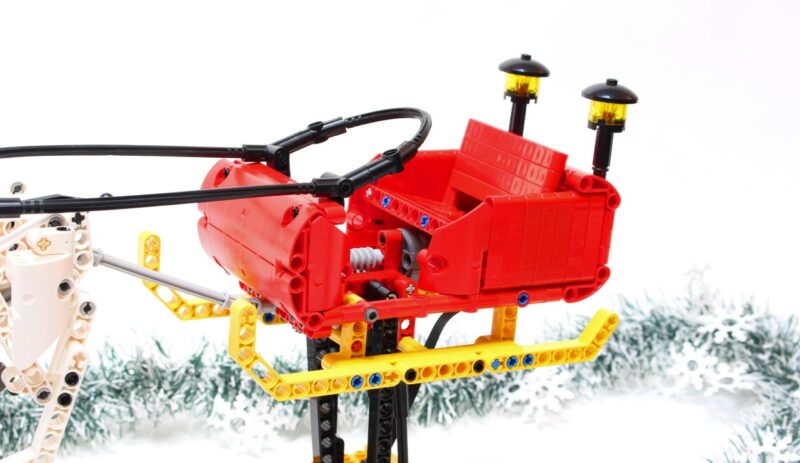

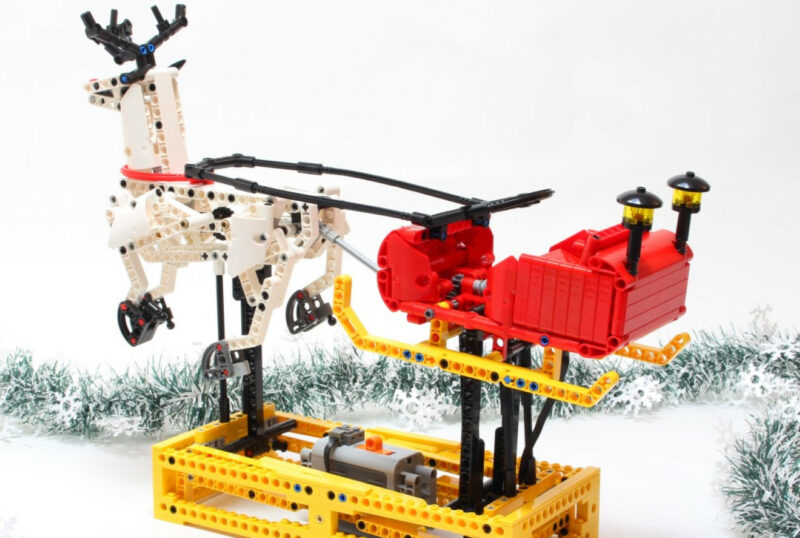

The functioning is basic, a M motor placed in the sleigh makes rotates a lever which is connected to the frame. The whole sleigh plus the reindeer are mounted on beams and an articulated frame, in order that when one goes up, second goes down. The M motor also drives the reindeer thanks to U-join and makes rotate 4 levers which are connected to the legs. The kinematic of the legs is made with one lever, a swing L shaped beam, and two beams, to create the beautiful movement. This simplified configuration is inspired by the work of Shadowfax and the work of the awesome Theo Jansen.
You can read the full review of this model on my blog.
How to build ?
You can either purchase the PDF instructions only on this shop and build it with your LEGO parts, or purchase the complete package including genuine LEGO parts plus PDF instructions, on Buildamoc shop
The instruction contains the partlist at the end, but you can check individually on Rebrickable, or in the instructions previews below.
About this product
Red, White, Yellow
|Bill Of Material|
PDF Instructions (71 pages / 42 mo)
