Lego Technic 1/15 Citroën 2CV

A Lego reproduction of a iconic car, the Citroën 2CV in 1/15 scale, featured independent suspensions, steering with steering wheel and HOG on the rear, and openable doors, hood and trunk with detailed interior and engine. With pro-building instructions and also available for sale in complete package.

Context

After designing my big Lego technic Citroen 2CV, you were many to ask building instructions, which I did with the help of Thorsten Spelz. After some year, the company Mochub contact me to be one of builders on the website. I added some moc and the big 2CV because you were also many to ask. But the availability and the price of used parts made that the price was very pricy, that is why I have decided to build a second smaller Citroen 2Cv which can be produced at a good price with some functions.

IMG_8047

I have started in November and work hard to get the Citroen 2Cv project ready for the begining of 2018. I have used rebrickable and the team of mochub to know which parts I can use, and which I can not. Thanks to that, I design different colored version based on real version of the 2CV but without using too much rare parts and expensive. In 2021, I add more versions and put the whole project for sale on Buildamoc which give a better price. This article will present the first version I build, the Dolly White and Red version.

IMG_8048

Functionalities

In order to have small price for this serie of moc, I decided to start with a 1/15 scale (Exaclty 1/14.29,  dimensions are Wheel : Ø44mm, 26cm (L) x 11cm (W) x 12cm (H) ) which enables me to have some functionalities without to big creation. First the suspensions, they are independent with swing arm like on real and shock absorbers placed on the floor. Of course at this scale it is not possible to reproduce the complex functioning of linkage between front and rear suspensions. But as the suspensions are quite soft, it is very nice to play with it.

The second functionality is the steering. The steering is operated by linkage between the two wheels, then connected to other connecting rod on a lever. The steering wheel operates this lever with a low amplitude but works nice. The Hand of god placed at the rear is removable and operate a other lever which connected to the first. Consequently the steering can be operated either front the back, or the dashboard.

IMG_8050

The last functionalities are about the opening elements. The four doors, trunk and hood can be open which reveal a detailed engine and interior with seats.

Design

Of course the design was also an important point to manage. But the Citroen 2Cv has the advantages to have particular shapes which are recognizable. I have to make this particular shape well done in order to regonize easily the 2Cv for non Lego users. Which I succeed I think.

IMG_8055

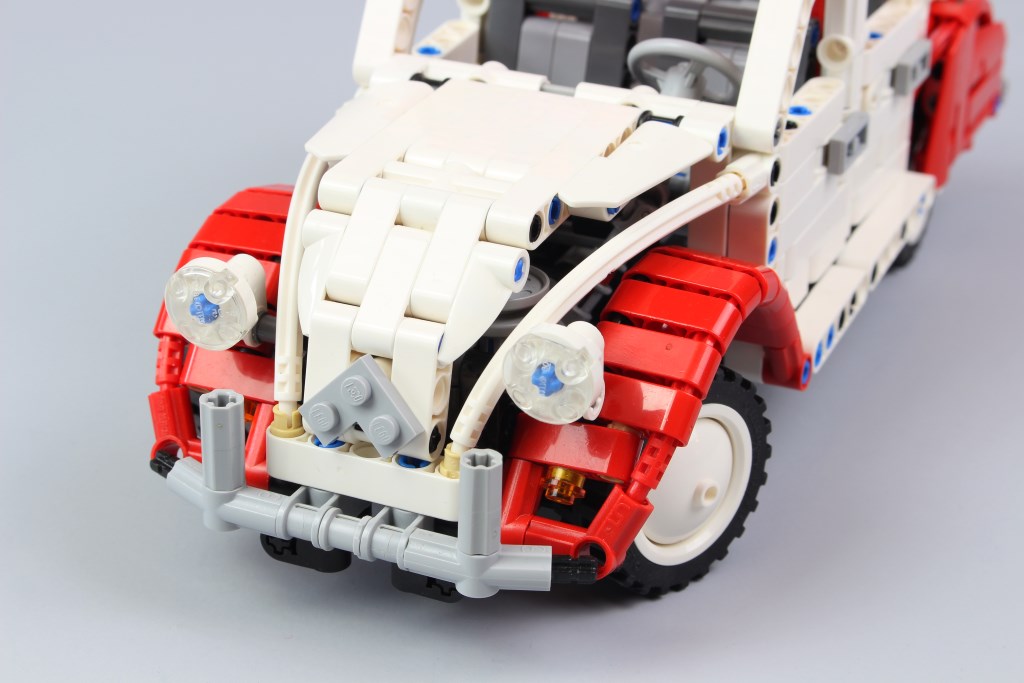

The front and rear wings was the important point. I re-used the techniques on my previous big 2Cv in lego which is to use soft axle and beam to get the front mudguard. For the rear, I use small panel to keep the suspensions working and a soft axle for the shape of the rear mudguard.

Regarding the hood, it is composed of beam and soft axle to have the correct shape. It is a bit bulky at this scale but it was not possible to make it better without having the open hood. Under the hood, you can see a detailed engine.

IMG_8051

The other important point was the openable elements, I wanted to have the whole doors which can be open but also the trunk and the hood. Regarding the doors, as I wanted to have a non expensive price for this moc on mochub, I have to chose correctly the parts, including the length of flex, that Is why the building is a bit special with a connection point on the bottom instead of two points (I have to use a 12L flex, instead of a 7L which is not available in many color).

IMG_8053

This is the same reason why there are some black parts on the hood or roof, because I have used parts which are not expensive and available in many color. That is why I have used mainly connector instead of bush-axle. All that to say, that I had to manage the design of original 2CV but also the chosen parts. But at the final, the shape is well respected and the particular shape are well done which make the 2CV easily recognizable.

Pictures and Video

Buying The Creations

The Mini 2Cv is available for sale at Buildamoc. All versions are not on sale on the same time. For unavailable version, you can ask directly hello@buildamoc.com.

By clicking on the picture, you will be redirected to the Buildamoc website to buy it. Note that all package included the genuine Lego parts for building you own Citroen 2CV and the building instructions in PDF.





Buying The Building Instructions

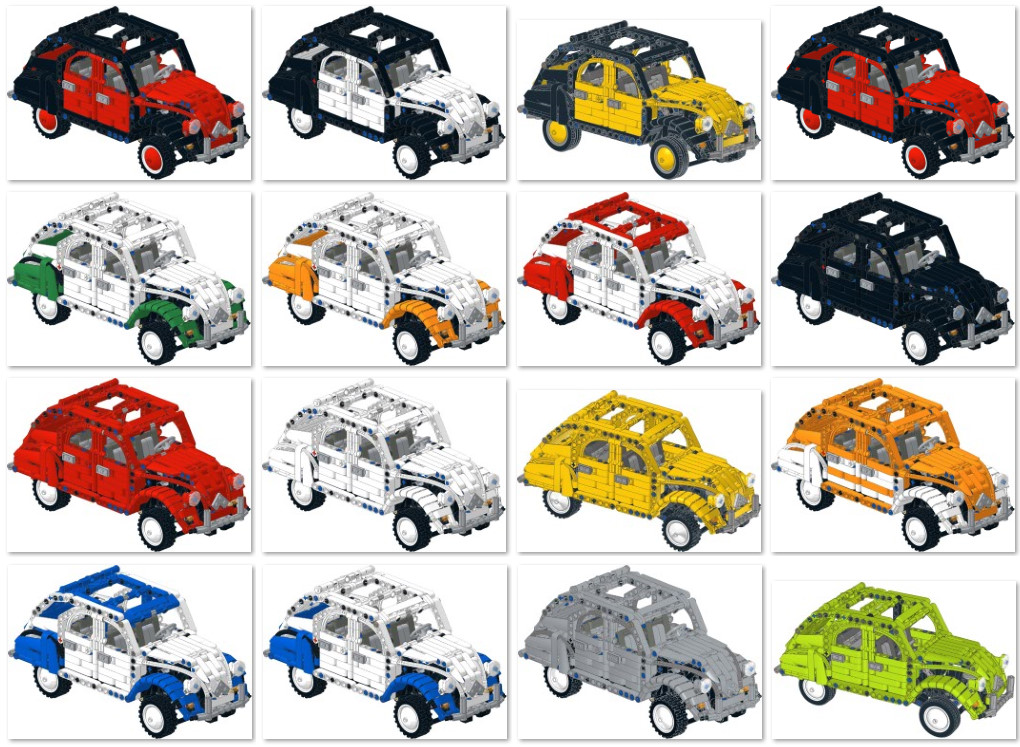

If you do not want to buy the whole package of parts plus instructions, you can only buy the building instructions. Either you have already the needed parts, or you can buy it by your own. I have made several version of the 2CV including plain color, charleston and dolly, but I add more as soon as new parts are released by Lego, so have a look below to all the available version. You can check the inventory for each version :

I have made different instructions for the different versions of the Citroen 2CV to avoid ambiguity, plus that some elements are composed of different parts regarding the color availability (the case for the spot and green version).

You can also buy other building instructions and get an automated discount. You will get 15% off for 2 PDF, and 20% off for 3 PDF on the total), available for all the instructions for sale on nico71.fr.

After your payment, you will be redirected to a page for downloading your instructions, and will receive also the link to download by email. Please check the spam box and be patient to receive it. If you have trouble to download your copy of the PDF after payment or open the document, do not make a paypal dispute, please contact me using the contact form. The link to download the instructions expires within 24h. Contact me if you have lost your instructions. Note that you can print it, but not copy or distribute. Thank you for supporting my work 🙂

Here is some preview of the building instructions :

Citroen 2CV Dolly White/Red

2CV_dolly_Blanc_Rouge2_page_0



Citroen 2CV Dolly White/Blue

Dolly_Blanc_Bleu_page_0



Citroen 2CV Dolly White/Blue with roof

Dolly_Blanc_Bleu_capot_bleu_page_0



Citroen 2CV Dolly White/Green

Dolly_Blanc_vert_page_0



Citroen 2CV Dolly White/Orange

Dolly_blanc_orange_page_0



Citroen 2CV Plain White

2Cv_Blanc_page_0

7.50€ – Citroen 2CV Plain White PDF Excluding 20% tax



Citroen 2CV Plain Red

2CV_red_page_0

7.50€ – Citroen 2CV Plain Red PDF Excluding 20% tax



Citroen 2CV Plain Black

2CV_black_page_0

7.50€ – Citroen 2CV Plain Black PDF Excluding 20% tax

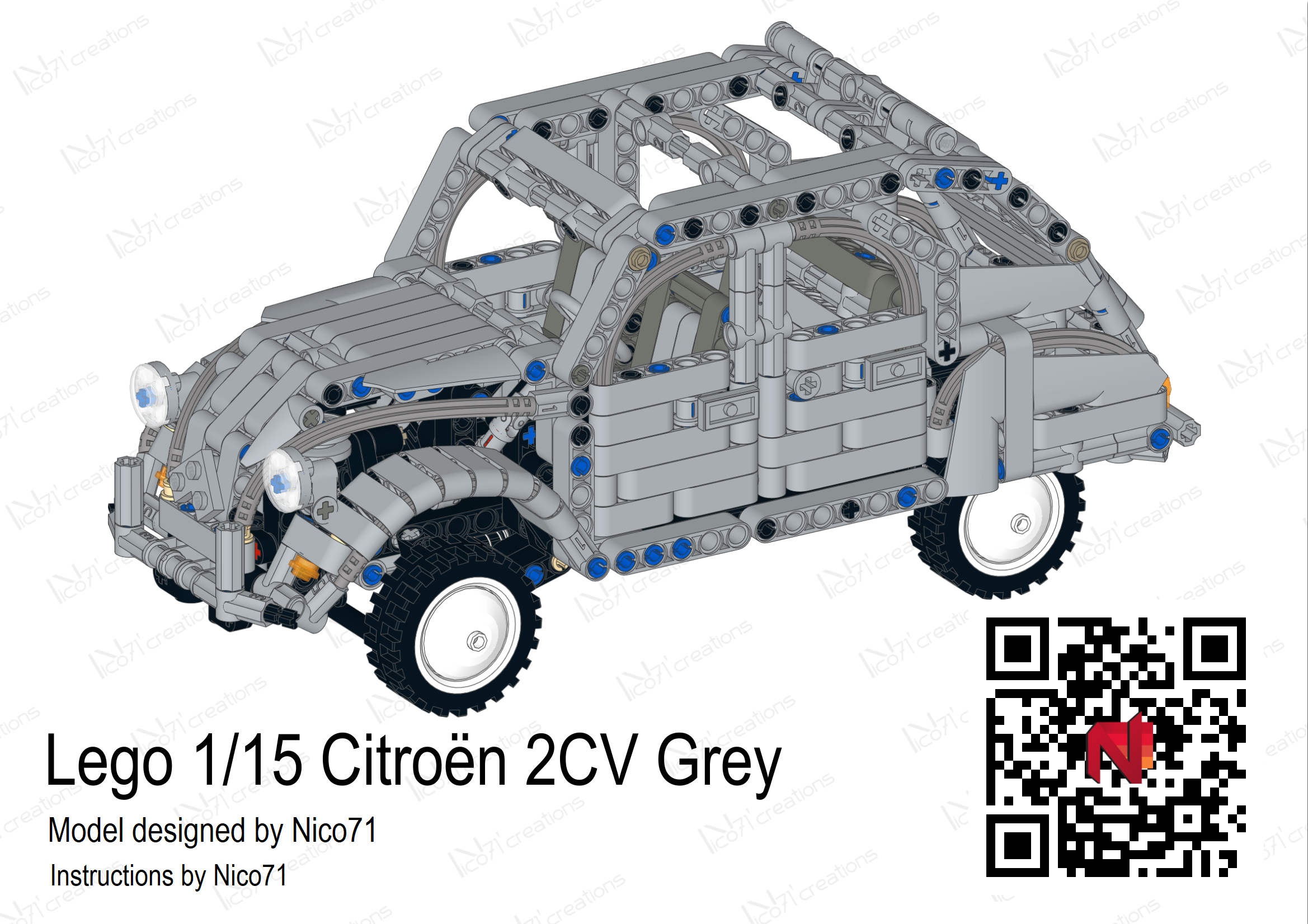

Citroen 2CV Plain Grey

7.50€ – Citroen 2CV Plain Grey PDF Excluding 20% tax



Citroen 2CV Yellow

7.50€ – Citroen 2CV Yellow PDF Excluding 20% tax



Citroen 2CV Lime



7.50€ – Citroen 2CV Lime PDF Excluding 20% tax

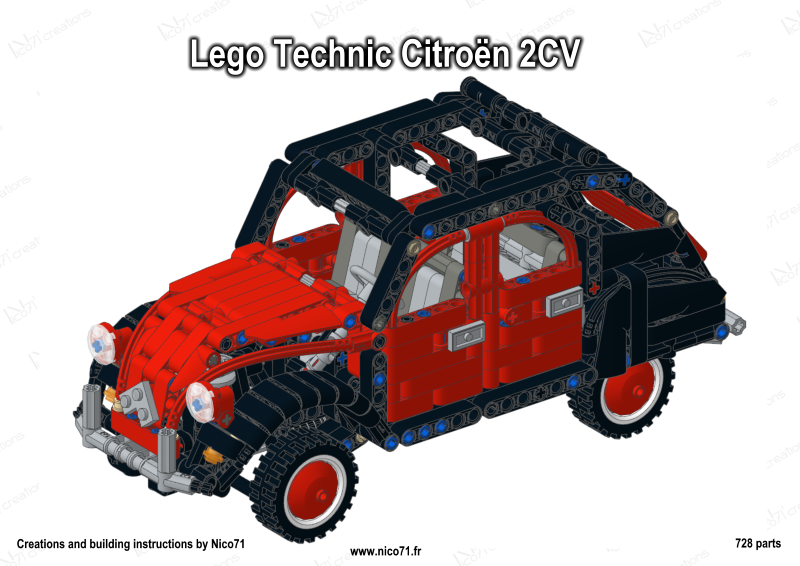

Citroen 2CV Charleston Black/Red

2CV_charleston_noir_rouge_page_0



Citroen 2CV Charleston Black/White

2Cv_charleston_blanc_page_0



Citroen 2CV Charleston Black/Yellow



Citroen 2CV Spot Orange/White

2CV_SPOT_orange_page_0

7.50€ – Citroen 2CV Spot Orange PDF Excluding 20% tax
