A buggy I designed for the exhibition Fana’briques 2010. Features steering with steering wheel and HOG, fake engine, suspensions and lights. Incuding building instructions.

DSCF4936

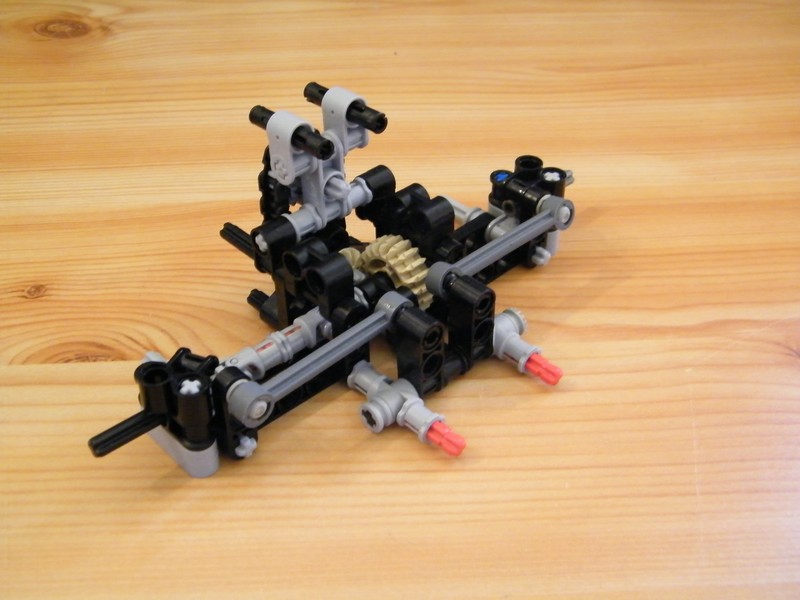

I decided to build this buggy because I would like to demonstrate the possibilities of Lego Technic at Fana’briques. It was a success, the spectators like it. It was built on a main frame composed of 3 parts : cab, front axle and rear axle. The front axle is equiped with the steering, a U-join enable the steering on the steering wheel. The HOG is placed behind the seat with a 12/20 gear. The fake engine is connected to the right wheel with 2 U-join, because I don’t have enought space to put a differential. The buggy has independent suspensions on all wheels. To finish, I equiped the buggy with the JrKit from eLite to give lights. The battery box is the small 2×4 brick placed on the left of the seat. The building instructions is available here.

The building instructions are available. You can watch them by browsing my website or

Download the Zip Archive of the Buggy’s instructions, 7 mo, ZIP.

Designed in 2010
