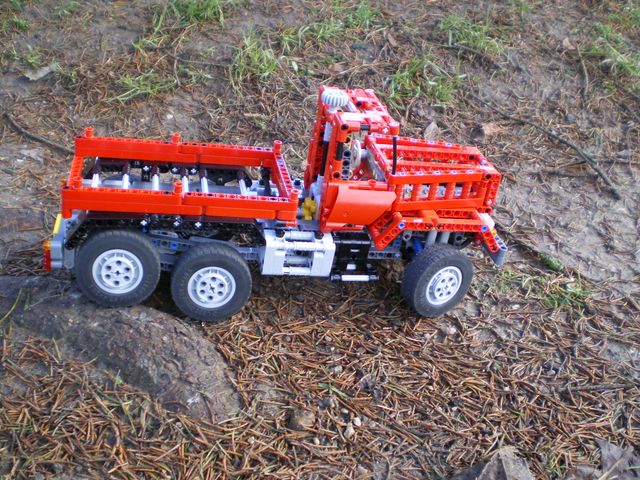

A military truck, no-motorized but equiped with full suspensions, V6 engine and steering.

IMGP2359

The truck is also equiped with a gearbox based on modified differential gear (to keep the 24t gear). Rear axle is connected to the gearbox with two U-join. Front suspensions are made with a classic double wishbone suspensions. Rear suspensions are made with a complex system of beam, liftarm and shock absorbers.  Basically the axle can rotate and translate but it’s restrained by the shock absorbers in this way. To finish, the doors can be opened.

Bricshelf gallery : http://www.brickshelf.com/cgi-bin/gallery.cgi?f=294363

Designed in 2007
